储存器和逻辑器件

Renesas FIFO 多队列流量控制器件是一种可为用户提供配置队列操作灵活性的完全可编程的器件。Renesas 多队列器件可通过采用排序流程来解决需求冲突问题，从而实现最佳的产品性能。多队列 FIFO 是一种单芯片解决方案，能够在 1 至 4 个离散 FIFO 队列之间进行设置。队列 FIFO 中可提供总线匹配，其中的任一端口均可采用 9 位、18 位或 36 位宽。

产品选型表

    Processing table
    Core Voltage (V)
    Bus Width (bits)
    Density (Kb)
    Pkg. Code
    Interface
    I/O Type
    I/O Frequency (MHz)
    Organization
    Temp. Range
    Architecture
    105°C Max. Case Temp.
    器件号

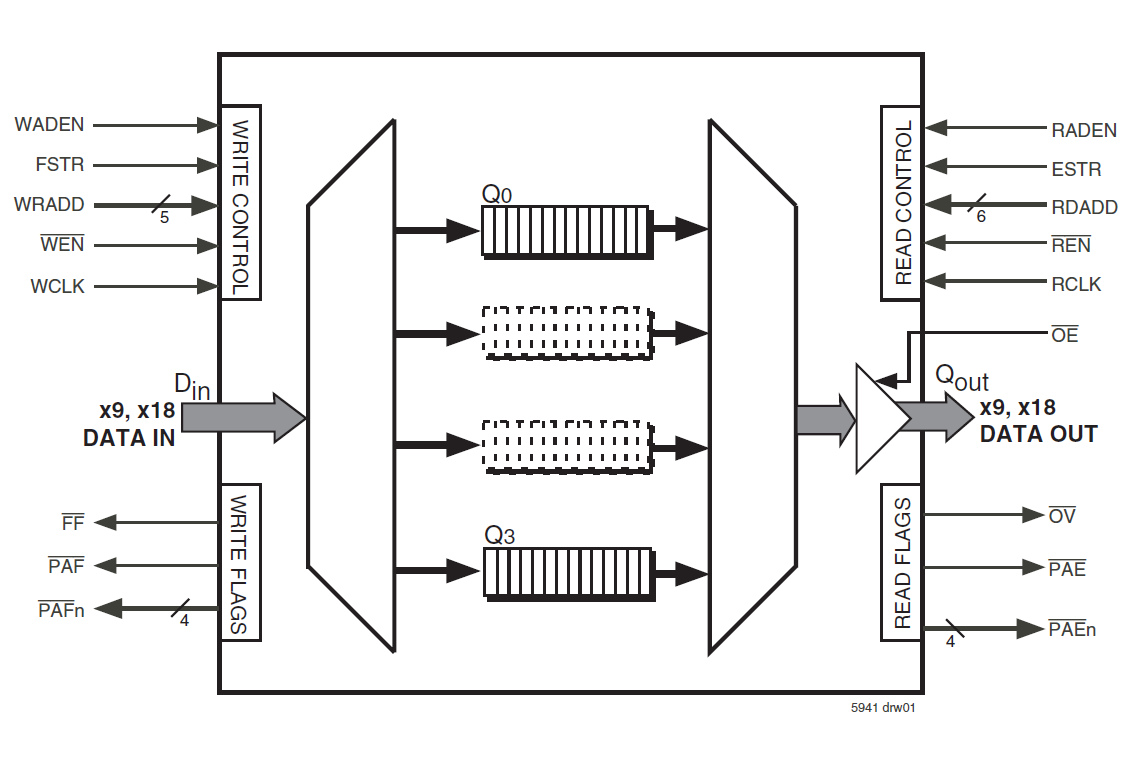

    72V51253
    4Q x18 2M Multi-Queue, 3.3V    		 3.3 18 2048 BB256, BBG256 Synchronous 3.3 V LVTTL 166, 133 32K x 18 x 4, 64K x 9 x 4 0 to 70°C Multi-Queue

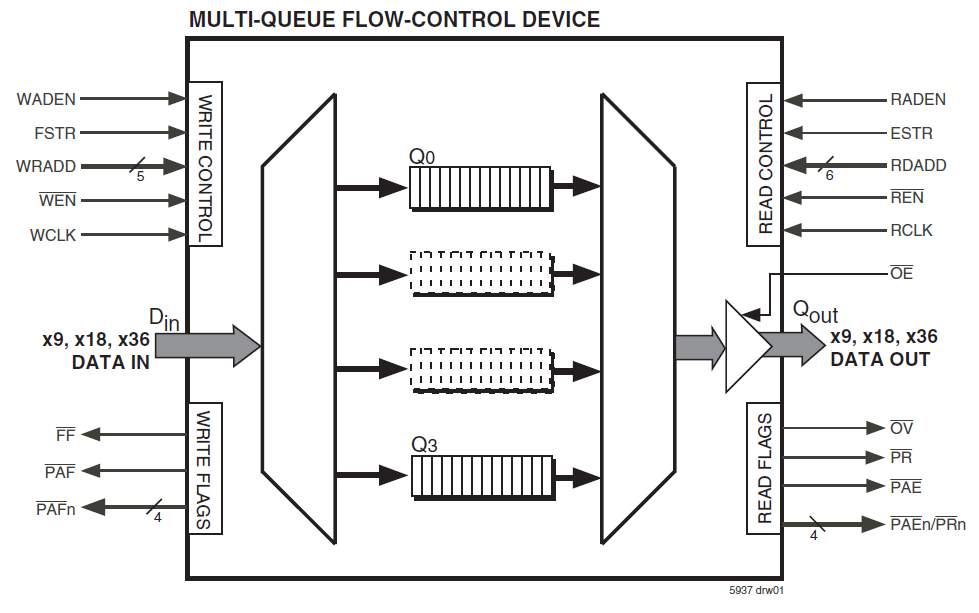

    72V51256
    4Q x36 2M Multi-Queue, 3.3V    		 3.3 36 2048 BB256 Synchronous 3.3 V LVTTL 166, 133 16K x 36 x 4 0 to 70°C Multi-Queue

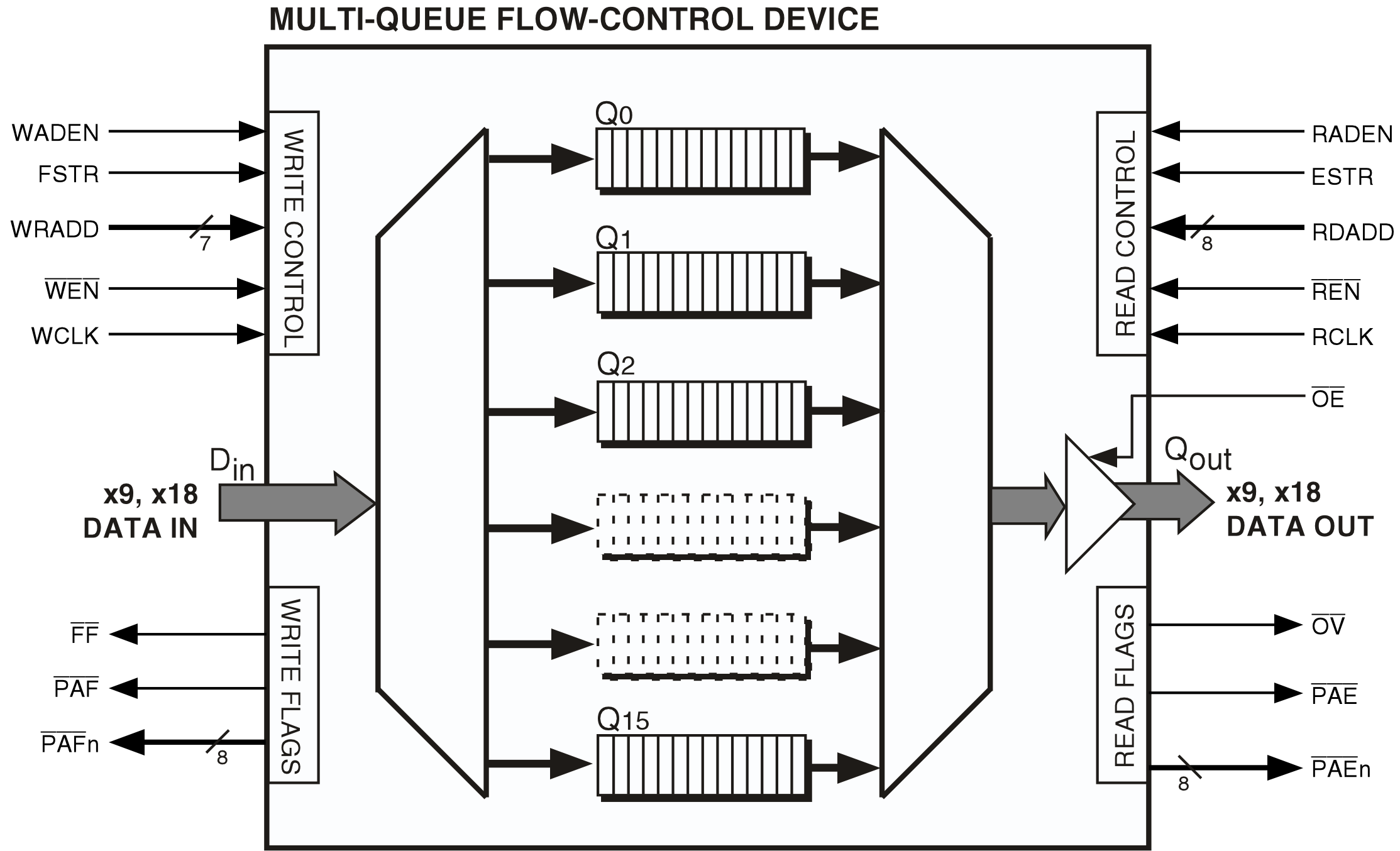

    72V51443
    16Q x18 1M Multi-Queue, 3.3V    		 3.3 18 1024 BB256 Synchronous 3.3 V LVTTL 166, 133 4K x 18 x 16, 8K x 9 x 16 0 to 70°C Multi-Queue
    72V51446
    16Q x36 1M Multi-Queue, 3.3V    		 3.3 36 1024 BB256 Synchronous 3.3 V LVTTL 166, 133 2K x 36 x 16 0 to 70°C Multi-Queue

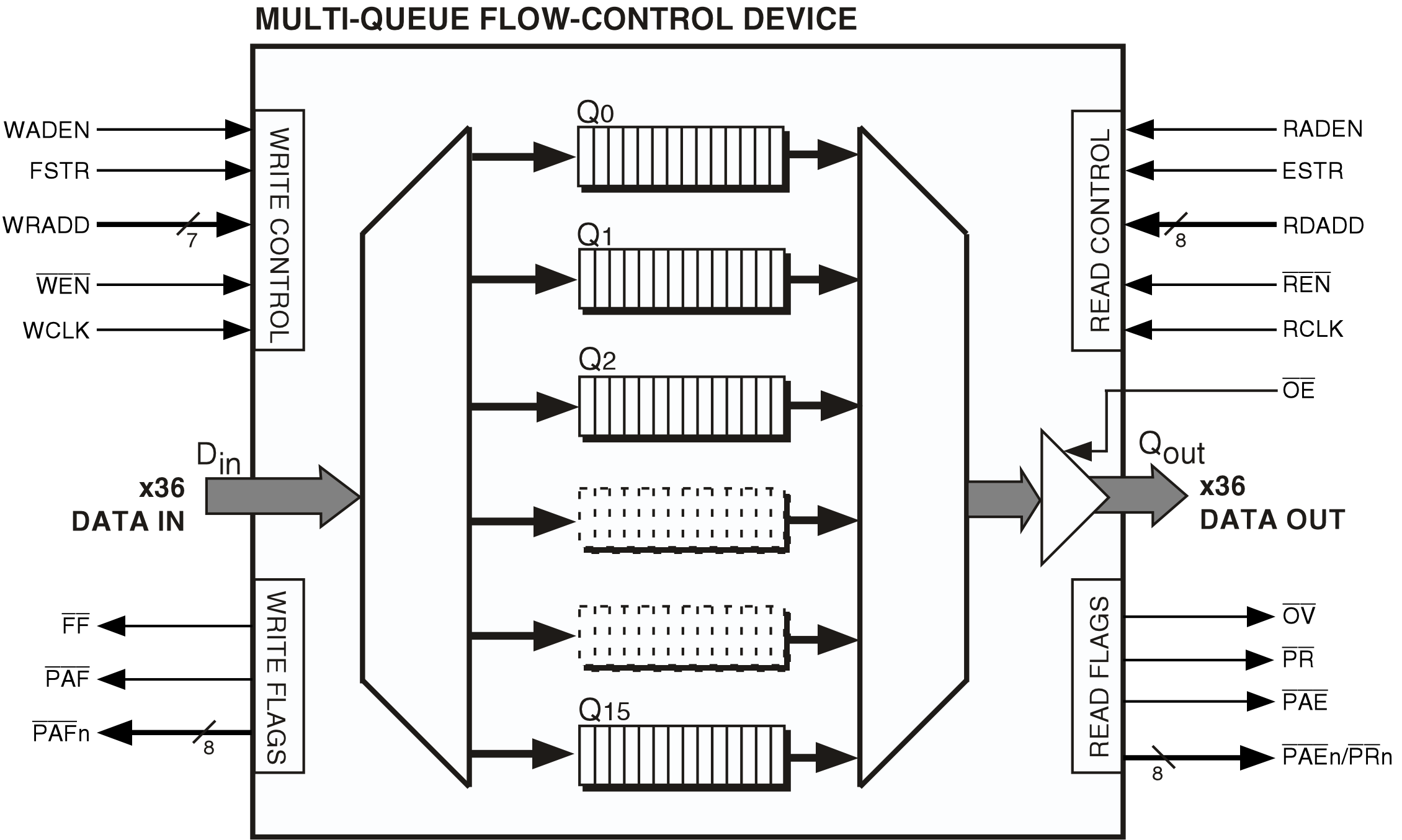

    72V51456
    16Q x36 2M Multi-Queue, 3.3V    		 3.3 36 2048 BB256 Synchronous 3.3 V LVTTL 166, 133 4K x 36 x 16 0 to 70°C Multi-Queue
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    		类型 日期
    IDT Specialty Memory Products Overview
    PDF 890 KB     		概览
    Best In Class FIFO Products
    PDF 1.82 MB     		概览
    IDT FIFO Products Package and Ordering Information
    PDF 97 KB     		指南
    3 items

    工具集资源

    FIFO Product FAQs
