概览

The ZL2102DEMO1Z demonstration platform allows for a quick evaluation of the highly configurable ZL2102 digital power regulator's performance and features in either stand-alone mode or via the SMBus™ interface using Renesas' PowerNavigator GUI software.

The ZL2102 is an innovative power conversion and management IC that combines an integrated synchronous step-down DC/DC converter with key power and fault management functions in a small package, resulting in a flexible and integrated solution.

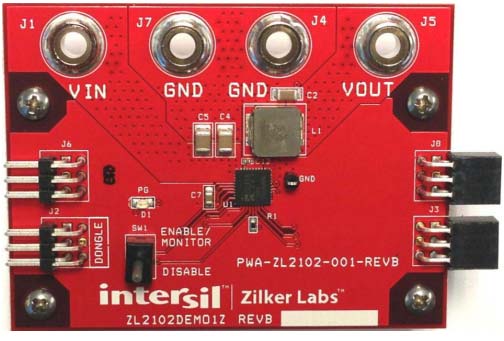

ZL2102DEMO1Z Digital Power Regulator Demonstration Board Top

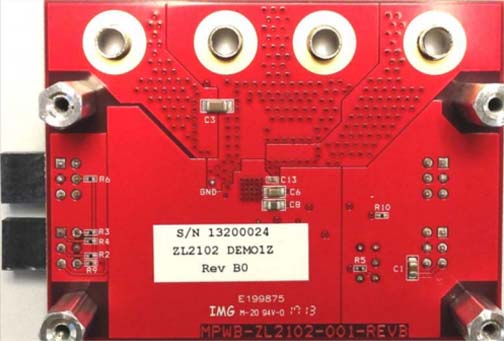

ZL2102DEMO1Z Digital Power Regulator Demonstration Board Back
ZL2102DEMO1Z Digital Power Regulator Demonstration Board Top
ZL2102DEMO1Z Digital Power Regulator Demonstration Board Back
  • Small, compact design
  • SMBus™ control interface
  • VIN range of 7.5V to 14V
  • VOUT adjustable from 0.6V to 3.6V
  • Convenient power connection
  • On-board enable switch
  • Power-good indicator
  • Interconnectivity with other Renesas demo boards

应用

  • Servers/Storage equipment
  • Telecom/Datacom equipment
  • Power supplies (memory, DSP, ASIC, FPGA)
文档标题 分类 购买/样片
ZL21026A Digital Integrated Synchronous Step-Down DC/DC Regulator with Auto Compensation
ZL2102 Datasheet
 Buck Regulators (Integrated FETs) 购买/报价

文档

文档标题 类型 日期
ZL2102DEMO1Z User Guide
PDF949 KB
手册 - 开发工具
ZL2102 Datasheet
PDF2.49 MB
数据手册
PowerNavigator User Guide for POL
PDF4.68 MB
指南
Production Configuration Utility User Guide
PDF714 KB
指南

设计和开发

软件与工具

PowerNavigator SoftwareRenesas' PowerNavigator™ software allows simple configuration and monitoring of multiple Digital-DC devices using a PC with a USB interface.下载:
Production Configuration Utility User GuideProduction Configuration Utility v5.4.139PowerNavigator™ Software v5.4.139PowerNavigator User Guide for POL
 Monitor Debugger/RAM Monitor 瑞萨电子

软件下载

文档标题 类型 日期
ZL2102DEMO1Z Design Files
ZIP3.26 MB
PCB设计文档
Production Configuration Utility v5.4.139
ZIP120.25 MB
软件和工具 - 其他
PowerNavigator™ Software v5.4.139
ZIP96.49 MB
软件和工具 - 软件
