Space & Harsh Environment

Renesas' radiation hardened switching regulator portfolio consists of radiation and single event effects (SEE) tolerant and radiation and SEE hardened high-efficiency synchronous buck regulators with integrated MOSFETs.

产品选型表

    Processing table
    Outputs (#)
    Topology [Rail 1]
    Input Voltage (Min) [Rail 1] (V)
    Input Voltage (Max) [Rail 1] (V)
    Output Voltage (Min) [Rail 1] (V)
    Output Voltage (Max) [Rail 1] (V)
    Output Current (Max) [Rail 1] (A)
    IQ [Rail 1] (µA)
    Topology [Rail 2]
    Input Voltage (Min) [Rail 2] (V)
    Input Voltage (Max) [Rail 2] (V)
    Output Voltage (Min) [Rail 2] (V)
    Output Voltage (Max) [Rail 2] (V)
    Output Current (Max) [Rail 2] (A)
    IQ [Rail 2]
    Switching Frequency (MHz)
    Duty Cycle (%)
    Peak Efficiency (%)
    POR
    SYNCH Capability
    Control Type
    High Dose Rate (HDR) (krad (Si))
    Low Dose Rate (LDR) (krad (Si))
    DSEE (SEL, SEB, etc.) (MeV*cm2/mg)
    Lead Count (#)
    Pkg. Type
    Temp. Range
    DLA SMD
    Qualification Level
    器件号

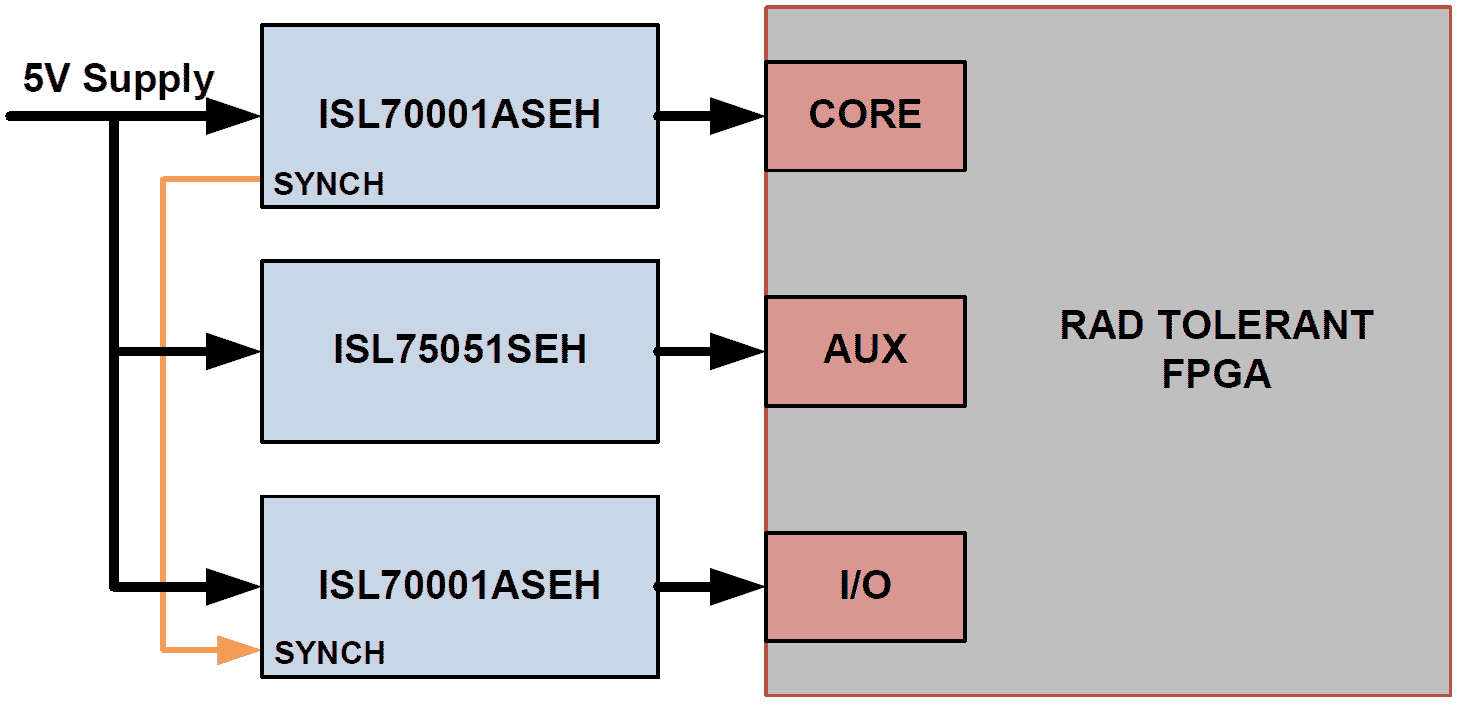

    ISL70001ASEH
    Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator    		 1 Buck 3 5.5 0.6 4.675 6 2000 1 90 94 是的 是的 Current Mode 100 100 86.4 48 CQFP, DIE -55 to 125°C 5962R0922503V9A, 5962R0922503VXC, 5962R0922503VYC PROTO, QML Class V (space)
    ISL70001SEH
    Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator    		 1 Buck 3 5.5 0.6 4.675 6 2000 1 90 94 是的 是的 Current Mode 100 50 86.4 48 CQFP, DIE -55 to 125°C 5962R0922502VXC, 5962R0922502VYC PROTO, QML Class V (space)
    ISL70001SRH
    Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator with Integrated MOSFETs    		 1 Buck 3 5.5 0.6 4.675 6 2000 1 90 94 是的 是的 Current Mode 100 86.4 48 CQFP, DIE -55 to 125°C 5962R0922501QXC, 5962R0922501V9A, 5962R0922501VXC PROTO, QML Class Q (military), QML Class V (space)
    ISL70002SEH
    Radiation Hardened and SEE Hardened 22A Synchronous Buck Regulator with Current Sharing    		 1 Buck 3 6.2 0.6 4.675 22 2500 0.5 - 1 90 92 是的 是的 Current Mode 100 100 86.4 64 CQFP, DIE -55 to 125°C 5962R1220201VXC, 5962R1220201VYC PROTO, QML Class V (space)
    ISL70003ASEH
    Radiation and SEE Tolerant 3V to 13.2V, 9A Buck Regulator    		 1 Buck 3 13.2 0.6 11.88 9 10000 0.3 - 0.5 88 95 是的 是的 Voltage Mode 100 100 86.4 64 CQFP, DIE -55 to 125°C 5962R1420302V9A, 5962R1420302VYC PROTO, QML Class V (space)
    ISL70005SEH
    Radiation Hardened Dual Output Point-of-Load, Integrated Synchronous Buck and Low Dropout Regulator    		 2 Buck 3 5.5 0.6 4.675 3 600 LDO 0.775 5.5 0.6 4 1 450 0.1 - 1 85 94 是的 是的 Voltage Mode 100 75 86.4 28 CFP, DIE -55 to 125°C 5962R1920901V9A, 5962R1920901VXC PROTO, QML Class V (space)
    ISL73002SEH
    Radiation Hardened and SEE Hardened 22A Synchronous Buck Regulator with Current Sharing    		 1 Buck 3 6.2 0.6 4.675 22 2500 0.5 - 1 90 92 是的 是的 Current Mode 100 100 86.4 64 CQFP, DIE 5962R1220201VXC, 5962R1220201VYC PROTO, QML Class V (space)
    ISL73005SEH
    Radiation Hardened Dual Output Point-of-Load, Integrated Synchronous Buck and Low Dropout Regulator    		 2 Buck 3 5.5 0.6 4.675 3 600 LDO 0.775 5.5 0.6 4 1 450 0.1 - 1 85 94 是的 是的 Voltage Mode 75 86.4 28 CFP -55 to 125°C 5962L1920902V9A, 5962L1920902VXC QML Class V (space)
    ISL73007SEH
    Rad Hard Small Form Factor 3A Point of Load Regulator    		 1 Buck 3 18 0.6 16 3 42 0.3 - 1 90 95 是的 否 Current Mode 75 86.4 14 CFP QML Class V Equivalent (space)
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    类型     		日期
    Intersil Commercial Lab Services
    PDF 467 KB     		手册
    Intersil Space Products Brochure
    PDF 4.85 MB     		手册
    Radiation Hardened Load Switches Simplify Redundancy and Increase Reliability in Space Grade Power Systems
    PDF 522 KB     		白皮书
    Using a Rad Hard Switching Regulator as a VTT Terminator in DDR Apps
    PDF 254 KB     		白皮书
    TB515: High Power High Temperature Operating Life (HTOL) at High Currents
    PDF 296 KB     		技术摘要
    TB499: PCB Thermal Land Design for Ceramic Packages with Bottom Metal or Heat Sinks
    PDF 410 KB     		技术摘要
    AN1947: Intersil's Radiation Hardened Low Power FPGA Power Solutions
    PDF 304 KB     		应用文档
    AN9867: End of Life Derating: A Necessity or Overkill
    PDF 338 KB     		应用文档
    8 items

    下载

    文档标题
    		类型 日期
    iSim:PE Software v8.50
    EXE 138.65 MB     		软件和工具 - 软件
    1 item
