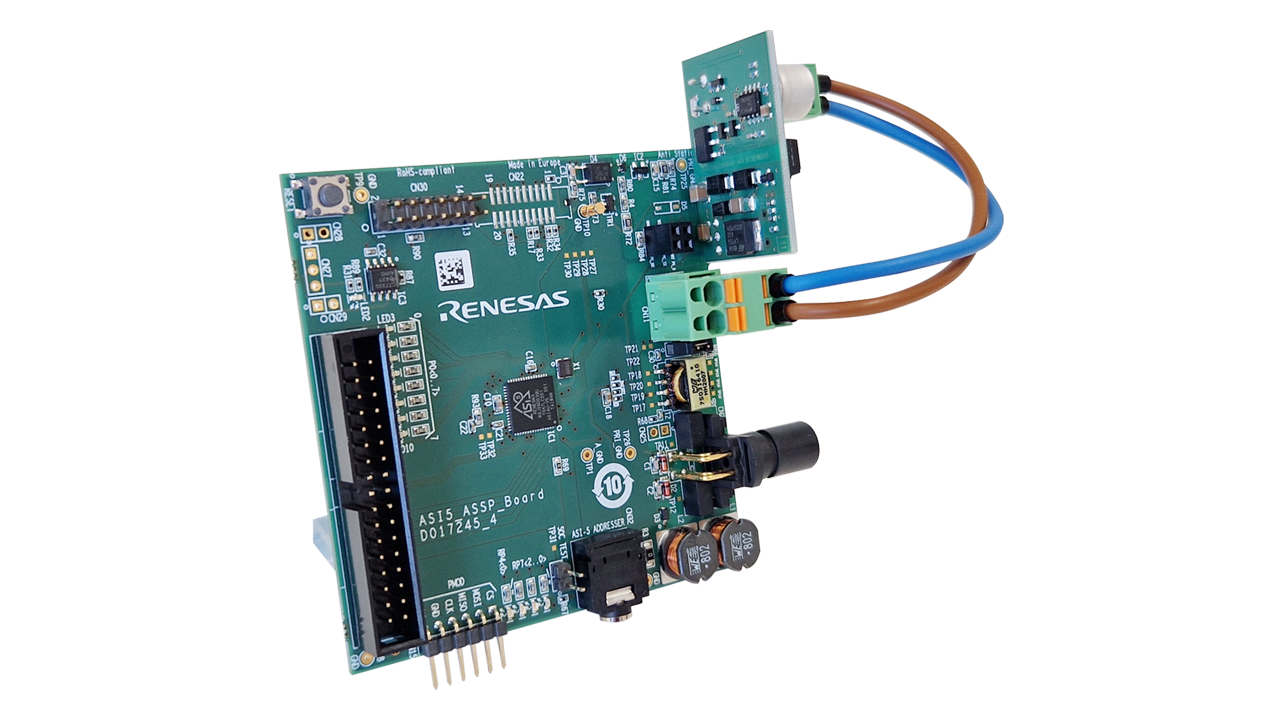

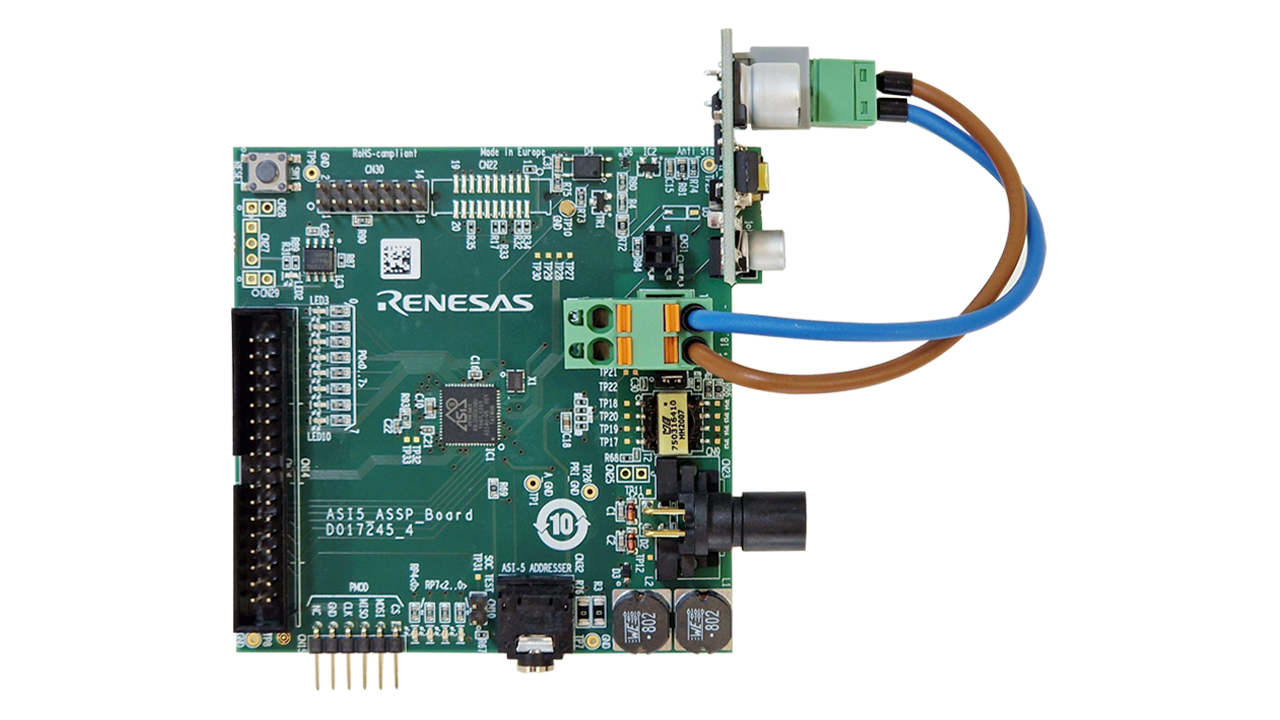

The ASI4U-V5-EVB-V1P0 is a development board for the ASI4U-V5 ASSP Renesas silicon solution that implements an Actuator-Sensor-Interface version 5 (ASi-5) fieldbus transceiver. It reduces the integration effort of an ASi-5 interface to a minimum. The implementation of the complex transmission process is optimally distributed between hardware and firmware components.

特性

  • Silicon solution implementing an ASi-5 transceiver
  • ASi-5 supports the integration of up to 96 devices, operation down to 1.27 ms cycle time and up to 200-meter cable length.
  • Up to 32 bytes of cyclic data per device.
  • Diagnostics and event handling for industry 4.0 applications
  • Backwards compatibility with ASi-3 devices
  • Exceptional robustness against electromagnetic disturbers
  • Supports simple slave and complex slave applications
  • Operating temperature: -40°C to +85°C
  • Supply voltages: 5V & 3.3V
