概述
描述

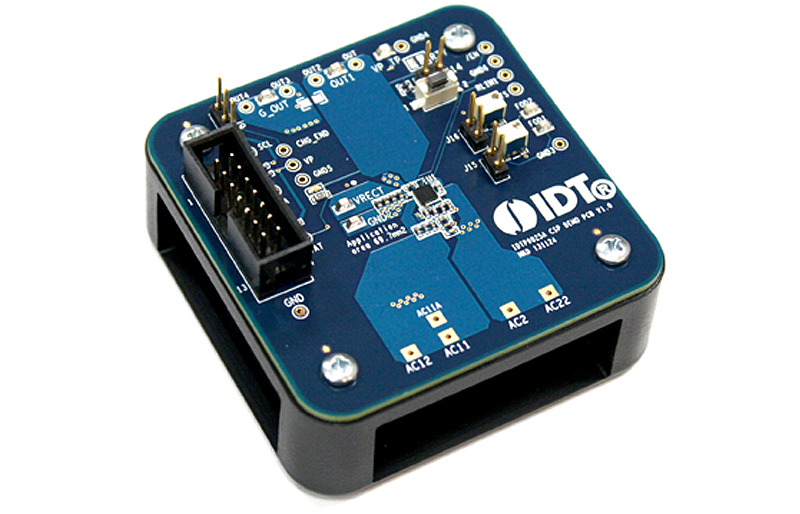

The P9025A “CSP” evaluation board serves to demonstrate the features and performance of the P9025A Wireless Power Receiver solution for Mobile Device with RX-A Coil. The intuitive top-level layout and control simplifies the user experience to emphasize the impressive level of integration and abundance of useful features that this device offers.
The device is powered by a 1mm thick RX-A type receiver coil attached to a 2mm thick plastic fixture. The P9025A is pre-programmed with a standard start-up program that is controlled by an internal state machine when the board is placed upon a WPC “Qi” type transmitter such as the P9035A TX-A11 EVKIT.
The core layout is a 4-layer Cadence Allegro reference design that can be copied and integrated into a larger system design. The application area is enclosed in the white silkscreen to show the possible small PCB layout in an end system.
The device is powered by a 1mm thick RX-A type receiver coil attached to a 2mm thick plastic fixture. The P9025A is pre-programmed with a standard start-up program that is controlled by an internal state machine when the board is placed upon a WPC “Qi” type transmitter such as the P9035A TX-A11 EVKIT.
The core layout is a 4-layer Cadence Allegro reference design that can be copied and integrated into a larger system design. The application area is enclosed in the white silkscreen to show the possible small PCB layout in an end system.
特性
- P9025A CSP Evaluation Design Module with 1mm RX-A coil
- 4-layer PCB with 1 oz. copper traces
- Fully assembled with test points and coil fixture
- I2C Connector
- LED status indicator
- 5W or lower output power RLIM potentiometer setting
应用
产品选项
| Part Number | Status | Stock | Sampleable | Pb (Lead) Free |
|---|---|---|---|---|
| P9025A-EVK | Obsolete | Out of Stock | N/A | No |
