概览
描述
RTKA2P3226S00000BE 非接触式电感式位置传感器评估套件专为评估旋转传感器性能而设计。 该套件包含用于产品配置的软件，其图形用户界面 (GUI) 可轻松安装。 通信板可无缝连接至 PC 端，实现快速设置与评估。
RTKA2P3226S00000BE 套件采用 RAA2P3226 无磁电感式位置传感器 IC，配备双线圈传感元件，专为工业场景中的绝对旋转、线性或弧形位置感测而设计。

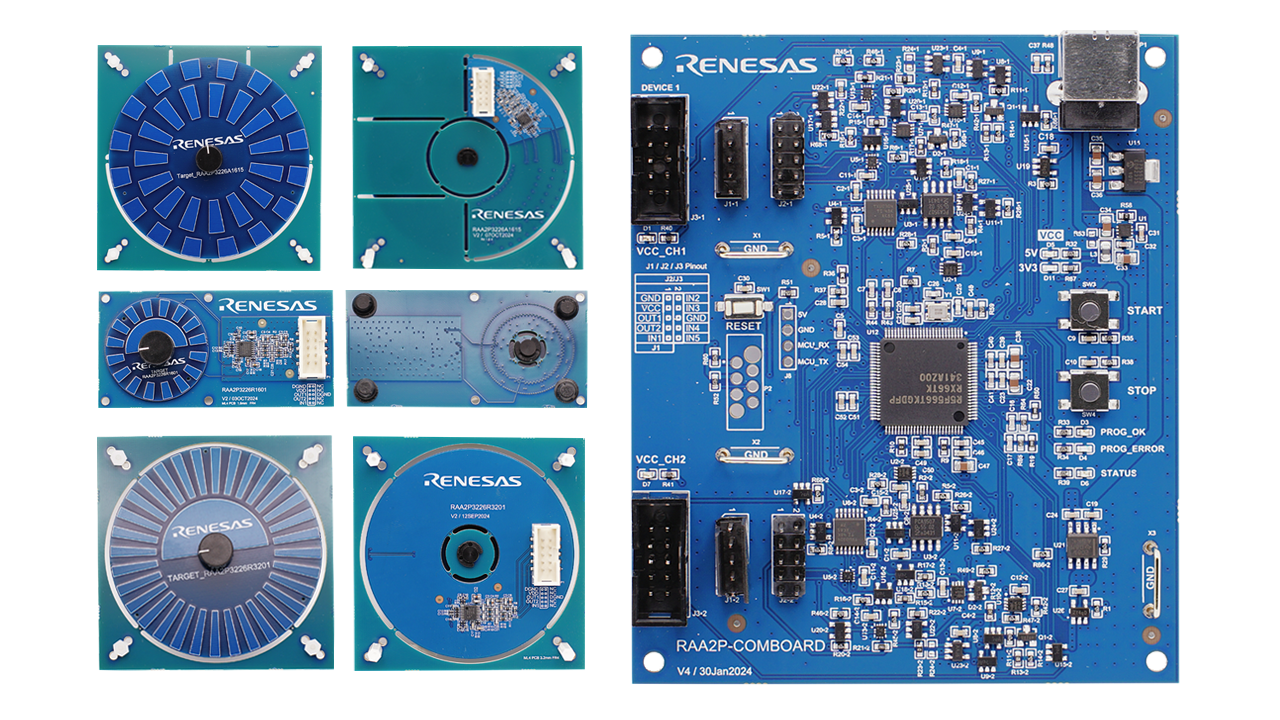

RTKA2P3226S00000BE评估套件包括 RAA2P-COMBOARD 通信板、RAA2P3226A1615（高精度、18 位分辨率、89mm 半径绝对侧轴弧度编码器设计）、RAA2P3226R3201（高精度、19 位分辨率、72mm 直径、绝对编码器设计）、RAA2P3226R1601（高精度、18 位分辨率、34mm 直径、绝对编码器设计）、USB-B 电缆和两根接口电缆。
特性
- 适用于工业场景的高速高精度非接触式绝对位置感测套件
- 可配置 IC，支持 UART、ABI、I2C 及步进/方向接口
- 适用于 3.3V 或 5.0V 场景
应用
- 适用于高速高精度工业场景
- 光学编码器替代方案
- 磁编码器替代方案
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 快速入门指南 |
PDF
675 KB
The RTKA2P3226S00000BE is a Renesas evaluation kit designed to help users quickly evaluate and familiarize themselves with the RAA2P3226 inductive position sensor. It includes a communication board and three high-speed sensor modules, designed to detect rotary movements with high accuracy and resolution. This quick start guide outlines essential steps to set up and operate the hardware efficiently.
|
|
| 手册 - 硬件 | RAA2P3226 Programming Manual
The RAA2P3226 is a high-speed, dual-channel inductive position sensor designed for rotary and linear motion detection in industrial and robotic applications. This document describes the necessary steps to set up, program, and calibrate the sensor.
|
|
| 快速入门指南 | IPS RAA2Pxxxx Evaluation Software Quick Start Guide
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This document outlines the procedures for configuring and operating the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| PCB 设计文件 | RAA2P3226A1615 Design Files
The RAA2P3226A1615 is an arc reference design from Renesas, based on the RAA2P3226 inductive position sensor, capable of performing absolute position sensing over 360°. This package contains the Gerber design files, which can be imported into your PCB layout.
|
|
| PCB 设计文件 | RAA2P3226R1601 Design Files
The RAA2P3226R1601, featuring 18-bit resolution, is a rotary reference design from Renesas, based on the RAA2P3226 inductive position sensor. This package contains the Gerber design files, which can be imported into your PCB layout.
|
|
| PCB 设计文件 | RAA2P3226R3201 Design Files
The RAA2P3226R3201, featuring 19-bit resolution, is a rotary reference design from Renesas, based on the RAA2P3226 inductive position sensor. This package contains the Gerber design files, which can be imported into your PCB layout.
|
|
| 报告 |
PDF
1.44 MB
The RAA2P3226R3201, featuring 19-bit resolution, is a Renesas rotary reference design based on the RAA2P3226 inductive position sensor. This measurement report outlines the sensor coil design's performance and presents the corresponding measurement results.
|
|
| 报告 |
PDF
1.64 MB
The RAA2P3226A1615 is a Renesas ARC reference design based on the RAA2P3226 inductive position sensor, capable of performing absolute position sensing over 360°. This measurement report outlines the sensor coil design's performance and presents the corresponding measurement results.
|
|
| 报告 |
PDF
1.30 MB
The RAA2P3226R1601, featuring 18-bit resolution, is a Renesas rotary reference design based on the RAA2P3226 inductive position sensor. This measurement report outlines the sensor coil design's performance and presents the corresponding measurement results.
|
|
9 项目
|
||
设计和开发
软件与工具
软件下载
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 软件和工具 - 软件 | RAA2Pxxxx IPS Evaluation Software (GUI)
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package contains the necessary files to install and operate the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| 软件和工具 - 软件 | RAA2P3xxx/4xxx Python Code Example
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package provides Python code for communicating with the sensor and performing compensation and calibration using the Renesas RAA2P-COMBOARD, making it suitable for quick testbench setup and automated calibration.
|
|
| 软件和工具 - 软件 | Linearization Demo
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package includes sample code for calculating linearization points from simple measurements.
|
|
3 项目
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 | RAA2P3xxx RH850 Interface Code Example
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package offers ready-to-use sample code for seamless communication between Renesas RH850 32-bit automotive MCUs and RAA2P3xxx inductive position sensors, tailored to the selected interface.
|
|
1 项目
|
||
产品选项
| 器件号 | 状态 | 库存 | Requires Terms and Conditions | Sampleable |
|---|---|---|---|---|
| RTKA2P3226S00000BE | Active | 有库存 | Does not require acceptance of Terms and Conditions | Available |
