SSC Replacement Board

SSC-SRB

有效
立即订购

The SSC Replacement Board is included in Renesas' modular SSC Evaluation Kits for select resistive sensor signal conditioner (SSC) ICs. It simulates a variable sensor signal for the Evaluation Kit via an on-board potentiometer. It is an option that can be used for a dry-run or demonstration calibration while the user's sensor is in development.

特性

  • SSC Replacement Board

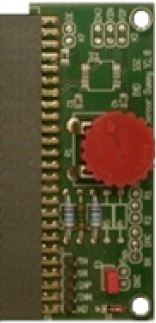

SSC-SENS-REPL-BD - Replacement Board (Top View)

试用样品与购买

SSC-SENS-REPL-BD - Replacement Board (Top View)

SSCSENSORREPBDV2P0

有效
1u | $21.83预算价格

附加硬件

与该平台兼容的附加板卡。为实现完整功能或评估特定功能，可能需要使用其中的部分板卡。
SSC-COMM-BD - Communication Board (Top View)

SSC Communication Board

SSC-CB 有效
Enable communication between a PC and sensor signal conditioner devices during evaluation and calibration. Designed to integrate seamlessly with modular SSC evaluation systems.
推荐文档：
SSC Communication Board V4.1 User Manual
SSC-MCB - Mass Calibration Board (Top View)

SSC Mass Calibration Board

SSC-MCB 有效
Support simultaneous configuration and calibration of multiple sensor signal conditioners. Designed to scale evaluation workflows for production‑oriented testing.
推荐文档：
SSC Mass Calibration Board (SSC-MCB) Manual
SSC Mass Calibration System Power Switch Board

SSC Mass Calibration System Power Switch Board

SSC-MCS-PSB 预览

The SSC Mass Calibration System Power Switch Board supports the SSC Mass Calibration Systems for the ZSC31010, ZSC31015, and ZSC31050 sensor signal conditioner (SSC) ICs (DUTs). It enables switching a power supply for the DUTs of up to 40VDC. It is ordered separately.

ZSC31010KIT - Evaluation Kit (Top View)

ZSC31010 Evaluation Kit

ZSC31010KIT 有效
Support configuration, calibration, and evaluation of ZSC31010 sensor signal conditioners. Modular hardware simplifies prototyping and early sensor integration.
推荐文档：
ZSC31010/ZSC31015/ZSSC3015 ZACwire™ SSC Modular Evaluation Kit Manual
ZSC31014KIT - Evaluation Kit (Top View)

ZSC31014 Evaluation Kit

ZSC31014KIT 有效
Evaluate and calibrate ZSC31014 sensor signal conditioners using a modular development platform. Designed to accelerate sensor integration.
推荐文档：
ZSC31014 Evaluation Kit Manual
ZSC31015KIT - Evaluation Kit (Top View)

ZSC31015 Evaluation Kit

ZSC31015KIT 有效
Enable configuration, calibration, and evaluation of ZSC31015 sensor signal conditioners. Modular setup supports rapid prototyping.
推荐文档：
ZSC31010/ZSC31015/ZSSC3015 ZACwire™ SSC Modular Evaluation Kit Manual
ZSC31050KIT - Evaluation Kit (Top View)

ZSC31050 Evaluation Kit

ZSC31050KIT 有效
Support configuration and evaluation of ZSC31050 sensor signal conditioners. Modular hardware accelerates sensor validation workflows.
推荐文档：
ZSC31050 Evaluation Kit Manual
ZSC31150KIT - Evaluation Kit (Top View)

ZSC31150 Evaluation Kit

ZSC31150KIT 有效
Evaluate and calibrate ZSC31150 sensor signal conditioners using a modular development platform.
推荐文档：
ZSC31150 Evaluation Kit Manual
ZSSC313x Evaluation Kit

Evaluation Kit for ZSSC313x

ZSSC313xKIT 有效

The ZSSC313xKIT Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSSC3131, ZSSC3135, ZSSC3136 and ZSSC3138 Sensor Signal Conditioner (SSC) IC. The user's PC can communicate with the ZSSC313x IC socketed on the ZSSC313x SSC Evaluation Board via the... 阅读详情

推荐文档：
ZSSC313x Evaluation Kit Description
ZSSC3170KIT Evaluation Kit (full view)

ZSSC3170 Evaluation Kit

ZSSC3170KIT 有效
Evaluate and calibrate ZSSC3170 sensor signal conditioner designs using a modular kit and PC-based software. Supports rapid setup using either a connected sensor or simulated signals for early development.
推荐文档：
ZSSC3170 Evaluation Kit Manual
