Y-COMMON-10BASE-T1S-NN

有效

Ethernet Extension Board for 10BASE-T1S (Single Pair Ethernet, without Ethernet PHY Transceivers)

立即订购
RH850, R-Car U5x User's Manual: Common Mainboard (Y-COMMON-MB-T1-V1) Rev. 3.01

概览

The Ethernet Extension Board for 10BASE-T1S (single pair Ethernet) can be used with the mainboard Y-COMMON-MB-T1-V1 of the common RH850 / R-Car MCU Evaluation Platform. Two Ethernet PHY transceivers in compatible SOP8- (5mm x 6mm) or (H)VSON8- (3mm x 3mm) 8-pin packages must be mounted by the user.  Please take care that the used MCU series piggyback board supports 10Base-T1S.

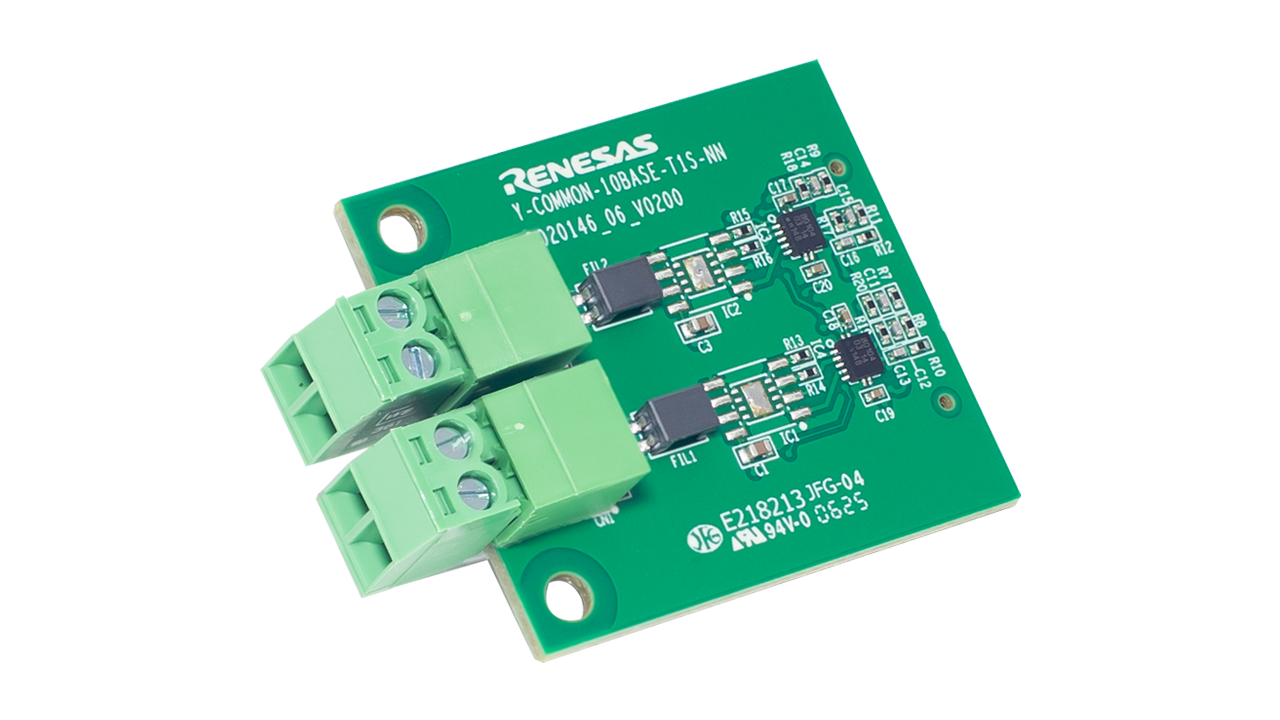

Y-RH850-10BASE-T1S-NN Evaluation Board

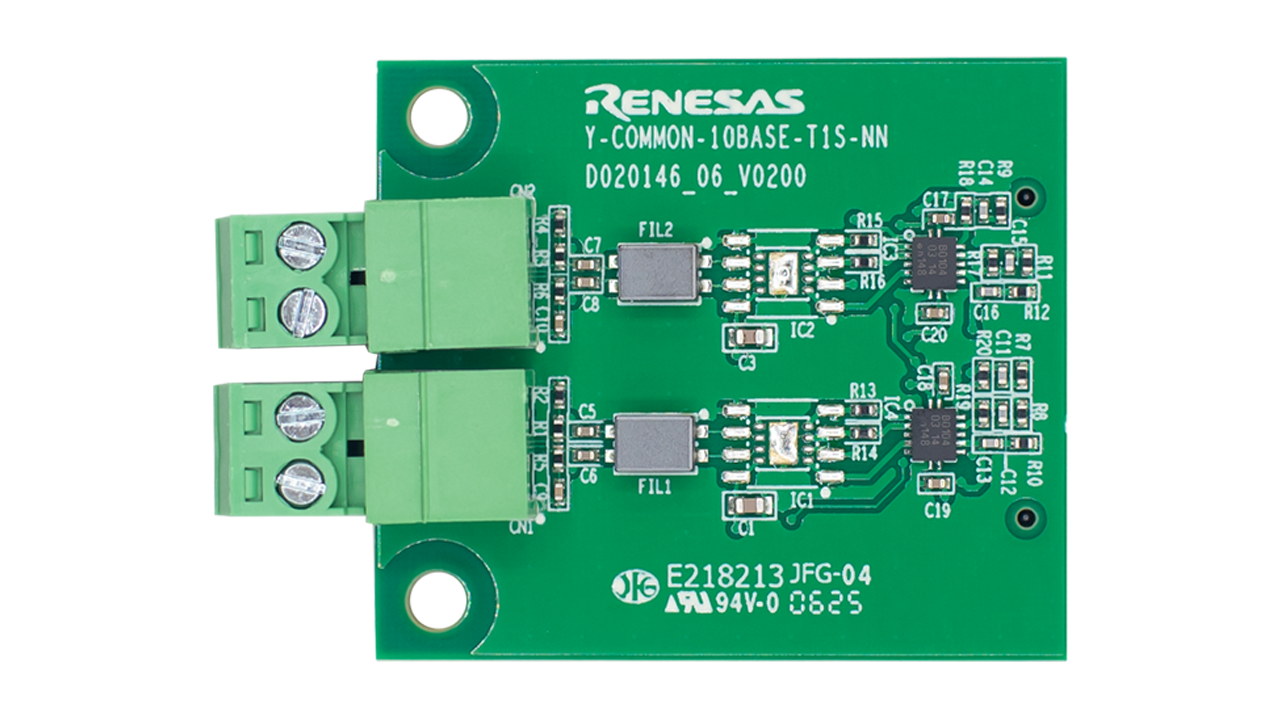

Y-RH850-10BASE-T1S-NN Evaluation Board - Top
Y-RH850-10BASE-T1S-NN Evaluation Board - Bottom
Y-RH850-10BASE-T1S-NN Evaluation Board
Y-RH850-10BASE-T1S-NN Evaluation Board - Top
Y-RH850-10BASE-T1S-NN Evaluation Board - Bottom
  • Ethernet extension board without 10BASE-T1S PHY transceiver for single pair Ethernet
