概述
描述

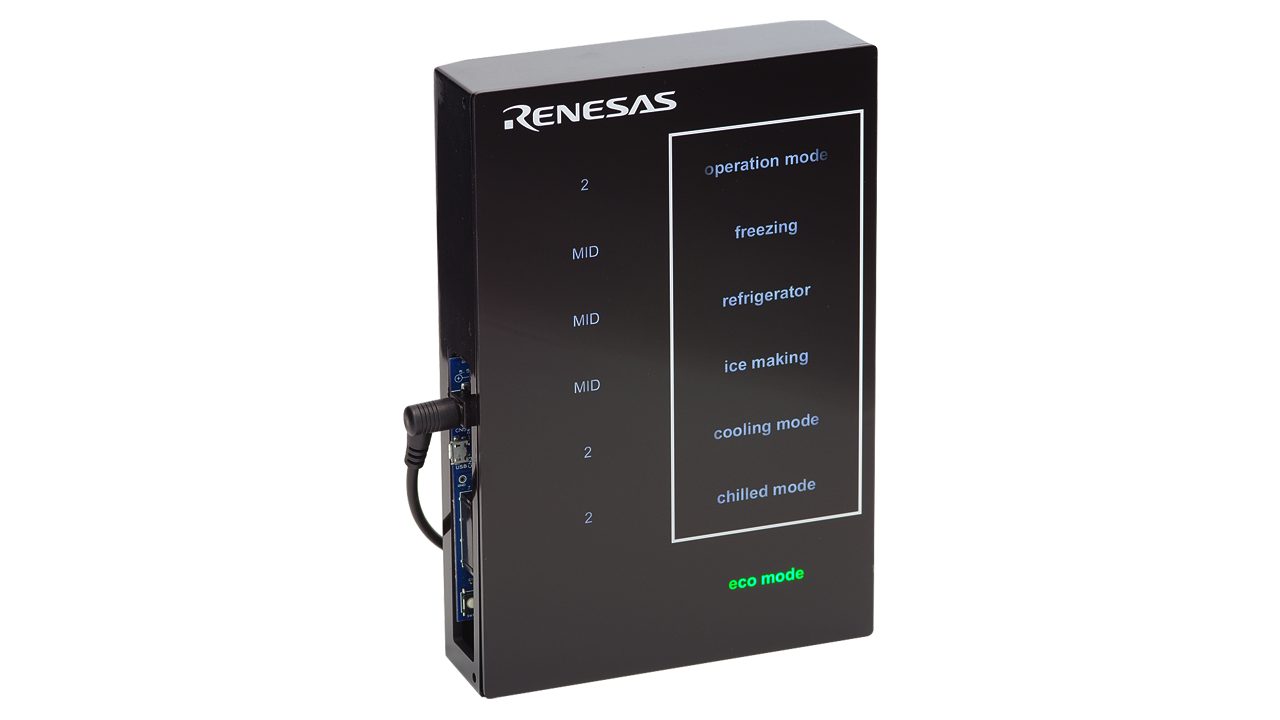

本参考设计介绍了一款基于 RL78/G22 及其电容式触摸传感单元（CTSU2La）的家用电器面板 UI 演示方案，旨在帮助评估低功耗电容式触摸界面。 该演示方案采用多电极连接（MEC）功能，将多个触摸电极输入的信号视为单一输入，从而能够以更少的扫描次数和更低的功耗实现高效的待机唤醒检测。 通过调整灵敏度，该方案同样支持接近式感应，因此适用于早期 UI 概念的评估和设计研究。
特性
- 采用 RL78/G22 MCU

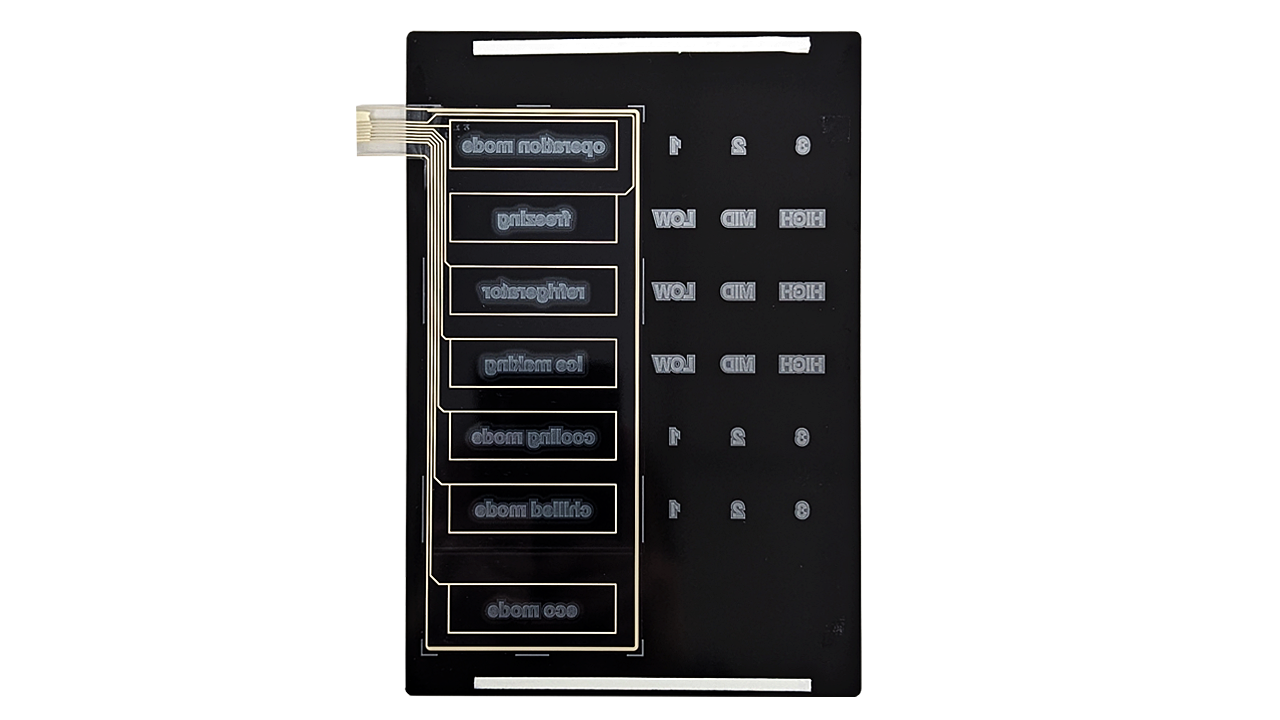

- 采用 RSSK-RL78G22 套件中的 RL78/G22 CPU 板，以及包含 7 个自电容式按钮和 25 个 LED 的电极板
- 前面板的同一电极既可作为触摸按钮，也可作为非接触式传感器
- MEC 功能支持通过单次测量对多个电极进行感应
- 通过 MEC 功能实现低功耗
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| PCB 设计文件 | Capacitive Touch Appliance UI Reference Design Files
Design files for the capacitive touch appliance UI reference design include the schematic, BOM, PCB layout files, and Gerber artwork—essential tools for enabling complete evaluation of IC and board functions.
|
|
| 手册 - 开发工具 |
PDF
923 KB
日本語
Offers excellent touch UI in both functionality and design through high‑sensitivity capacitive touch sensing and low-power operation.
|
|
| 应用说明 |
PDF
3.72 MB
日本語
AI 生成的摘要:
The document explains the Multiple Electrode Connection (MEC) function that treats multiple touch electrodes as a single electrode to reduce scanning time and power consumption. It demonstrates a home appliance UI with seven touch buttons, which operate independently in normal mode and combine into one electrode in standby mode using MEC. This allows waking the device from standby by touching any electrode. The document includes hardware configuration, sample software flowcharts, current consumption measurements, and design files such as schematics and BOM for the electrode board.
|
|
3 项目
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | 瑞萨电子 |
1 项目
|
||
样例程序
相关评估板和套件
开发板与套件
评估
RSSK-RL78G22
有效
RL78/G22 电容式触摸评估系统
RL78/G22 电容式触摸评估系统使用户能够轻松评估瑞萨电子提供的触摸解决方案。 您可以使用套件中的电路板和软件即刻开始评估，开箱即用。
产品配置
- RL78/G22 CPU 板
- 触摸应用板
- 内置电容式触摸的自电容式评估板基础知识：开关、滑块和滚轮
视频和培训
We will show an appliance UI demo using Capacitive Touch of RL78/G22.
The Capacitive Touch of RL78/G22, with high sensitivity and high noise immunity, enables well-designed user interface with good functionality and can be achieved with ultra-low current consumption.
