概览
描述

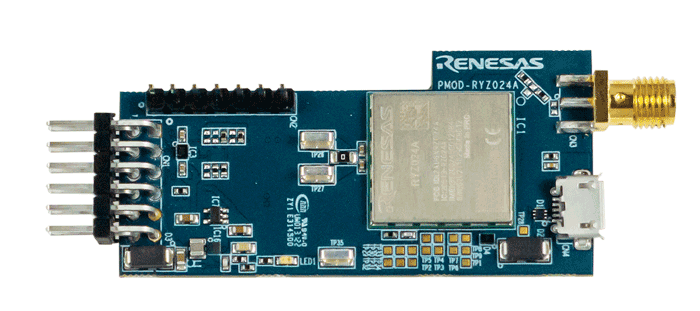

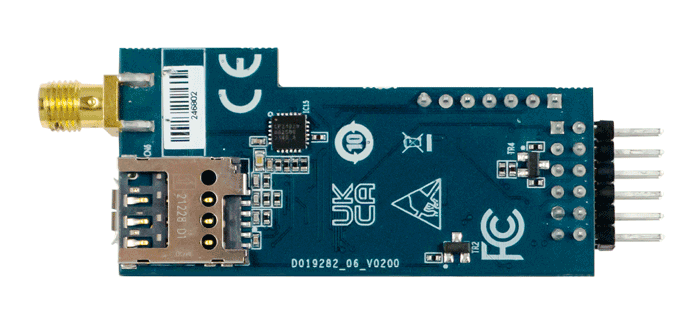

The PMOD Expansion Board for RYZ024A provides an entry point for the evaluation and development of the RYZ024A. The PMOD Expansion Board is an easy connection to Renesas MCU kits via the PMOD interface. And the PMOD Expansion Board can be controlled through the UART interface.
Product Contents
The following components are included.
- PMOD™ Expansion Board for RYZ024A
- LTE Antenna (Taoglas: GSA.8830.A.201111) (SMA Male termination)
- MVNO SIM Card
特性
- Wireless module
- o LTE Cat-M1 Cellular IoT Module RYZ024A (RYZ024A000FZ00#HD0)
- PMOD™ interface
- Easy connection to Renesas MCU kits via PMOD (UART)
- USB interface
- Can be used for various interfaces
- Antenna interface
- Can be used for various external antennas
- Control software
- Supported by the RA MCU family’s Flexible Software Package (FSP)
- Driver for RX MCUs available
应用
文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 应用笔记 | PDF 4.53 MB 日本語 | |
| 应用笔记 | PDF 2.41 MB 日本語 | |
| 应用笔记 | PDF 3.25 MB 日本語 | |
| 快速入门指南 | PDF 3.06 MB | |
| 快速入门指南 | PDF 2.98 MB | |
| 手册 - 硬件 | PDF 4.33 MB | |
| 快速入门指南 | PDF 720 KB | |
| 快速入门指南 | PDF 801 KB | |
| 应用笔记 | PDF 1.45 MB | |
9 items
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RA 可扩展性强的配置软件包 (FSP) FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
|
Software Package | 瑞萨电子 |
| 快速连接平台 快速连接平台通过提供兼容的硬件和软件构建模块，实现快速原型设计。
|
Software and Hardware Development Tools | 瑞萨电子 |
2 items
|
||
样例程序
产品选项
当前筛选条件
视频和培训
RL78 Family LTE CAT-M1 MQTT Communication Solution
This video will show the steps to operate MQTT communication for send and receive (Publish/Subscribe) via MQTT Broker in an LTE CAT-M1 cellular communication with sample software in the application note.
The evaluation environment uses Renesas' RL78/G22 Fast Prototyping Board and PMOD Expansion Board for RYZ024A.
Video List
Certifications
The PMOD™ Expansion Board for RYZ024A meets multiple regional regulatory requirements. Refer to the RYZ024A evaluation kit documentation for disclaimer, precautions, and more details on the certifications.
Japan radio/terminal equipment based on type certification
Implemented RYZ024A has obtained certified construction type certification (certification number: 003-220081(Cat-M1 only)).
Note
Certifications are only for the products and jurisdictions indicated in the certification and should not be construed as a certification for any other jurisdiction or different product.
