封装信息

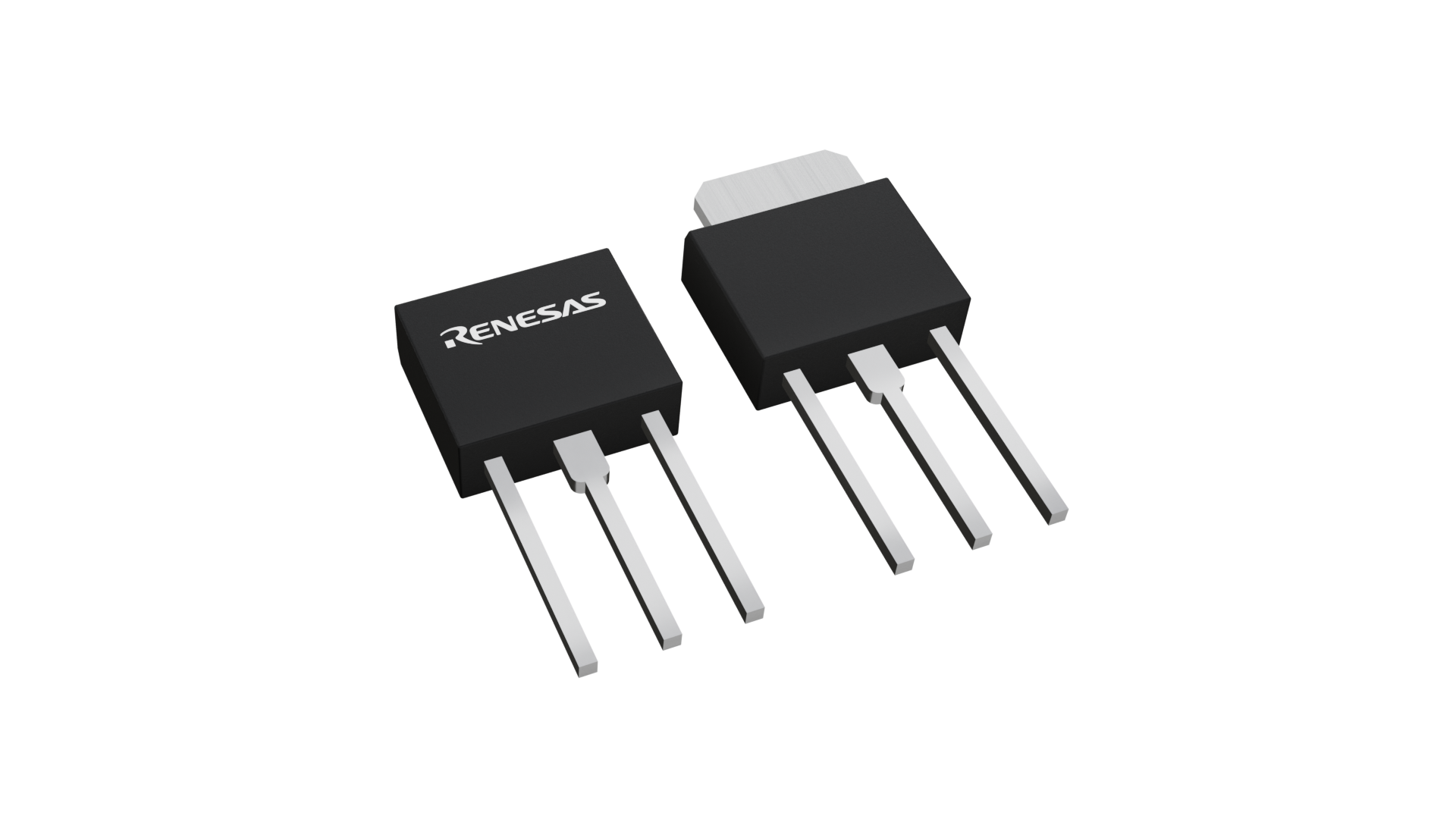

| Pkg. Type | MP-3 |
| Pkg. Code | pkg_7542 |
| Lead Count (#) | 3 |
环境和出口类别
| RoHS (2SA1400-Z-AZ) | 英语日文 |
| Moisture Sensitivity Level (MSL) | |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | MP-3 |
| IC @100 °C (A) | 0.5 |
| IC @25 °C (A) | -0.5 |
| Lead Compliant | No |
| Lead Count (#) | 3 |
| MOQ | 1 |
| NPN/PNP | PNP |
| Pb (Lead) Free | Yes |
| Pc (W) | 10 |
| Pch (W) | 10 |
| Tape & Reel | No |
| VCE (sat) (V) | -1 |
| VCEO (V) | -400 |
| Vcbo (V) | -400 |
| Vebo (V) | -7 |
| hFE | 30-200 |
描述
Support is limited to customers who have already adopted these products.
A wide variety of products are rolled out, for example, for uses at high temperature (up to 175°C applicable), high power, and low Vce (sat), and others.
