5V41186

有效

4-Output PCIe Gen1/2 Synthesizer

立即订购

特性

  • 20-pin TSSOP package; small board footprint
  • Spread-spectrum capable; reduces EMI
  • Outputs can be terminated to LVDS; can drive a wider variety of devices
  • Power down pin; greater system power management
  • OE control pin; greater system power management
  • Spread% and frequency pin selection; no software required to configure device
  • Industrial temperature range available; supports demanding embedded applications
  • Cycle-to-cycle jitter < 100 ps
  • Output-to-output skew < 50 ps
  • PCIe Gen2 phase jitter < 3.0ps RMS

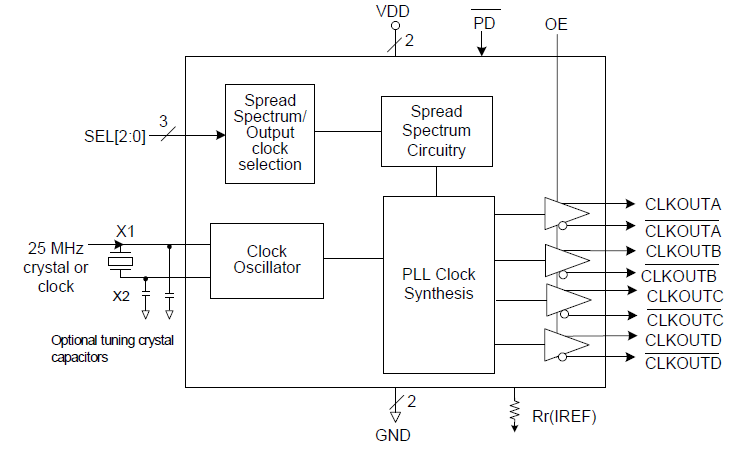

5V41186 - Block Diagram

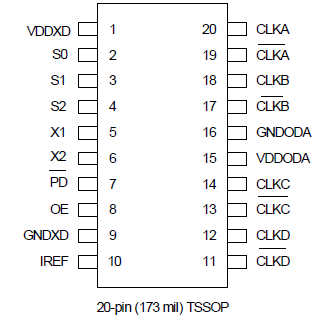

5V41186 - Pinout
5V41186 - Block Diagram
5V41186 - Pinout

描述

The IDT5V41186 is a PCIe Gen2 compliant spread-spectrum-capable clock generator. The device has 4 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins.

当前筛选条件

加载中
加载中

A detailed overview of IDT's full-featured PCI Express (PCIe) clock and timing solutions. The presentation addresses PCIe Gen 1, Gen 2, Gen 3, and Gen 4 architectures and how IDT's industry-leading solutions provide all the functions, features, and performance required by the application.

Presented by Ron Wade, System Architect at IDT. For more information visit the PCIe clocks page.
