74FCT162374T

过时

16-Bit Register (3-State)

概览

The 74FCT162374T 16-bit high-speed, low-power edge-triggered D-type registers are ideal for use as buffer registers for data synchronization and storage and can operate as two 8-bit registers or one 16-bit register with common clock. The 74FCT162374T offers low ground bounce, minimal undershoot, and controlled output fall times–reducing the need for external series terminating resistors. It is plug-in replacement for the 74FCT16374T for on-board bus interface applications. The 74FCT162374T operates at -40C to +85C

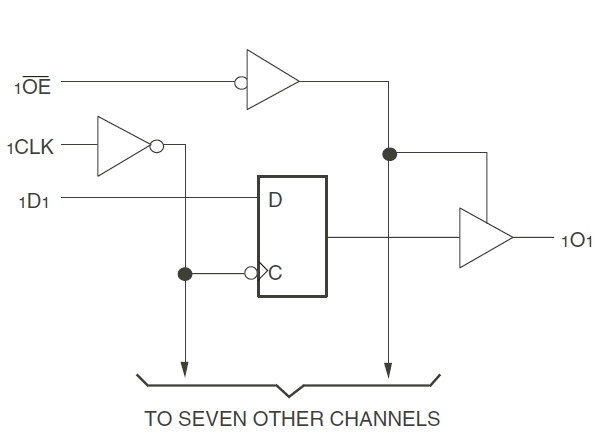

74FCT162374T - Block Diagram
74FCT162374T - Block Diagram
  • A, C, and E speeds
  • High-speed, low-power CMOS
  • Typical tSK(o) (Output Skew) 250ps
  • Low input and output leakage ?1 uA (max.)
  • VCC = 5V ±10%
  • Balanced Output Drivers: ±24mA
  • Reduced system switching noise
  • Typical VOLP (Output Ground Bounce) 0.6V at VCC = 5V, TA = 25C
  • Available in 48 pin SSOP and TSSOP packages

文档

设计和开发

ECAD 模块

点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。

扩展 ECAD 模块
Diagram of ECAD Models

模型
类型 文档标题 日期
模型 - IBIS
74FCT162374T IBIS Model
ZIP 9 KB
模型 - SPICE
74FCT162374T HSPICE MODEL
登录后下载 ZIP 27 KB
2 项目
