封装信息
| CAD 模型: | View CAD Model |

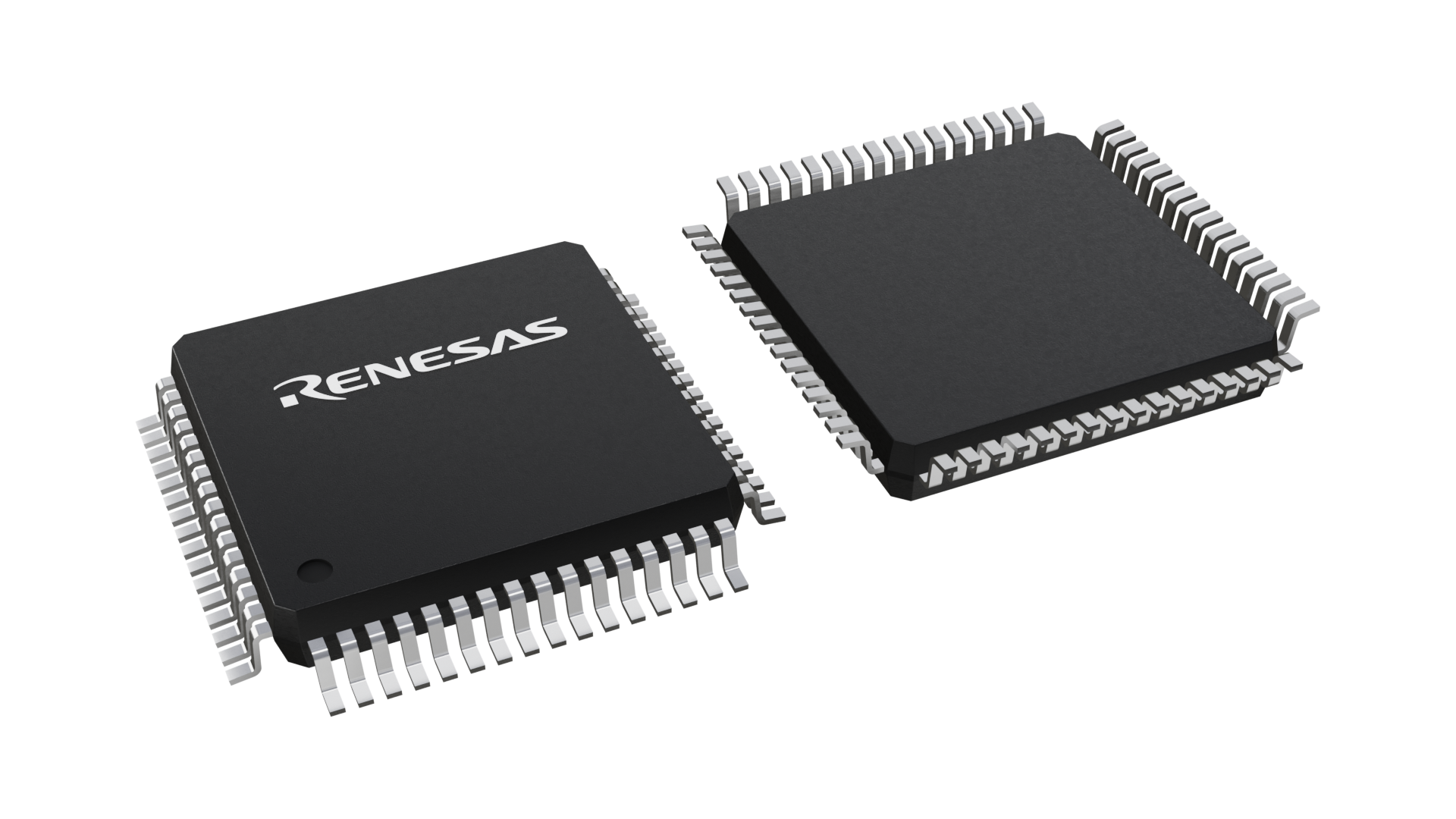

| Pkg. Type: | PQFP |
| Pkg. Code: | PMG64 |
| Lead Count (#): | 64 |
| Pkg. Dimensions (mm): | 14.0 x 14.0 x 2.0 |
| Pitch (mm): | 0.8 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Lead Count (#) | 64 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Temp. Range (°C) | -40 to 85°C |
| Country of Assembly | PHILIPPINES |
| Country of Wafer Fabrication | TAIWAN |
| Function | CODEC |
| Length (mm) | 14 |
| MOQ | 504 |
| Package Area (mm²) | 196 |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 14.0 x 14.0 x 2.0 |
| Pkg. Type | PQFP |
| Qty. per Carrier (#) | 84 |
| Qty. per Reel (#) | 0 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | No |
| Thickness (mm) | 2 |
| Width (mm) | 14 |
有关 821054 的资源
描述
The 821054 is a feature rich, single-chip, programmable 4-
channel PCM CODEC with on-chip filters. Besides the
