概览

描述

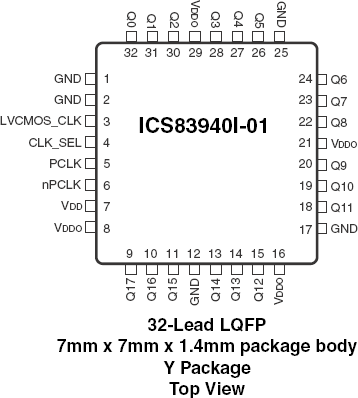

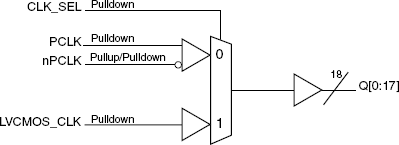

The 83940I-01 is a low skew, 1-to-18 LVPECL-to-LVCMOS/ LVTTL Fanout Buffer. The 83940I-01 has two selectable clock inputs. The PCLK, nPCLK pair can accept LVPECL or SSTL input levels. The single-ended clock input accepts LVCMOS or LVTTL input levels. The 83940I-01 is characterized at full 3.3V, full 2.5V and mixed 3.3V input and 2.5V output operating supply modes. Guaranteed output and part-to-part skew characteristics make the 83940I-01 ideal for those clock distribution applications demanding well defined performance and repeatability.

特性

  • Eighteen LVCMOS/LVTTL outputs, 23Ω typical output impedance
  • Selectable LVCMOS_CLK or LVPECL clock inputs
  • PCLK, nPCLK pair can accept the following differential input levels: LVPECL, SSTL
  • LVCMOS_CLK supports the following input types: LVCMOS or LVTTL
  • Maximum output frequency: 175MHz
  • Additive phase jitter, RMS: 0.108ps (typical), 3.3V/3.3V
  • Output skew: 115ps (maximum)
  • Part-to-part skew: 800ps (maximum), 3.3V/3.3V
  • Operating supply modes:
    Core/Output
    3.3V/3.3V
    3.3V/2.5V
    2.5V/2.5V
  • -40°C to 85°C ambient operating temperature
  • Available in lead-free (RoHS 6) package

产品对比

应用

文档

设计和开发

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - IBIS ZIP 77 KB
