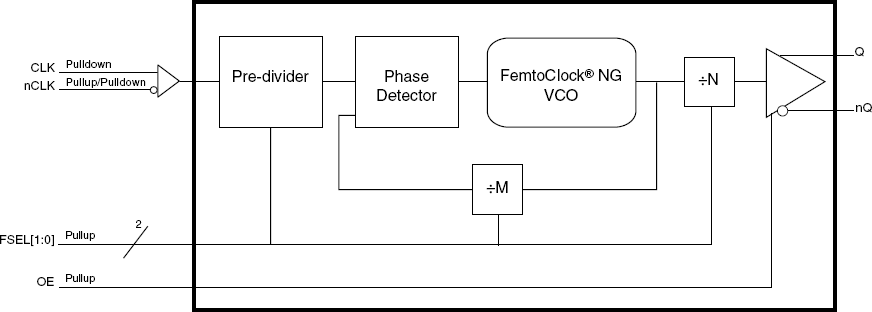

The 83PN128I is a programmable LVPECL synthesizer that can be used for frequency conversions. The device uses Renesas' fourth generation FemtoClock® NG technology for optimal high clock frequency and low phase noise performance, combined with a low power consumption and high power supply noise rejection. Oscillator-level performance is maintained with Renesas' 4th Generation FemtoClock NG PLL technology, which delivers low rms phase jitter. The 83PN128I defaults to 161.132813MHz output using a 156.25MHz input with 2 select pins floating (pulled up with internal pullup resistors) but can also be set to 4 different frequency multiplier settings to support a wide variety of applications. The below table shows some of the more common application settings.
特性
- Fourth Generation FemtoClock® NG technology

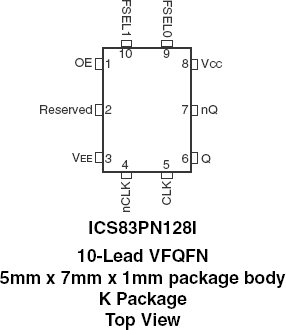

- Footprint compatible with 5mm x 7mm differential oscillators
- One differential LVPECL output pair
- CLK, nCLK input pair can accept the following levels: HCSL, LVDS, LVPECL, LVHSTL and SSTL
- Output frequency: 128.90MHz or 161.132813MHz
- VCO range: 2.5GHz – 2.7GHz
- Cycle-to-cycle jitter: 18ps (typical)
- RMS phase jitter @ 128.90MHz, 12kHz – 20MHz: 0.53ps (typical)
- Full 3.3V or 2.5V operating supply
- -40°C to 85°C ambient operating temperature
- Available in lead-free (RoHS 6) package
