特性
- One 3.3Vdifferential LVPECL output pair and one LVCMOS/LVTTL single-ended reference clock output
- Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input
- VCO range: 560MHz – 700MHz
- Supports the following applications: SONET, Ethernet, Fibre Channel, Serial ATA, and HDTV
- Selectable ÷1 or ÷2 operation
- RMS phase jitter @ 622.08MHz (12kHz - 20MHz): 0.80ps (typical)
Offset Noise Power
100Hz ................ -60.3 dBc/Hz
1kHz .................. -88.5 dBc/Hz
10kHz ................ -111.9 dBc/Hz
100kHz .............. -113.0 dBc/Hz - Full 3.3V supply mode
- 0°C to 70°C ambient operating temperature
- Available in lead-free (RoHS 6) package

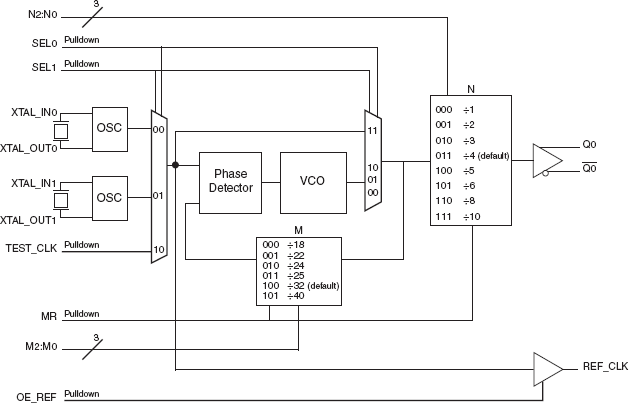

843001-21 - Block Diagram
描述
The 843001-21 is a highly versatile, low phase noise LVPECL Synthesizer that can generate low jitter reference clocks for a variety of communications applications. The dual crystal interface allows the synthesizer to support up to two communications standards in a given application (i.e. 1GB Ethernet with a 25MHz crystal and 1Gb Fibre Channel using a 26.5625MHz crystal). The rms phase jitter performance is typically less than 1ps, thus making the device acceptable for use in demanding applications such as OC48 SONET and 10Gb Ethernet. The 843001-21 is packaged in a small 24-pin TSSOP package.
