概览

描述

The 843051 is a Gigabit Ethernet Clock Generator. The 843051can synthesize 10 Gigabit Ethernet, SONET, or Serial ATA reference clock frequencies with the appropriate choice of crystal and output divider. The 843051 has excellent phase jitter performance and is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.

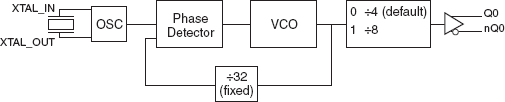

特性

  • One differential 3.3V LVPECL output
  • Crystal oscillator interface designed for 18pF parallel resonant crystals
  • RMS phase jitter at:
    155.52MHz (12kHz – 20MHz): 0.74ps (typical)
    156.25MHz (1.875MHz – 20MHz): 0.43ps (typical)
    161.13MHz (1.933Hz – 20MHz): 0.43ps (typical)
    Offset             Noise Power
      100Hz            -95 dBc/Hz
        1kHz            -110 dBc/Hz
      10kHz            -125 dBc/Hz
    100kHz            -125 dBc/Hz
  • Full 3.3V output supply mode
  • 0°C to 70°C ambient operating temperature
  • Available in lead-free (RoHS 6) package

产品对比

应用

文档

设计和开发

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - IBIS ZIP 26 KB
1 item
