概览
描述

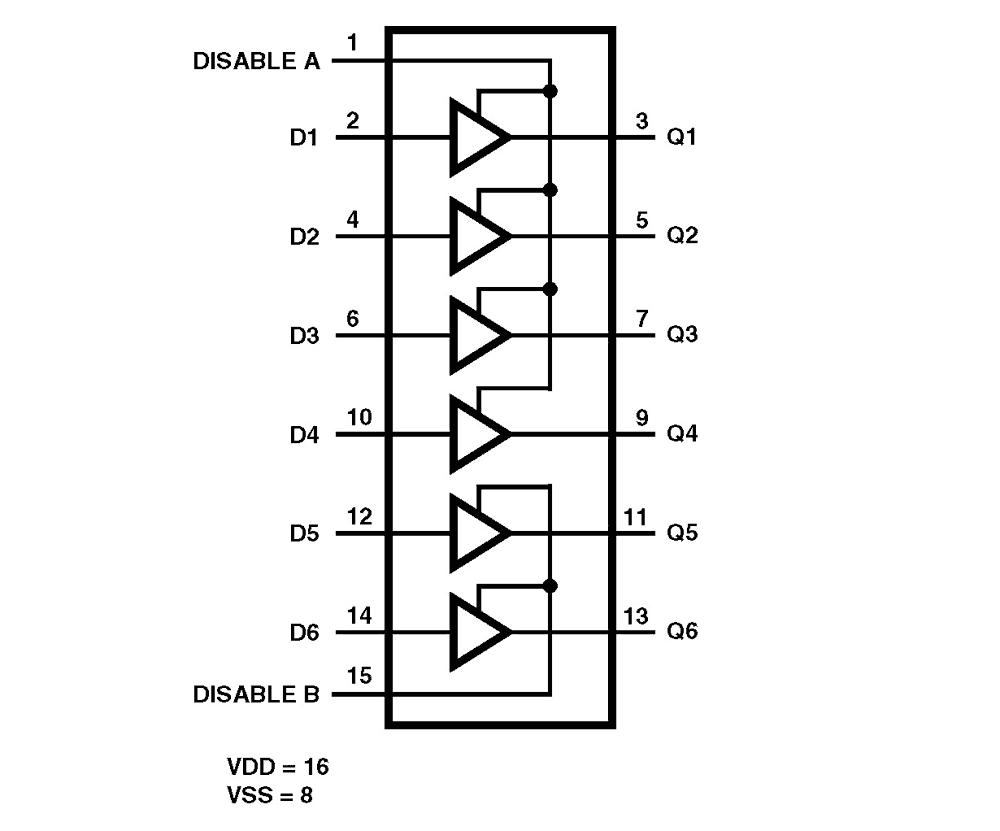

CD4503BMS is a hex noninverting buffer with 3 state outputs that have high sink and source current capability. Two disable controls are provided, one of which controls four buffers and the other controls the remaining two buffers. The CD4503BMS is supplied in these 16-lead outline packages: Braze Seal DIP H4T, Frit Seal DIP H1E, Ceramic Flatpack H6W.
特性
- High-voltage type (20V rating)
- 3-state non-inverting type
- 1 TTL load output drive capability
- 2 output disable controls
- 3 state outputs
- Pin compatible with industry types MM80C97, MC14503 and 340097
- 5V, 10V and 15V parametric ratings
- Maximum input current of 1µA at 18V over full package temperature range; 100nA at 18V and +25 °C
- Meets all requirements of JEDEC tentative standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 309 KB | |
| 宣传手册 | PDF 467 KB | |
| 涨价通告 | PDF 360 KB | |
| 其他 | ||
| EOL 通告 | PDF 200 KB | |
| 产品咨询 | PDF 499 KB | |
| 产品变更通告 | PDF 230 KB | |
| 应用说明 | PDF 224 KB | |
8 项目
|
||
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
