Name: DA16200MOD - Ultra-Low Power Wi-Fi Modules for Battery Powered IoT Devices
Brand: Renesas Electronics Corporation
SKU: DA16200MOD - Ultra-Low Power Wi-Fi Modules for Battery Powered IoT Devices
Price: 12.3611 USD
Availability: InStock

概览

DA16200 modules are the perfect complement to the DA16200 ultra-low power Wi-Fi SoC. They deliver the same long battery life and low power consumption but in a convenient form factor. The modules are complete with all required components and are regulatory certified by the FCC, IC, CE and other regulatory bodies.

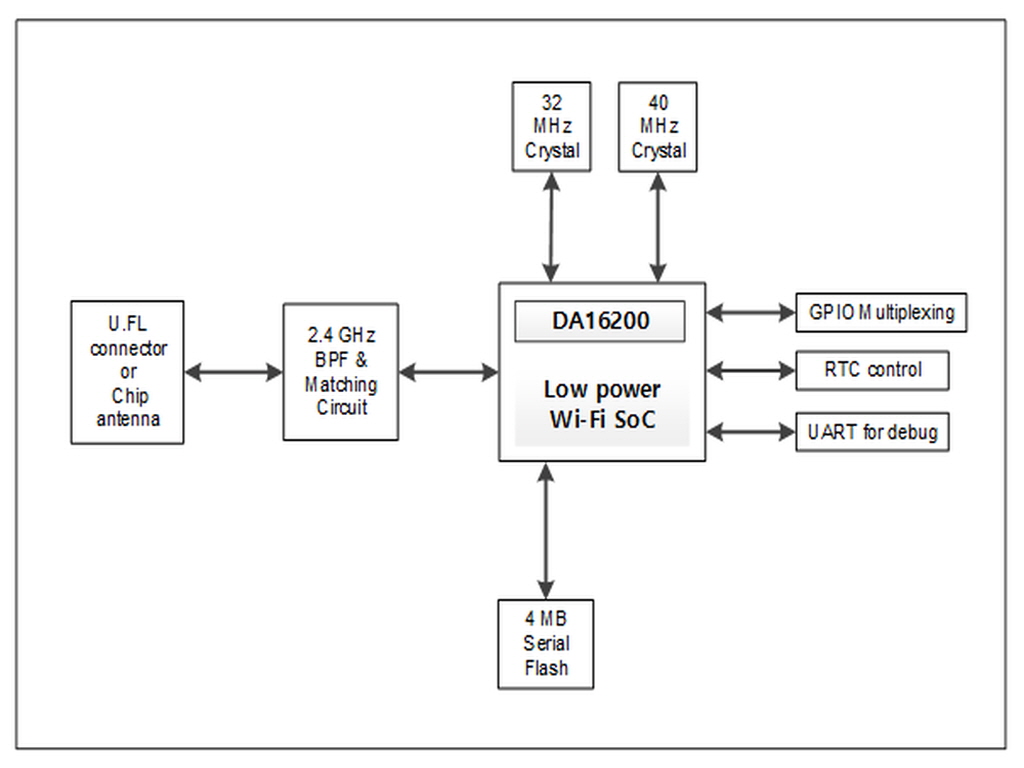

The fully integrated module consists of the DA16200 SoC, 4MB flash memory, RF components including crystal oscillator, RF lumped filter, and either a chip antenna or a connector for an external antenna.

The module has 37 pins including GPIOs, JTAG, RTC control, UART, power input, and the 32.768kHz crystal.

On Board Chip Antenna

13.8mm x 22.1mm x 3.3mm
DA16200MOD-AAC4WA32

External Antenna Connector (u.FL)

13.8mm x 22.1mm x 3.3mm
DA16200MOD-AAE4WA32

Benefits

Breakthrough VirtualZero™ technology
Virtually no power consumption in sleep state
Enables year-plus battery life
Ultra-low power sensor wake-up
Industry leading output power and Rx sensitivity for max range
802.11b/g/n radio PHY, BB/MAC, PA, LNA with on chip SRAM
Up to 72Mbps, MCS0-7
SoC runs full OS and TCP/IP stack
Automatically find and configure new devices with smartphone app
Comprehensive networking software stack
Secure boot
Secure debug
Secure asset storage
Hardware accelerated
TLS
Digital certificates
Elliptic curve
Enables field deployed device firmware updates
UART, SPI, SDIO, ADC, I²C, PWM, I²S, GPIOs, JTAG and SWD
Data logging, memory intensive applications

Wi-Fi AT Command Set

Access the industry-leading low power features of the DA16200/DA16600 family simply, quickly and without having to develop any complex software on the Wi-Fi side. To learn more, visit the DA16200 Wi-Fi AT Command Set page.

Ultra-low power
Superior range
Highly integrated SoC
Full offload
Simple setup and provisioning
Complete software stack
Leading security
Over-the-Air (OTA) firmware updates
Multiple I/Os
eMMC/SD expanded memory

文档

设计和开发

软件与工具

Software title	Software type	公司

DA16200 Wi-Fi AT Command Set Simple and fast Wi-Fi implementation using a comprehensive suite of AT-Commands for the DA16200 Wi-Fi and DA16600 Wi-Fi/Bluetooth LE combo products. 下载 UM-WI-003 DA16200 DA16600 Host Interface and AT Command User Manual Quick Start Guide of HTTP Client Quick Start Guide of MQTT Client Air Quality Quick Start Guide of MQTT Client Button Press QuickConnect IoT Wi-Fi Enabled Cloud Solution Kit Sample Code RA6M4 DA16200 HTTP Client RA6M4 ZMOD4410 DA16200 MQTT Client Air Quality Renesas Wifi DA16200 RA6M4 Cloud IoT Solution	IDE and Coding Tool	瑞萨电子
1 项目

软件下载

样例程序

筛选
类型	文档标题文档标题	日期日期日期
示例代码	Getting Started with Cloud Connectivity on the FSP DA16XXX MQTT On-chip Client 登录后下载 ZIP 2.88 MB 相关文件：应用说明	2024年8月5日
示例代码	Getting Started with HTTP Connectivity on the FSP DA16XXX HTTP On-chip Client [Software=Renesas Synergy Software Package\|v5.3.0],[Toolchains=GNU Arm Embedded\|13.2.1.arm-13-7] 登录后下载 ZIP 2.46 MB 应用: 通信基础结构 Compiler: ARMCC, GNU ARM Embedded Function: Other IDE: e2 studio 相关文件：应用说明	2024年8月5日
示例代码	QuickConnect IoT Wi-Fi Enabled Cloud Solution Kit Sample Code 登录后下载 ZIP 83.97 MB 相关文件：快速入门指南	2021年8月24日
3 项目

开发

DA16200MOD-DEVKT

DA16200 Ultra-Low Power Wi-Fi Modules Development Kit

The DA16200 development kit is the most ideal way to quickly and easily get started developing applications and products using ultra-low power Wi-Fi.

If you are looking to develop a battery-powered IoT application, the DA16200 Wi-Fi developer kit will get you started in minutes. This Wi-Fi...

立即订购

开发

DA16200MOD-DEVKT-P

DA16200 超低功耗 Wi-Fi 模块开发套件 Pro

使用 DA16200 低功耗 Wi-Fi 开发套件加速物联网开发。基于 VirtualZero™ 的 DA16200 开发套件使开发物联网应用程序变得简单快捷。

如果您想要开发电池供电的物联网应用，DA16200 Wi-Fi 开发者套件能让您在几分钟内入门。这款 Wi-Fi 开发套件非常完备，可让您全面了解和评估超低功耗 DA16200 芯片组，该芯片组是全球功耗最低的 Wi-Fi 芯片，专为满足功耗敏感型无线应用而设计。

DA16200 开发套件 Pro 是软件开发人员的理想之选，不仅可以全面控制软件开发，还可以使用我们的功耗剖析工具监控应用程序的功耗...

远程测试该板卡

该板卡已上线云上实验室（Lab on the Cloud)，使用我们的 PC 图形界面，无需实体板卡，便可在虚拟实验室中立即开始配置和测试设计。

启动云上实验室

立即订购

评估

US159-DA16200MEVZ

Ultra Low Power Wi-Fi Pmod™ Board (Renesas QuickConnect IoT)

The US159-DA16200EVZ Ultra Low Power Wi-Fi Pmod™ module enables the user to add Wi-Fi capability to any evaluation kit or microcontroller board equipped with a Pmod expansion capability. The board provides a standard Pmod™ Type 3A (Expanded UART) connection for the on-board Wi-Fi module.

The...

立即订购

开发

SPARKFUN-THING-PLUS-DA16200

SparkFun Thing Plus - DA16200 Features a Highly Integrated Low Power Wi-Fi SoC for Developing Wi-Fi and IoT Solutions

The SparkFun DA16200 Thing Plus utilizes a highly integrated ultra-low power Wi-Fi system-on-chip (SoC) from Renesas that allows users to develop Wi-Fi and IoT solutions. The DA16200 module contains an 802.11b/g/n radio (PHY), a baseband processor, a media access controller (MAC), on-chip...

Provider:

SparkFun Electronics

开发

SPARKFUN-QWIIC-DA16200

SparkFun Qwiic Wi-Fi Shield Featuring the Ultra-Low Power DA16200 Wi-Fi Module

SparkFun has teamed up with Arm and Renesas to provide you with this Qwiic WiFi Shield based around the DA16200 module. The DA16200 is a fully integrated Wi-Fi module with a 40MHz crystal oscillator, 32.768KHz RTC clock, RF Lumped RF filter, 4MB flash memory, and an on-board chip antenna. With...

Provider:

SparkFun Electronics

开发

SPARKFUN-MICROMOD-DA16200

SparkFun MicroMod WiFi Function Board Featuring the Ultra-Low Power DA16200 Wi-Fi Module

The SparkFun MicroMod DA16200 Function Board adds a fully integrated Wi-Fi module with a 40MHz crystal oscillator, 32.768KHz RTC, Lumped RF filter, 4MB flash memory, and an on-board chip antenna to any MicroMod project. With the addition of JTAG connectors for deep dive programming, you've got...
