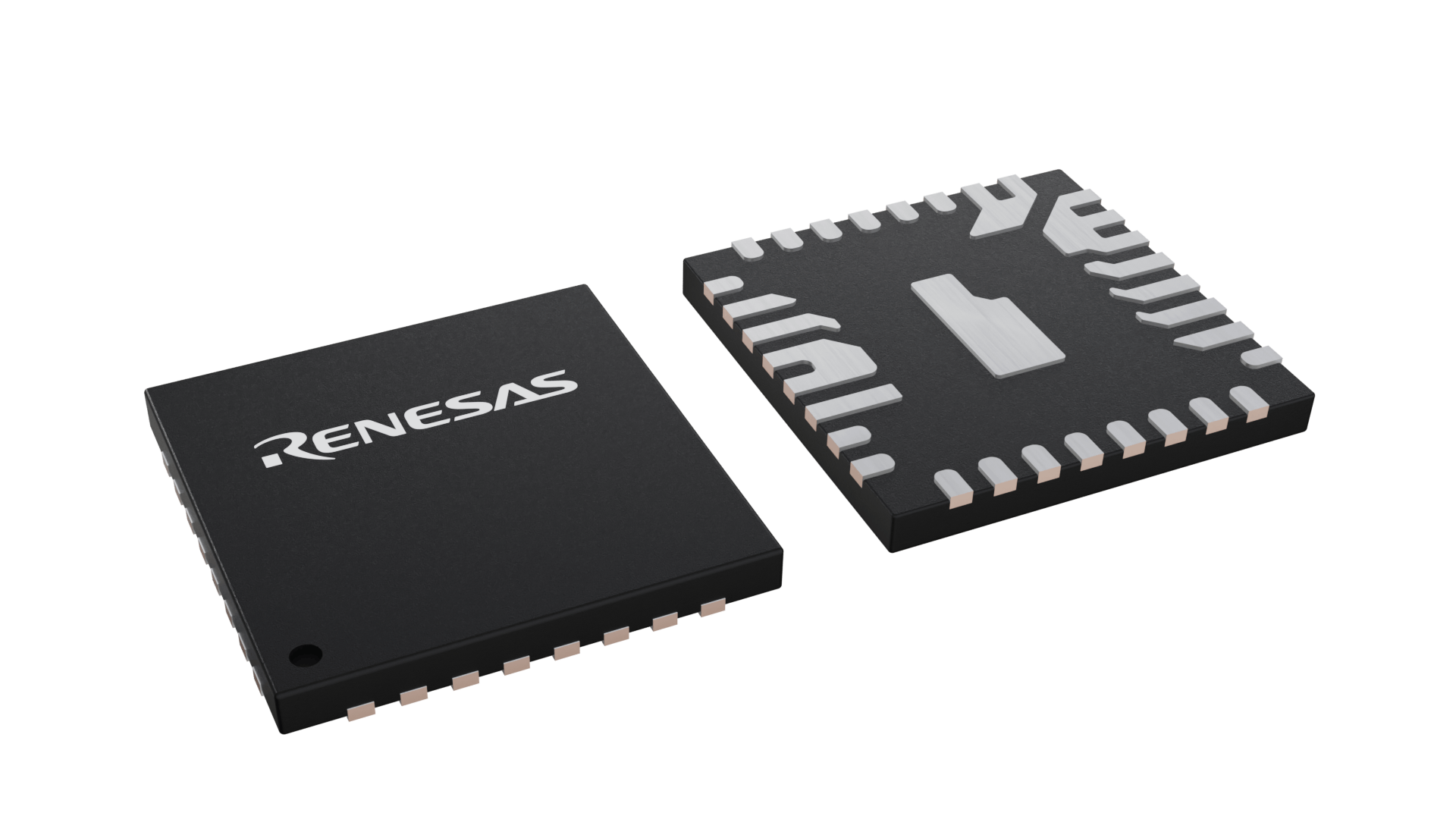

3D illustration featuring top and bottom views of FCQFN IC chip package with 32 lead count.
DA9080 Block Diagram
3D illustration featuring top and bottom views of FCQFN IC chip package with 32 lead count.

DA9080-61FCBC

有效
高度集成的 PMIC，具有 4 个降压稳压器、1个 LDO 和 8 位 ADC，采用 QFN 封装
DA9080 Datasheet有关 DA9080 的所有信息

封装信息

CAD 模型:View CAD Model
Pkg. Type:QFN
Pkg. Code:FQ0032AA
Lead Count (#):32
Pkg. Dimensions (mm):5 x 5
Pitch (mm):0.5

环境和出口类别

Moisture Sensitivity Level (MSL)3
Pb (Lead) FreeYes
ECCN (US)EAR99
HTS (US)8542.39.0090

产品属性

Lead Count (#)32
Moisture Sensitivity Level (MSL)3
Qty. per Reel (#)1000
Pb (Lead) FreeYes
Temp. Range (°C)-40 to +85°C
Country of AssemblyTAIWAN
Country of Wafer FabricationTAIWAN
Advanced Features8 bit ADC
Battery InterfaceNo
Buck-Boost DC/DC Converter Channels (#)4
Bus Voltage (Max) (V)5.5
Comm. InterfaceI2C
Device FunctionsPMIC
Function5-ch PMIC
GPIOs (#)0
Input Voltage (Max) (V)5.5
Input Voltage (Max) [Rail 1] (V)5.5 - 5.5
Input Voltage (Max) [Rail 2] (V)5.5 - 5.5
Input Voltage (Min) (V)4
Input Voltage (Min) [Rail 1] (V)4
Input Voltage (Min) [Rail 2] (V)4
Input Voltage Range (V)4 - 5.5
Integrated Battery ChargerNo
Integrated step-down DC/DC Converter Channels (#)5
InterfaceI2C
LDOs1
Linear OutputNo
MOQ1000
Output Current (Max) [Rail 1] (A)1.5
Output Current Max (A)5
Output Voltage (Max) (V)3.3
Output Voltage (Max) [Rail 1] (V)3.3
Output Voltage (Min) (V)0.8
Output Voltage (Min) [Rail 1] (V)2.1
Outputs (#)5
Package Area (mm²)25
Parametric CategoryMulti-Channel Power Management ICs (PMICs)
Pkg. Dimensions (mm)5 x 5
Pkg. TypeQFN
Price (USD)$2.98337
Processor NameRZ G2H, G2M, G2N, N2H, T2H, T2M, N2L, T2L, T2N, A3M
Processor SupplierRenesas
Product TypeMPU
Qualification LevelStandard
Step-up DC/DC converter Channels (#)0
Switching Frequency (MHz)2 - 2
Switching Regulators4
Total step-down DC/DC converter channels (#)5
USB-Power ManagementNo
VIN Range (V)4 - 5.5

描述

DA9080 是一款 5 路输出可配置电源管理 IC（PMIC），具有 4 个同步降压稳压器和 1 个 200mA LDO。 其中一个降压转换器能够提供高达 5A 的输出电流。 强大的保护功能包括欠压锁定（UVLO）、过流保护（OC）和用于故障保护功能的热保护。 DA9080 采用 32 引脚 QFN 封装。

优势

  • 通过可配置的强大电源轨驱动各种 Arm® 内核
  • 出色的输入/输出和效率特性，较大限度地减小了电路板面积
  • 完备的监控功能（UVLO、OC、OV、UV、TSD、PG）提高系统稳定性
有关 DA9080 的所有信息
