Pitch (mm) | 0.65 |
Lead Count (#) | 24 |
Pkg. Dimensions (mm) | 8.20 x 5.31 x 1.75 |
Pkg. Code | MJS |

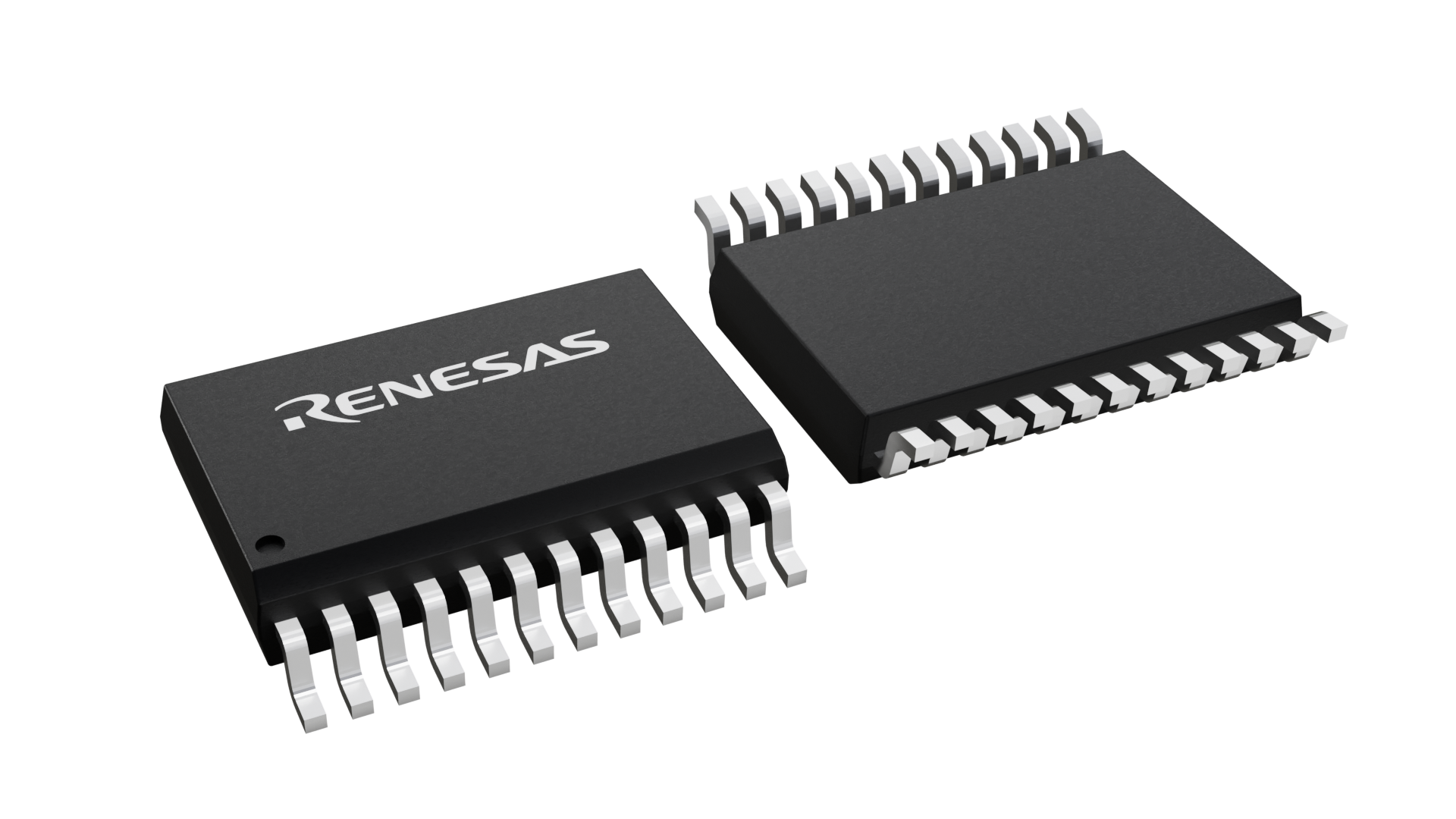

Pkg. Type | SSOP |
Moisture Sensitivity Level (MSL) | 3 |
Pb (Lead) Free | Yes |
ECCN (US) | EAR99 |
HTS (US) | 8542390001 |
RoHS (ICL3207ECAZ-T) | 下载 |
Lead Count (#) | 24 |
Carrier Type | Reel |
Moisture Sensitivity Level (MSL) | 3 |
Pitch (mm) | 0.7 |
Pkg. Dimensions (mm) | 8.2 x 5.3 x 1.75 |
Pb (Lead) Free | Yes |
Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
Temp. Range | 0 to +70°C |
Country of Assembly | Philippines |
Country of Wafer Fabrication | United States |
Price (USD) | 1ku | 1.57483 |
Auto Shutdown | No |
Charge-pump Capacitance Value (µF) | 0.1 |
Data Rate (Mbps) | 0.3 Mbps |
High ESD Protection | Yes |
IS Enabled (mA) | 0.3 |
Length (mm) | 8.2 |
MOQ | 2000 |
Manual Shutdown | No |
Pkg. Type | SSOP |
Qualification Level | Standard |
Receivers (#) | 3 |
Rx Disable | No |
Supply Voltage Vcc (Min) (V) | 3 |
Supply Voltage Vcc Range | 3-5.5 |
Thickness (mm) | 1.75 |
Transmitters (#) | 5 |
Width (mm) | 5.3 |
The ICL3207E is a 3V to 5. 5V powered RS-232 transmitter/receiver that meets EIA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. The ICL3207E features five transmitters and three receivers. It provides ±15kV ESD protection (IEC61000-4-2 Air Gap) and ±15kV Human Body Model protection on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are ISDN Terminal Adapters (TAs), PDAs, Palmtops, peripherals, and notebook and laptop computers where the low operational power consumption and even lower standby power consumption is critical. Small footprint packaging and the use of small, low-value capacitors ensure board space savings. Data rates greater than 250kbps are ensured at worst case load conditions. The ICL3207E is fully compatible with 3. 3V only systems, mixed 3. 3V and 5V systems, and 5V only systems. The ICL3207E is a lower power, pin-for-pin replacement for the MAX207E, HIN207E, and HIN237E.
