概览
描述
The ISL71010B25 is an ultra-low noise, high DC accuracy precision voltage reference with a wide input voltage range from 4V to 30V. The ISL71010B25 uses the dielectrically isolated PR40 process to achieve 1.9μVP-P noise at 0.1Hz to 10Hz with an initial voltage accuracy of ±0. 05%. The ISL71010B25 offers a 2.5V output voltage with 10ppm/°C temperature coefficient and also provides excellent line and load regulation. The device is offered in an 8 Ld SOIC package. The ISL71010B25 is ideal for high-end instrumentation, data acquisition, and processing applications requiring high DC precision where low noise performance is critical.

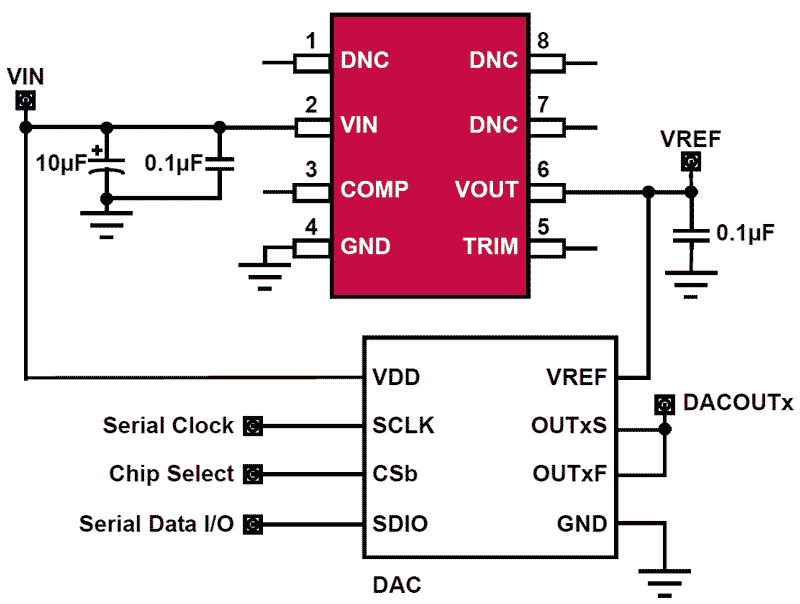

特性
- Reference output voltage: 2.5V ±0.05%
- Accuracy over temperature/radiation: ±0.15%
- Output voltage noise: 1.9μVP-P typical (0.1Hz to 10Hz)
- Supply current: 930μA (typical)
- Temperature coefficient: 10ppm/°C (max)
- Output current capability: 20mA
- Line regulation: 18ppm/V (max)
- Load regulation: 17ppm/mA (max)
- NiPdAu-Ag lead finish (Sn free)
- Dielectrically isolated PR40 process
- Operating temperature range: -55 °C to +125 °C
- Passes NASA Low Outgassing Specifications
- Characterized radiation level:
- Low dose rate (10mrad(Si): 30krad(Si)
- Single event burnout LET: 43MeV•cm2/mg
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1.26 MB | |
| 宣传手册 | PDF 5.41 MB 日本語 | |
| 宣传手册 | PDF 467 KB | |
| 产品咨询 | PDF 414 KB | |
| 白皮书 | PDF 252 KB | |
| 手册 - 开发工具 | PDF 548 KB | |
| 应用说明 | PDF 338 KB | |
| 应用说明 | PDF 224 KB | |
8 项目
|
||
设计和开发
软件与工具
开发板与套件
评估
Ultra-Low Noise, 2.5V Precision Voltage Reference Evaluation Board
The ISL71010BM25EV1Z evaluation board measures the performance of the high precision 2.5V ISL71010B25 voltage reference. The reference has a wide input voltage range from 4V to 30V and an initial accuracy of ±0.05%. The voltage noise of 1.9μVP-P in the 0.1Hz to 10Hz range and maximum output...
参考设计
Voltage Monitor Reference Design for Microchip RT PolarFire SoC FPGA Family
The ISL71148VMREFEV2Z is a high-resolution voltage monitor reference design optimized to support the Microchip radiation tolerant (RT) PolarFire® SoC FPGA family. Powering the RT PolarFire requires numerous power rails, each requiring specific DC and AC regulation tolerances. The...
