封装信息
| CAD 模型: | View CAD Model |

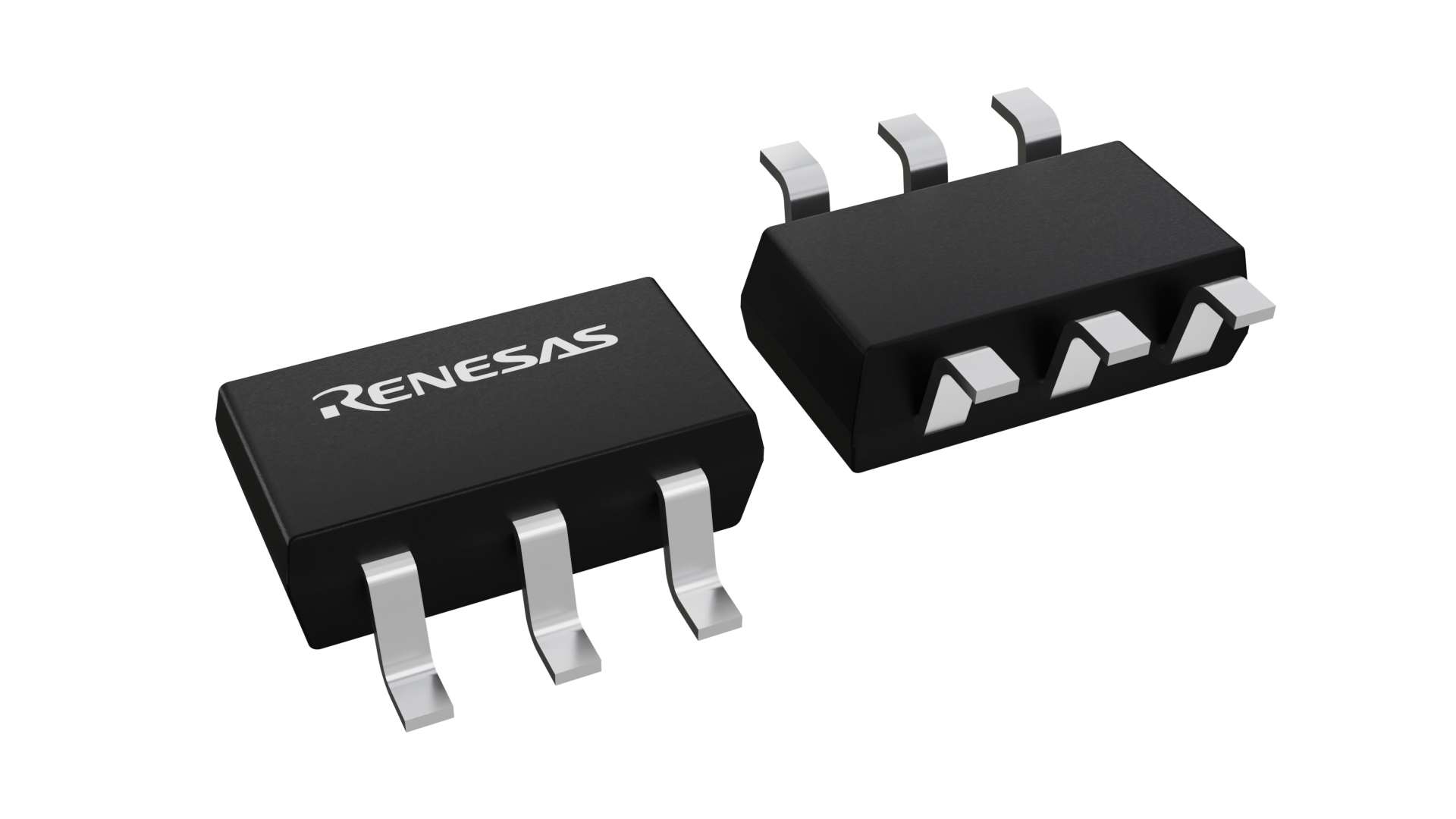

| Pkg. Type: | SC70 |
| Pkg. Code: | PHT |
| Lead Count (#): | 6 |
| Pkg. Dimensions (mm): | 2.01 x 1.24 x 0.50 |
| Pitch (mm): | 0.65 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 2 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| RoHS (ISL84714IHZ-T7A) | 下载 |
产品属性
| Lead Count (#) | 6 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 2 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Temp. Range (°C) | -40 to +85°C |
| Country of Assembly | MALAYSIA |
| Country of Wafer Fabrication | TAIWAN |
| Channels (#) | 1 |
| Charge Injection (pC) | 20 |
| Configuration | MIX |
| Drain Capacitance | 100 |
| IS (mA) | 1.8E-5 |
| Leakage (nA) | 2 |
| Length (mm) | 2 |
| MOQ | 250 |
| Pitch (mm) | 0.7 |
| Pkg. Dimensions (mm) | 2.0 x 1.2 x 0.50 |
| Pkg. Type | SC70 |
| Price (USD) | $1.37028 |
| Qualification Level | Standard |
| RDS (ON) (Ohms) | 0.44 |
| Source Cap (pf) | 40 |
| Supply Voltage Vcc Range | 1.65 to 3.6 |
| Switch or MUX | Switch |
| TOFF (ns) | 2.9 |
| TON (ns) | 7.5 |
| Thickness (mm) | 0.5 |
| Type of Switch | SPDT |
| VCC (Single) (V) | 1.65 - 3.6 |
| Width (mm) | 1.2 |
有关 ISL84714 的资源
描述
The Intersil ISL84714 device is a low ON-resistance, low voltage, bidirectional, single pole/double throw (SPDT) analog switch designed to operate from a single +1. 65V to +3. 6V supply. Targeted applications include battery powered equipment that benefit from low ON-resistance and fast switching speeds (tON = 7. 5ns, tOFF = 2. 9ns). The digital logic input is 1. 8V CMOS compatible when using a single +3V supply. Cell phones, for example, often face ASIC functionality limitations. The number of analog input or GPIO pins may be limited and digital geometries are not well suited to analog switch performance. This part may be used to mux-in additional functionality while reducing ASIC design risk. The ISL84714 is offered in the 6 Ld SC70 package, alleviating board space limitations. The ISL84714 is a committed SPDT that consists of one normally open (NO) and one normally closed (NC) switch. This configuration can also be used as a 2-to-1 multiplexer.
