特性
- Configurable PF to Manage Trade-Offs Between PF and Output Ripple
- PF from >0.7 (Lower Ripple) to >0.9 (Higher Ripple)
- Low THD <20%
- Single-Stage LED Driver in SOT23 6-pin Package
- Two Dual-Function Pins - Allows for Functionality of an 8-pin Part in a 6-pin Package
- Ideal for 10W Offline Solid-State Lighting Applications
- User-Configurable Internal LED Derating Over-Temperature Protection
- Three Selectable Temperature Thresholds
- Maintains Light Output in Fault Condition
- Hysteresis Allows Smooth Transition Back to Normal Operation
- Fully Protected
- Overvoltage/Over-Temperature Protection
- Output Overvoltage, Overcurrent and Short Circuit
- Open LED Fault Detection
- Sense-Resistor Short Circuit Protection
描述

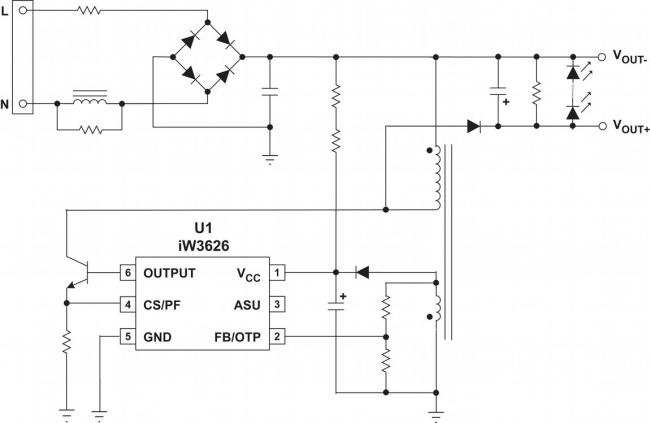

The iW3626 integrates high power factor (PF), low output ripple and low total harmonic distortion (THD) in a single-stage solid-state lighting (SSL) LED driver for isolated and non-isolated applications up to 10W for 60W-equivalent non-dimmable LED replacement bulbs.
The iW3626 integrates a unique hybrid control scheme with a configurable power factor between >0.7 and >0.9 to manage the trade-off between PF and LED output current ripple. This unique feature enables high PF and low ripple from a low-cost solution.
The iW3626 reduces the BOM cost and solution size by incorporating Renesas' proprietary PrimAccurate™ technology, eliminating the need for a secondary side regulator and optical feedback isolator. Renesas' advanced technology allows for the functionality and performance of an 8-pin part in a small SOT23 6-pin package. It also uses lower-cost bipolar junction transistors (BJTs), so there is no need for high-voltage electrolytic capacitors.
产品参数
| 属性 | 值 |
|---|---|
| Function | Non-Dimmable |
| Output Power Max (W) | 10, 13 |
| Switching Frequency (KHz) | 72 - 72 |
| No Load Power (mW) | 100 |
| Optimal VIN (V) | 90 - 264 |
| Stages | Single-Stage |
| Controller / Integrated | Controller |
| Key Features | PrimAccurate, EZ-EMI |
| Protection Features | OVP, SRSC, PCL/OCP, IOVP, OTP |
| Dimmer Functions Supported | No Dimmer Support |
| Pass Device | BJT |
| Power Factor Correction | >0.9 |
| LED Current Accuracy (%) | 5 |
| Output Power (Min) (W) | 1, 3 |
封装选项
| Pkg. Type | Lead Count (#) | Pitch (mm) |
|---|---|---|
| SOT23-6L | 6 | 0.95 |
应用
- Solid-State Lighting
- LED Lighting Ballast
