概览
描述

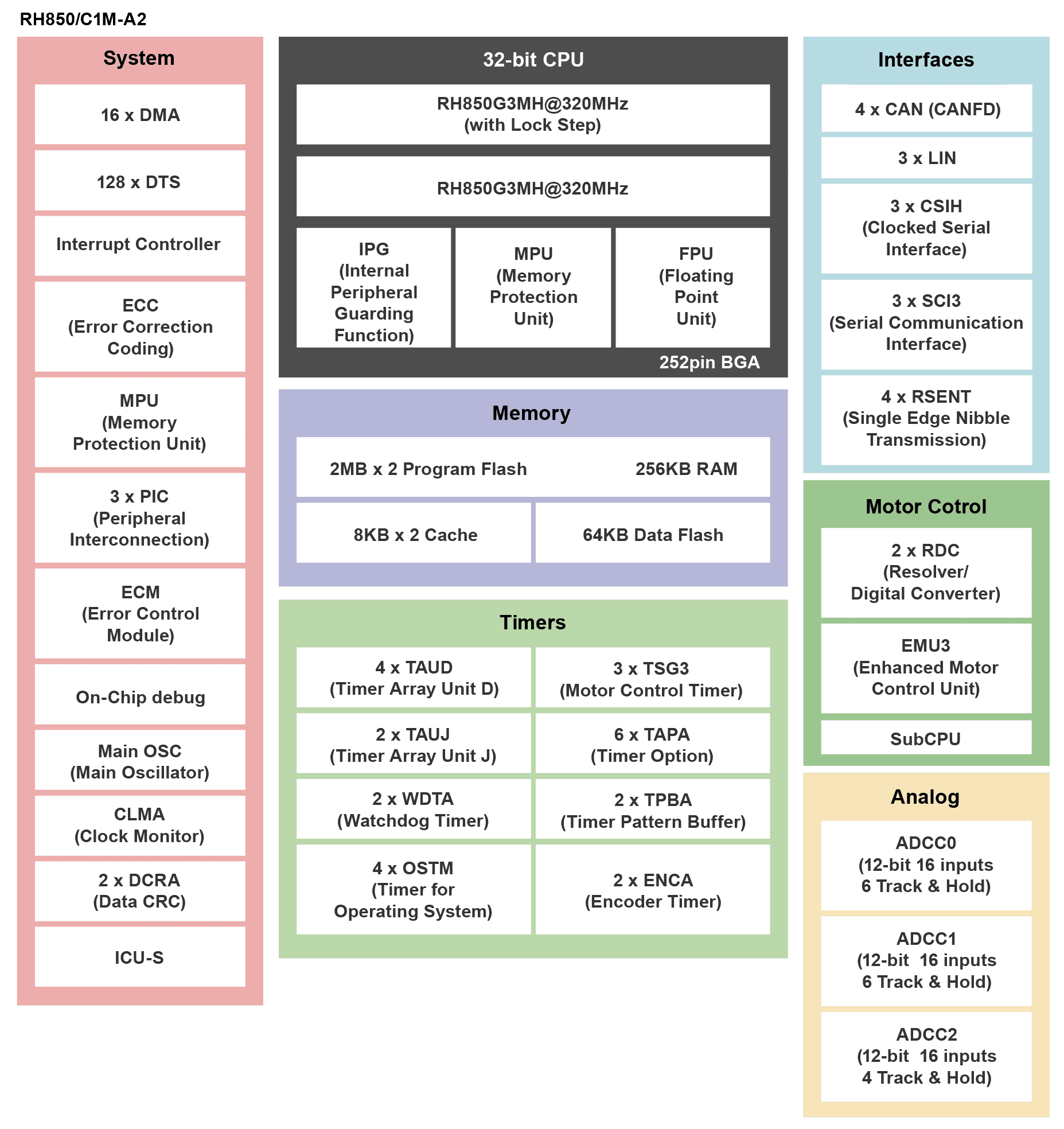

RH850/C1M-Ax 微控制器配备 RH850 系列 G3MH(C1M-A2 为双核)CPU 内核(C1M-A1 工作频率为240MHz、C1M-A2 工作频率为 320MHz),拥有出色的处理能力。 除 ROM、RAM 和 DMA 外,这款微控制器还内置多种定时器(如电机控制定时器)、多种串行接口(如 CAN,其中 CAN FD 兼容)、12 位 A/D 转换器 (ADC)、可将旋转变压器输出信号转换为数字角度信息的 R/D 转换器 (RDC3A) 、CPU 以及并行电机控制单元 (EMU3) 等,还配备有适用于 HEV/EV 电机控制的多种外围功能。 此外,C1M-A2 可以同时控制两个电机。
特性
- CPU 内核:
- C1M-A1:240MHz 内核(内含锁步双核 x1)
- C1M-A2:320MHz 内核 x2(内含锁步双核 x1)
- FPU
- 计时器:
- 主振荡器:20MHz
- 带可选 SSCG 模式的 PLL:240MHz 或 320MHz
- 不带 SSCG 模式的 PLL:80MHz
- 片上低速振荡器:240kHz
- 数据传输:DMAC / DTS
- 定时器:
- 定时器阵列单元 D (TAUD) 2 或 4 个单元
- 定时器阵列单元 J (TAUJ) 1 或 2 个单元
- 电机控制定时器 (TSG3) 2 或 3 个单元
- 编码器定时器 (ENCA) 2 个单元
- 模拟:SAR A/D 转换器 30 或 48 通道,3 个单元
- 通信接口:
- 时钟串行接口 H (CSIH) 3 通道
- CAN 接口 (RS-CANFD) 4 通道
- LIN 接口 (RLIN3) 3 通道
- 串行通信接口 (SCI3) 3 通道
- RSENT 4 通道
- 电机控制:
- 电机控制定时器 (TSG3) 2 或 3 个单元
- R/D 转换器 (RDC3A) 1 或 2 个单元
- 增强型电机控制单元(EMU3)1 个单元
- 安全:
- 多输入签名生成器 (MIST)
- 时钟监视器
- 看门狗定时器
- 安全看门狗定时器
- 内存保护功能
- 电源电压:
- 1.15V - 1.35V(CPU 内核)
- 4.5V - 5.5V(I/O、系统、AD 转换器、RD 转换器)
- 温度:Tj= -40° - +150°
产品对比
应用
设计和开发
软件与工具
软件与工具
Software title
|
Software type
|
公司
|
---|---|---|
ASCET-DEVELOPER ETAS ASCET-DEVELOPER (ASCET 7) is a tool for developing application software for embedded systems using graphical models and textual programming notations.
|
Other Hardware | ETAS Group |
ETK / FETK / XETK – ECU Interfaces The Ethernet-based ETK / FETK / XETK interfaces by ETAS provide direct access to the measurement variables and control parameters of an ECU.
|
Other Hardware | ETAS Group |
INCA INCA tools are used for ECU development and test as well as for validation and calibration of electronically controlled systems in the vehicle, on the test bench, or in a virtual environment on the PC.
|
IDE and Coding Tool | ETAS Group |
E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备:RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
RH850 Multicore Model-Based Environment [Embedded Target for RH850 Multicore] The Embedded Target for RH850 Multicore is a RH850 model-based multicore environment that simplifies complex driving control for the autonomous-driving era. In addition to the multicore support of the PILS tool for automatic configuration of environments, Embedded Target for Renesas CS+, it can also be interlinked with a model-based parallelization tool from eSOL Co., Ltd.
|
Model-Based Development | 瑞萨电子 |
瑞萨 MCAL 瑞萨的 MCAL(微控制器抽象层)软件驱动程序可作为独立软件包获取。
|
Software Package | 瑞萨电子 |
xEV Inverter Application Model & Software An xEV (Electric Vehicle) runs on a motor or combination of motor and internal combustion engine, and the motor is controlled by the xEV Inverter. The “xEV Inverter Application Model and Software” provides a sample application model and software to control the motor, reducing software development effort and time during product development using the xEV inverter kit.
|
Software Package | 瑞萨电子 |
IAR Embedded Workbench for Renesas RH850 IAR Embedded Workbench 可为 RH850 设备提供广泛支持。 IAR Embedded Workbench 是一套具备领先优化技术的完整开发工具,可用于创建强大的汽车应用程序。
|
IDE and Coding Tool | IAR Systems |
Green Hills Multi 多开发环境:快速开发、调试、测试以及优化嵌入式应用和实时应用。Green Hills 优化编译器:使用 C、C++ 和 Ada 生成最小和最快的代码。
|
IDE and Coding Tool | Green Hills Software LLC |
RH850 Smart Configurator RH850 Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | 瑞萨电子 |
MBD Solution for RH850/C1M-Ax The MBD solution for RH850/C1M-Ax connects the MCU peripheral IP model with the user model through an intuitive physical value interface and realizes seamless Model-Based Design (MBD) from simulation to embedding generated code into the actual hardware.
|
Model-Based Development | 瑞萨电子 |
Green Hills MULTI Device-Support-Packages Green Hills MULTI Device-Support-Packages include all device specific files to be used with the MULTI IDE.
|
IDE and Coding Tool | 瑞萨电子 |
13 items
|
样例程序
样例程序
筛选
|
||
---|---|---|
类型 | 文档标题 | 日期 日期 |
示例代码 |
ZIP
1.29 MB
应用:
云计算和企业, 汽车
Function:
Application Example
IDE:
GHS MULTI for RH850
|
|
示例代码 | ZIP 3.74 MB | |
示例代码 |
RH850/C1M-A Controlling the Permanent Magnet Synchronous Motor with Resolver by Using RDC3A and EMU3
ZIP
3.00 MB
日本語
|
|
3 items
|
开发板与套件
RH850/C1M-A 入门套件
RH850/C1M-A 入门套件是一款简单易用的平台,用于评估瑞萨电子 32 位 RH850/C1M-A2 微控制器的特性和性能。
Traction Motor Controller Board
This traction motor controller mainly intends to drive motor control for HEV/EV-based applications and these consist of two boards – the controller board which controls the motor driver, digital, and analog sections and the power board includes power MOSFETs for motor drive. The controller board...
用于xEV(电动汽车)的逆变器套件
车载逆变器用于将直流电流转换为交流电,该交流电用于电动汽车的电机中。该套件结合了MCU,电源管理IC,栅极驱动器IC,隔离栅极双极晶体管(IGBT)和快恢复二极管(FRD),使高性能HEV / EV电机,实用的硬件设计得到最大限度的使用。此外,还提供 xEV 逆变器应用模型和软件。
