特性
- CPU: RL78 core, Max. 32MHz
- Voltage: 1.6V to 5.5V
- Package: 48 to 64-pin HWQFN, 80-pin LFQFP
- Memory: SRAM Max. 4KB, Program Flash Max. 64KB
- Timer: 16-bit Timer (ch) x 8, 8-bit Timer (ch) x 2, Watchdog Timer (ch) x 1, Interval Timer x 1 ch
- PWM: PWM Output x 6
- Analog function: 12-bit A/D Converter (ch) x 17, 8-bit D/A Converter (ch) x 4
- On-chip Oscillator Freq. (MHz): 32
- Others: RTC, Power-On Reset, Low Voltage Detection
描述

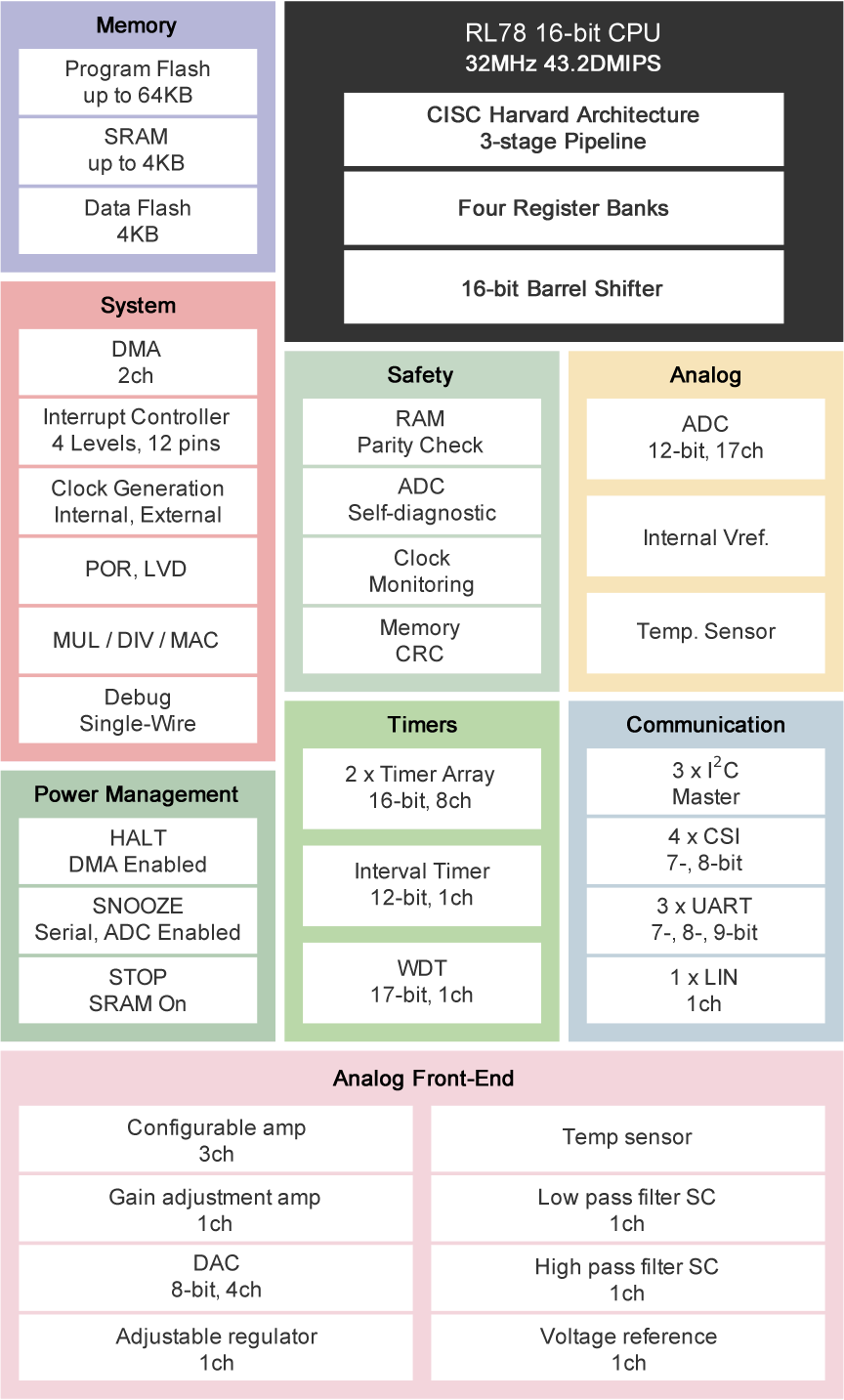

The RL78/G1E microcontroller is based on the RL78/G1A and has built-in analog front-end (AFE) for sensor applications. The AFE circuit contains configurable amplifiers capable of various amplifier configurations, a gain adjustment amplifier, filters, D/A converters, and a temperature sensor, which are suitable for processing small sensor signals.
应用
- Office
- Home Appliance
- Healthcare
- Security
