概览

描述

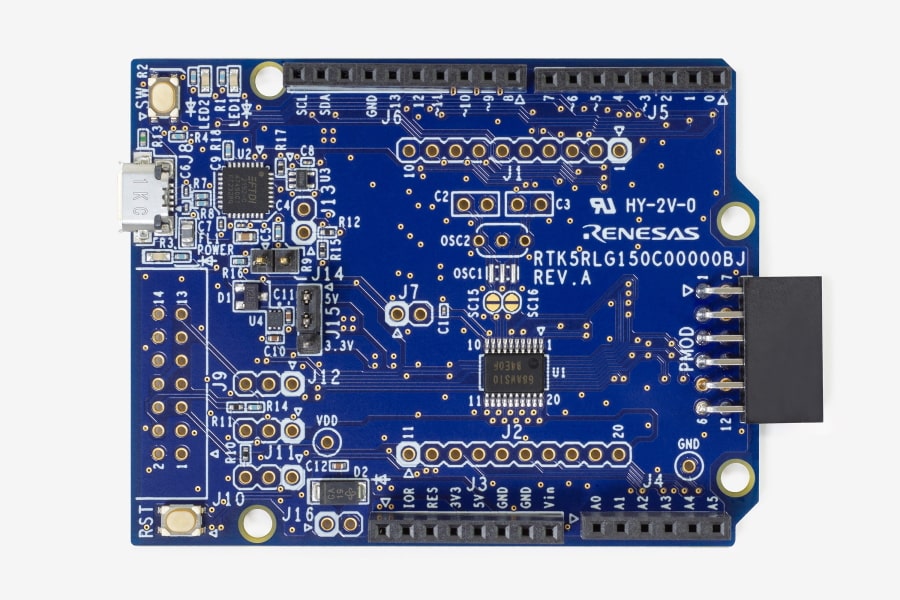

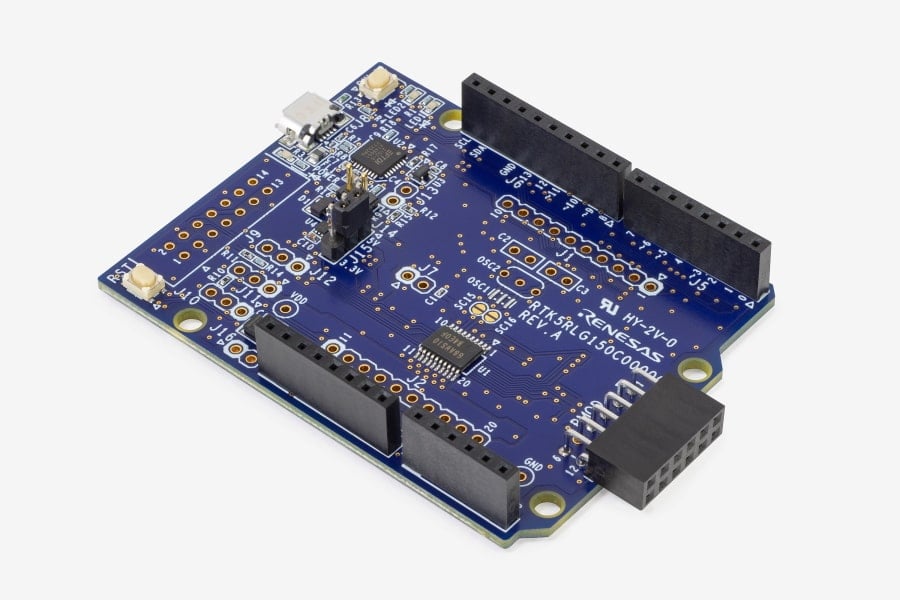

RL78/G15 快速原型开发板采用 RL78/G15 微控制器,是各种原型开发的理想选择。 内置的仿真器电路相当于 E2 仿真器 Lite,无需额外工具即可进行编程和调试。 此外,它还具有 Arduino Uno 和 Pmod™ 接口,可连接所有微控制器引脚,并且具有高可扩展性。 瑞萨电子还提供了一个 Arduino 库,支持在 Arduino IDE 上创建各种程序(草图)。

特性

  • 配备 16 位微控制器(20 引脚、ROM:8KB、RAM:1KB)
  • 使用 USB 线连接到电脑,即可通过 COM 端口通信编写/调试程序
  • 可以连接微控制器的所有引脚
  • 标配 Arduino Uno 和 Pmod™ 接口
  • 可提供 Arduino 库
  • 支持各种 RL78 软件和工具

应用

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
快速连接平台
快速连接平台通过提供兼容的硬件和软件构建模块,实现快速原型设计。
Software and Hardware Development Tools 瑞萨电子
C Compiler Package for RL78 Family [CC-RL]
C Compiler Package for RL78 Family [IDE: CS+, e² studio]
Compiler/Assembler 瑞萨电子
CS+
瑞萨电子集成开发环境(IDE)[支持 MCU/MPU:RH850、V850、RX、RL78、78K0R、78K0] (注意:CS+ 通常不会向美国和欧洲客户推广。 (注意:要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器,请为每个 MCU 系列安装智能配置器,从“设计和支持”>“开发工具”>“智能配置器”下载)
IDE and Coding Tool 瑞萨电子
e² studio - information for RL78 Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool 瑞萨电子
IAR Embedded Workbench for Renesas RL78
IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
IDE and Coding Tool IAR Systems
Renesas IAR Embedded Workbench Device-Support-Packages
Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
IDE and Coding Tool 瑞萨电子
8 items

软件下载

类型 文档标题 日期
电路板信息文件 ZIP 1 KB
PCB 设计文件 ZIP 5.20 MB
2 items

样例程序

产品选项

当前筛选条件

视频和培训

RL78 Arduino Quick start guide - How to add the RL78 board platform to Arduino IDE 1

This video introduces how to add the RL78 board platform released by Renesas Electronics
on GitHub to Arduino IDE version 1 and run sketches.

Related resources: Quick Start Guide page (GitHub)

00:00 Opening
00:30 Install the Arduino IDE
00:47 Install the tools
01:54 Write the sketch
02:02 COM port setting
02:29 Board setting
02:44 Compile, upload, LED blinking
