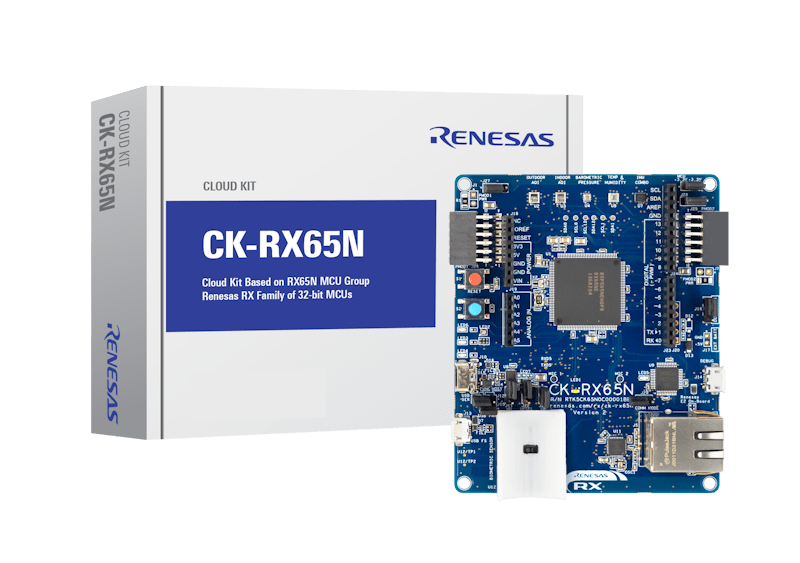

The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.

With multiple network connectivity options, the kit provides a seamless cloud connectivity experience to most of the global cloud service providers. The kit is equipped with an onboard ethernet PHY for ethernet connectivity and includes the DA16600 Wi-Fi-BLE combo Pmod for wireless connectivity.

The kit has complete software stack support using FreeRTOS, Azure RTOS, other middleware stacks, and drivers, thereby making it an ideal platform for efficiently developing cloud solutions and greatly reducing the time-to-market.

For more information and for the complete cloud solution package, please refer to RX Cloud Solutions and Renesas Cloud Solutions.

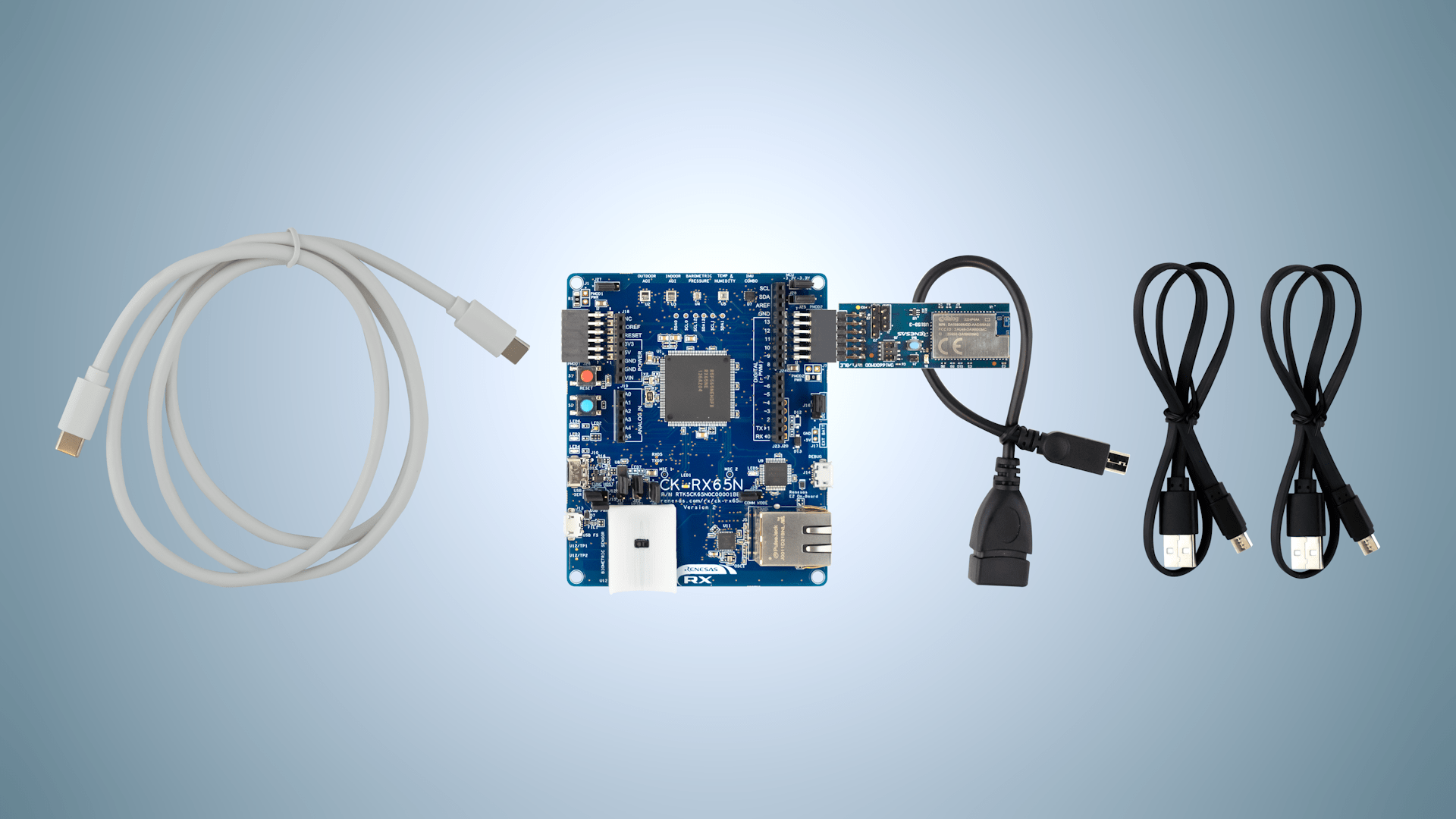

Kit Contents

  • CK-RX65N v2 board
  • US159-DA16600EVZ Pmod
  • Type-A to Micro-B USB cable
  • Type-A to Micro-B USB adapter cable
  • Type-C to Type-C USB cable

特性

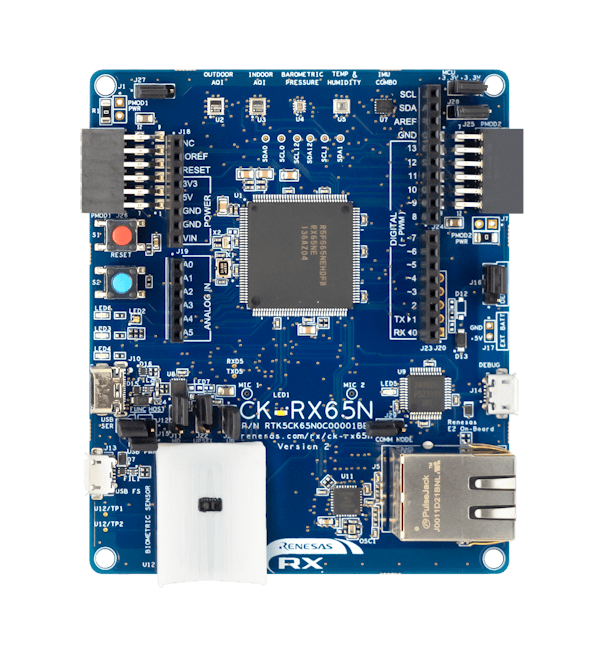

  • CK-RX65N v2 baseboard
  • Wi-Fi with US159-DA16600EVZ Pmod
  • Ethernet
  • USB Full Speed Host and Device
  • Sensors:
    • Humidity and Temperature
    • Indoor Air Quality Index
    • Outdoor Air Quality Index
    • Heart rate, blood oxygen saturation (SpO2), respiration rate
    • Barometric Pressure
    • 6 axis Motion Tracking
  • 2 MEMS Microphones
  • Battery connector for portability
  • Arduino™ (Uno R3) connector
  • USB Type-C power connector
  • On-board MCU
    • R5F565NEHDFB microcontroller
    • 120MHz, RX v2 core
    • 2MB Code Flash, 640KB SRAM
    • Trusted Secure IP for security functions
    • 144 pins, LQFP package
  • Ecosystem
    • MCU and Pmod current measurement points
    • 5V input through USB or external power supply
    • USB-serial converter
    • Debug on-board (E2OB)
    • 4 user LEDS
    • One user button
    • 2 Digilent Pmod™ (SPI/UART/I2C: Type-6A and Type-2A) connectors

应用

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
C/C++ Compiler Package for RX Family [CC-RX]
C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
Compiler/Assembler 瑞萨电子
快速连接平台
快速连接平台通过提供兼容的硬件和软件构建模块,实现快速原型设计。
Software and Hardware Development Tools 瑞萨电子
QE for OTA: Development Assistance for Cloud
QE for OTA is a development assistance tool that enables easy trial of over-the-air (OTA) firmware updates using cloud services. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78, RA] [Support clouds service: Amazon Web Services (AWS), Microsoft Azure]
Solution Toolkit 瑞萨电子
Reality AI Utilities
瑞萨电子 e² studio 插件模块
Solution Toolkit 瑞萨电子
4 items

软件下载

类型 文档标题 日期
电路板信息文件 ZIP 1 KB
电路板信息文件 ZIP 1 KB
2 items

样例程序

相关评估板和套件

产品选项

当前筛选条件

视频和培训

FreeRTOS PubSub Demo: CK-RX65N V2 Setup (1/3)

This video series demonstrates how to use FreeRTOS with IoT libraries on the CK-RX65N V2. It provides a step-by-step guide to connecting the CK-RX65N V2 to AWS IoT Core and displaying MQTT messages.

Part one focuses on establishing the connection between AWS IoT Core and the CK-RX65N V2 to enable MQTT messaging.

Chapter's Title

00:00 Opening
00:23 AWS Setup

Watch the Video Series
