In addition to providing encryption functions that protect communications data, the Trusted Secure IP of the RX Family of 32-bit microcontrollers (MCUs) also protects the key that deciphers that encryption, and makes leaked communications data indecipherable, thus enabling safer communications for the Internet of Things (IoT) age.
| Encryption (Hardware Circuitry) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Common Key Encryption | Public Key Encryption | Hash Function | True Random Number Generator (TRNG) | Association of Unique ID with Encryption Key | Access Management Circuit | |||
| AES ECB/ CBC | AES GCM/ CMAC | TDES | RSA | SHA | ||||
| RX21A RX631 | lens | — | — | — | — | — | — | — |
| RX64M RX71M | lens | — | lens | — | lens | lens | — | — |
| RX23W RX231 RX66T RX72T Trusted Secure IP-Lite | lens | lens | — | — | — | lens | lens | lens |
| RX651 RX65N RX72M Trusted Secure IP | lens | lens | lens | lens | lens | lens | lens | lens |
| Remarks | Basic block cipher | Traditionally used common key encryption | Public key encryption frequently used in SSL, etc. | Used for tamper detection, etc. | Generates unpredictable random keys | Prevents falsification of encryption keys | Prevents illegal use of encryption and theft of encryption keys (The biggest feature of Trusted Secure IP) | |
RX65N/RX651 microcontrollers also support public key encryption and SHA, and can be used as an SSL communications accelerator.

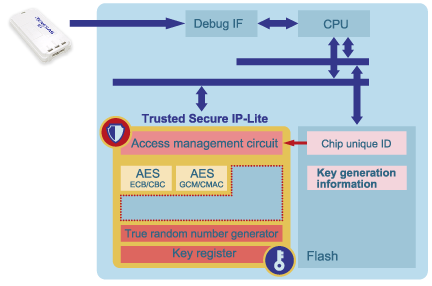

Trusted Secure IP-Lite (RX23W/RX231/RX66T/RX72T)

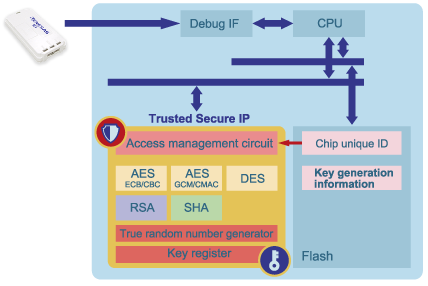

Trusted Secure IP (RX65N, RX651/RX72M)
RX security solution information is consolidated on the RX Security Solution page.
