概览
描述

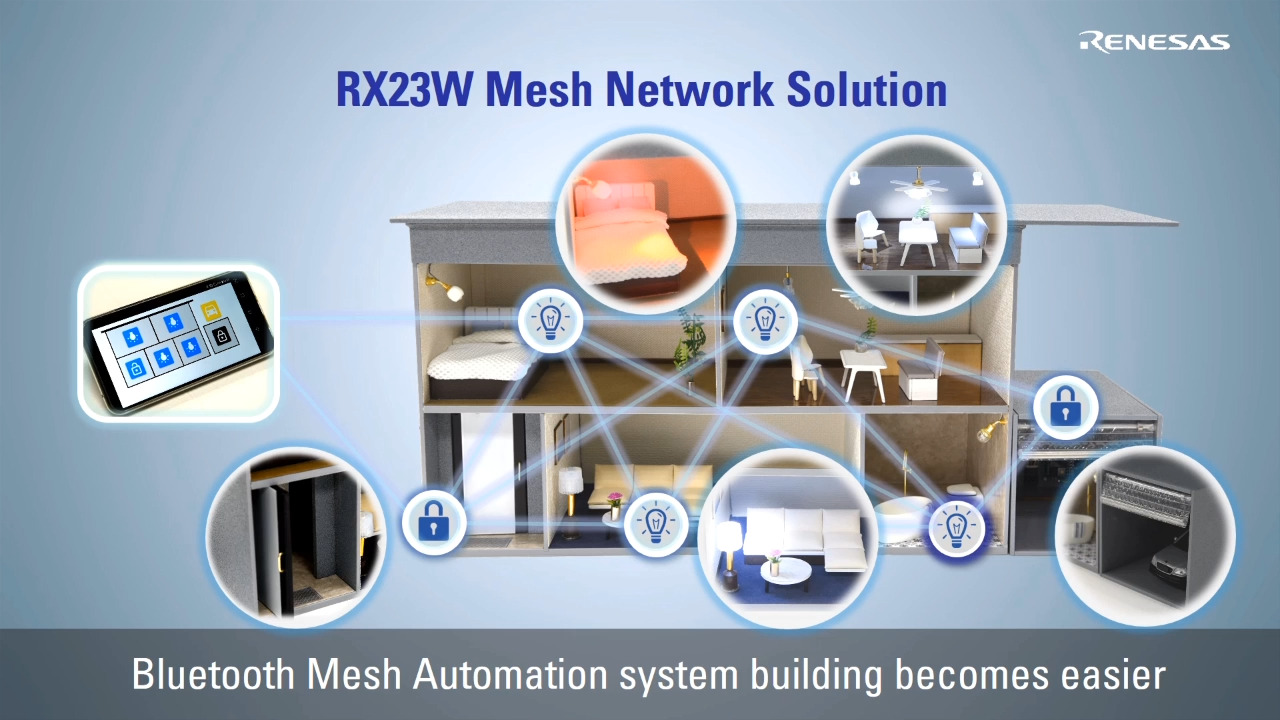

RX23W 集成了对低功耗蓝牙® 5.0及物联网设备至关重要的安全功能，以及触摸按键、USB、CAN等丰富的外设功能，是一种单芯片实现系统控制及无线通信的微控制器。RX23W MCU具有对低功耗蓝牙5.0远距离和Mesh网络的全功能支持，并提供出色的接收性能。
此外，RX23W产品阵营包括内置天线和振荡器的模块。尽管该模块的尺寸在业界最小，但是不妨碍使用微控制器外围功能引脚。该模块已通过日本、北美（FCC/ISED）和欧洲（CE）的无线电认证，能够节省用户的RF设计和无线电认证时间，从而缩短产品上市时间。
特性
- RXv2内核54MHz工作频率 (4.33CoreMark/MHz)
- 1.8V～3.6V工作电压
- 工作温度 -40～85 °C
- 程序闪存最大512KB、SRAM最大64KB
- 低功耗蓝牙 x1通道
- 内置蓝牙5.0兼容射频收发器和链路层
- 适用LE 1M PHY、LE 2M PHY、LE Coded PHY (125kbps, 500kbps)、LE 广告扩展
- 内置蓝牙专用AES-CCM（128位）加密电路
- USB2.0 主机/ 功能/OTG x1通道
- 全速（12Mbps）、低速（1.5Mbps）、同步传送、
- 支持BC（电池充电器）
- CAN x1通道
- ISO 11898-1 标准的CAN、最大1Mbps传送速度
- SD Host I/F x1通道
- 支持 SD 存储器/SDIO，1 或 4 位 SD 总线
- 自容式：通过单端子单键配置最多支持12个按键
- 互容式：通过 12 个端子的矩阵最大支持 36 个按键
- 增强的模拟功能 12位A/D转换器×14通道、12位D/A转换器×2通道
- Trusted Secure IP Lite (AES/TRNG)
- 模块产品尺寸
- 6.1mm × 9.1mm、0.5mm间距 (LGA-83pin)
产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| Bluetooth® Low Energy Protocol Stack for RX family Bluetooth v5.0 certified protocol stack [Target device: RX23W]
|
Protocol Stack | 瑞萨电子 |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | 瑞萨电子 |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | 瑞萨电子 |
| USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
|
USB | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| QE for BLE: Development Assistance Tool for Bluetooth® Low Energy Debugging support tool that specializes in Bluetooth® Low Energy system development [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | 瑞萨电子 |
| QE for Current Consumption: A Dedicated Tool for Current Measurement Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | 瑞萨电子 |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| Reality AI Utilities 用于 AI 开发和性能验证的往返工作流程，允许收集数据、优化模型并直接部署到 Renesas 硬件
|
Solution Toolkit | 瑞萨电子 |
| I²C Serial EEPROM Driver Device Drivers for I²C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
|
Serial Memory | 瑞萨电子 |
| SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
|
Serial Memory | 瑞萨电子 |
| JPEG Encode/Decode Software Library for RX Family JPEG Encode/Decode Software Library that comprises the JPEG Decoder and the JPEG Encoder
|
Imaging | 瑞萨电子 |
| SD Card Driver for RX Family SD Card Driver for RX Family (SDHI)
|
SD Card | 瑞萨电子 |
|
33 项目
|
||
样例程序
开发板与套件
评估
Target Board for RX23W
The Target Board for RX23W provides an entry point to evaluation, prototyping and developing for the RX23W MCU. Moreover, since this board incorporates an emulator circuit, you can use it for your own application design without the need for further tool investments. This product provides...
评估
Target Board for RX23W Module
The Target Board for RX23W Module provides an entry point to evaluation, prototyping and developing for the RX23W module. Moreover, since this board incorporates an emulator circuit, you can use it for your own application design without the need for further tool investments. This product...
入门
RSSK-RX23W
有效
RX23W Solution Starter Kit for Bluetooth® 5 Evaluation
The Renesas Solution Starter Kit for RX23W is the perfect starter kit for developers who are new to the RX23W (Code Flash 512KB, Pin Count 85-pin).
The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment from the Renesas website...
演示
电容式传感器应用演示套件
该演示套件使用瑞萨电子电容式触摸按键解决方案，通过单通道自电容电极和单通道屏蔽电极测量水位。 电极和储液罐需要用导体进行 GND 屏蔽，但线性值可用一个自电容电极通道测量。
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
支持
常见问题
-
如何为 RX23W 蓝牙专用时钟选择晶体振荡器
... 老化。 RX23W Group Tuning procedure of Bluetooth dedicated clock frequency (R01AN4762)"4. Crystal oscillator selection guide" ― "4.2 Frequency accuracy requirement for crystal oscillator"https://www.renesas.com/document/apn/rx23w-group-tuning-procedure-bluetooth-dedicated-clock-frequency-application-note?language=en Suitable Products
2021年11月16日 -
关于RX23W的单芯片产品和模块产品的区别
RX23W模块(R5F523W8CDLN/R5F523W8DDLN)相对于单芯片产品有以下不同之处。 内置天线或振荡器，无需RF设计。 已取得各国的电波法认证，因此可以节 ...
2021年4月6日 -
可购买 RX23W / RX23W 模块评估板的线上经销商
... bit-performance-efficiency-mcus/rtk5rx23w0c00000bj-target-board-rx23w RX23W 模块 (R5F523WxxDLN) 评估板 :Target Board for RX23W module (RTK5RX23W0C01000BJ)https://www.renesas.com/cn/zh/products/microcontrollers-microprocessors/rx-32-bit-performance-efficiency-mcus/rtk5rx23w0c01000bj-target-board-rx23w-module
2021年11月16日
视频和培训
Introducing high performance RX23W BT5.0 enabled MCU, ideal for system controller and provides robust security for IoT connected devices.
