Renesas Starter Kit+ for RX671
The Renesas Starter Kit+ for RX671 is the perfect starter kit for developers who are new to the RX671 (Code Flash 2MB, Pin Count 144-pin). The kit includes an LCD...
概览
简介
The RX671 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
Configuration

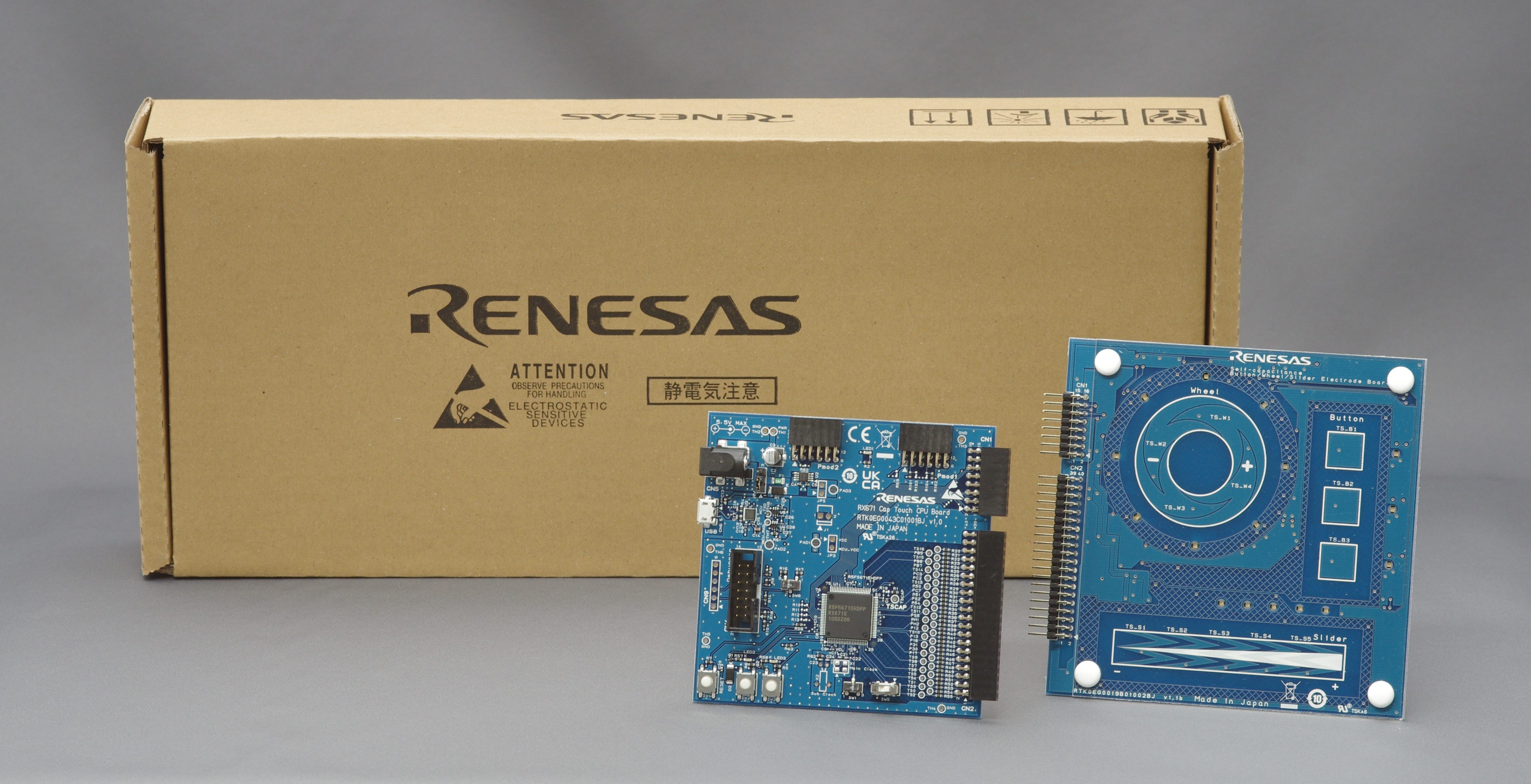

- RX671 CPU board
- Touch application board

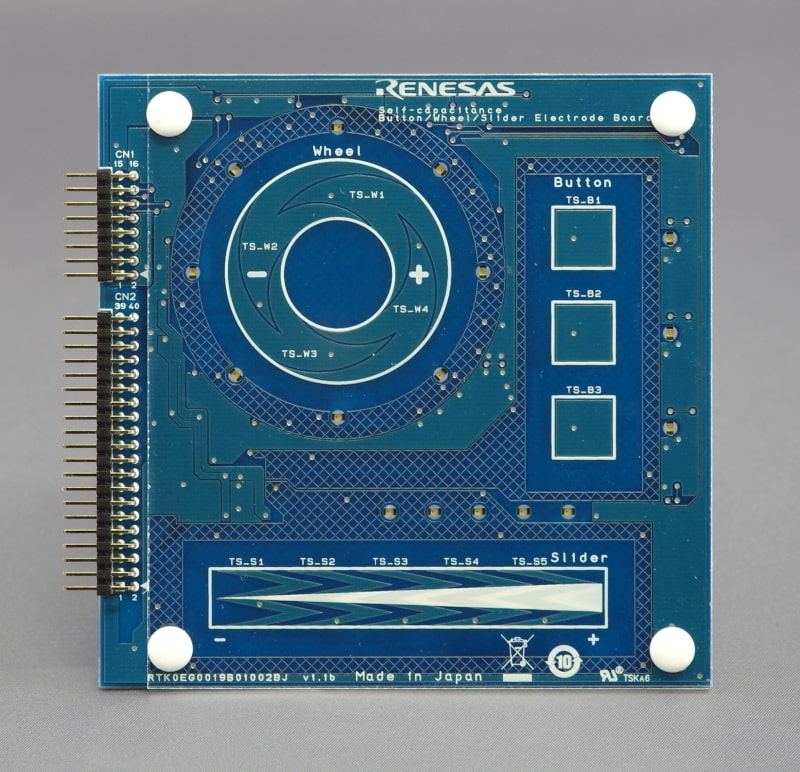

- Self-capacitance evaluation board built-in basics for capacitive touch: switches, slider and wheel
Support
The following items are available for download.
特性
- Use to evaluate various touch functions (button, slider, wheel)
- Simple prototyping
- Use as a reference when designing boards or software
- Easily adjust the sensitivity by using QE for Capacitive Touch
- Easy operation with intuitive interface
- Easy to develop touch interfaces even for beginners with GUI
- Automatically output adjusted source code
- Equipped with RX671 MCU (R5F5671EHDFP)
- Capacitive touch sensor (CTSUa) pin 17 channels available
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | 瑞萨电子 |
4 items
|
||
样例程序
相关评估板和套件
非接触式按键参考设计
非接触式按键参考设计使用瑞萨电子的电容式触摸解决方案，可以检测手指和手在接近，无需物理接触。 电极通过自电容检测手指的接近程度，并打开 LED。 该演示解决方案与所有类型的瑞萨电子电容式触摸 CPU 板兼容。
了解有关瑞萨电子非接触式按键解决方案的更多信息
非接触式按键电极板
特性
- 基于瑞萨电子的高灵敏度...
电容式传感器应用演示套件
该演示套件使用瑞萨电子电容式触摸按键解决方案，通过单通道自电容电极和单通道屏蔽电极测量水位。 电极和储液罐需要用导体进行 GND 屏蔽，但线性值可用一个自电容电极通道测量。
图像
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
Processing table
RTK0EG0044S01001BJ 有效
立即购买
|
Capacitive Touch Evaluation System for RX671 |
