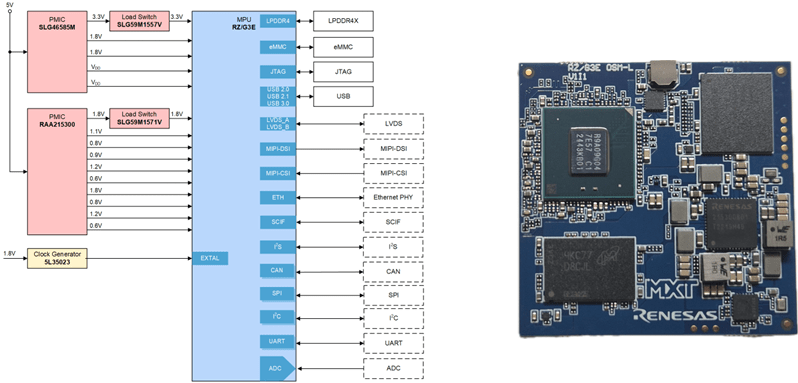

The MXT RZ/G3E OSM-L SoM integrates the RZ/G3E for high-performance edge computing, power, timing, and memory solutions into a compact, standardized form factor to simplify mass production and reduce bill of materials (BOM) complexity. Standardized interfaces on the system-on-module (SoM) support seamless integration of external peripherals, including displays, cameras, USB devices, sensors, audio modules, and more. To ease the SoM‘s evaluation, prototypes can be submitted soldered on an OSM-2-SMARC adapter, allowing simple operation on a standard-off-the-shelf SMARC carrier board.

图像

特性

  • Small form factor: compact 45x45mm OSM Size-L module
  • Evaluation kit containing OSM Size-L to SMARC adapter and SMARC carrier board
  • OS Support: embedded Linux with Yocto-based BSP enables customizable and maintainable software stacks for long-term deployment.
  • Memory & storage: 8GB LPDDR4X (optional 1GB, 2GB, or 4GB), 16GB eMMC (optional 4GB up to 64GB)
  • Wide operating temperature range from -40°C to 125°C
