封装信息
| Lead Count (#) | 3 |
| Pkg. Code | pkg_10757 |

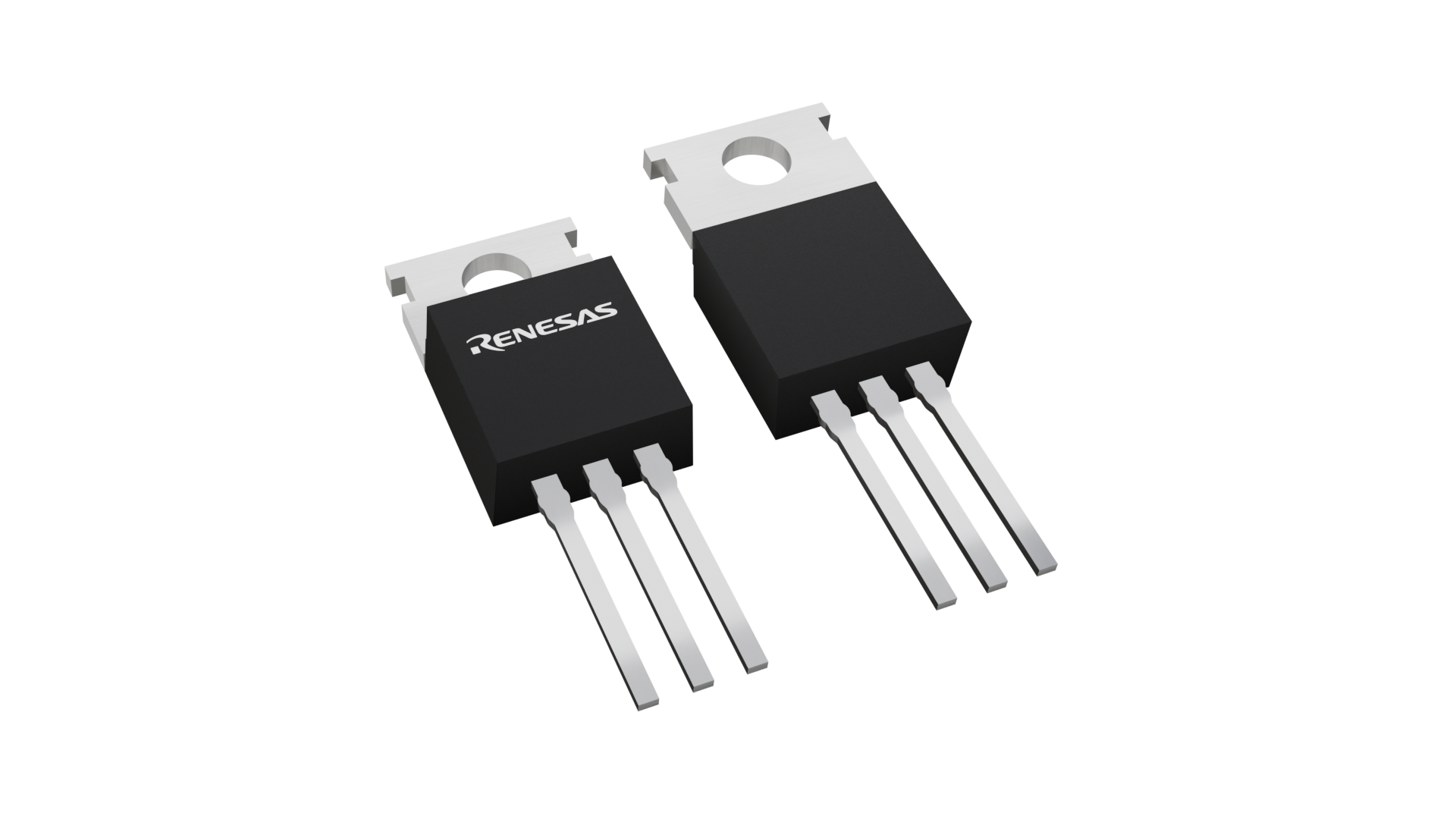

| Pkg. Type | TO-220 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8541.21.0095 |
| RoHS (N0604N-S19-AY) | 英语日文 |
产品属性
| Lead Count (#) | 3 |
| Carrier Type | Tube |
| Pb (Lead) Free | Yes |
| Country of Assembly | China, South Korea |
| Country of Wafer Fabrication | Japan |
| Price (USD) | 1ku | 1.125 |
| Application | Industrial, Consumer Use |
| Channels (#) | 1 |
| Ciss (Typical) (pF) | 4150 |
| ID (A) | 82 |
| Lead Compliant | No |
| Length (mm) | 10 |
| MOQ | 1000 |
| Mounting Type | Through Hole |
| Nch/Pch | Nch |
| Pch (W) | 116 |
| Pkg. Type | TO-220 |
| Qg typ (nC) | 75 |
| Qualification Level | Industrial |
| RDS (ON) (Max) @10V or 8V (mohm) | 6.5 |
| Simulation Model Available | Yes |
| Standard Pkg. Type | TO-220 |
| Tape & Reel | No |
| VDSS (Max) (V) | 60 |
| VGSS (V) | 20 |
| Vgs (off) (Max) (V) | 4.0 |
| Width (mm) | 9 |
描述
The N0604N is N-channel MOS Field Effect Transistor designed for high current switching applications.
