简介

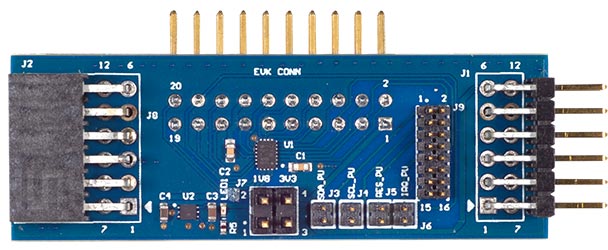

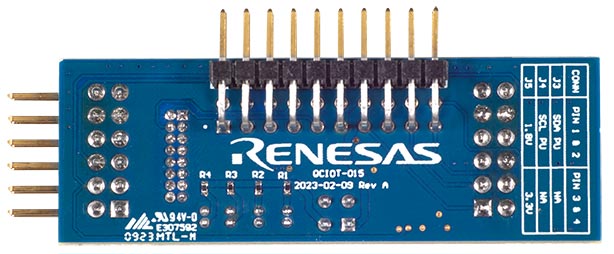

The QCIOT-SLG46826POCZ evaluation board enables quick prototyping of the GreenPAK™ SLG46826V programmable mixed-signal matrix. The QCIOT-SLG46826POCZ board is a part of the QuickConnect Platform.

The SLG46826V provides a small, low-power component for commonly used mixed-signal functions. The user creates the circuit design by programming the multiple-time non-volatile memory (NVM) to configure the interconnect logic, the IOs, and the macrocells of the SLG46826. Also, a dual power supply allows for the interfacing of two independent voltage domains. This highly versatile device features a wide variety of mixed-signal functions to be designed within a small, low-power single integrated circuit.

The board provides a Pmod™ connection for the onboard sensor to plug into any required MCU evaluation kit with a matching connector. The QCIOT-SLG46826POCZ board features Pmod connectors on both sides of the board to allow additional Pmod boards to connect in a daisy-chained solution with multiple devices on the same MCU Pmod connector.

特性

  • Multi-time programmable (MTP) GreenPAK that supports I2C
  • 3.3V/1.8V power-operated
  • Compatible with the QuickConnect (QCIOT) system

应用

文档

类型 文档标题 日期
手册 - 开发工具 PDF 12.77 MB
应用文档 PDF 794 KB
原理图 PDF 1.58 MB
