QS33X257

过时

High-Speed CMOS QuickSwitch 24:12 Mux/Demux

概览

The QS33X257 is a high-speed CMOS TTL-compatible 24:12 multiplexer/demultiplexer. The QS33X257 is functionally compatible to three of the QuickSwitch versions of the 74F257, 74FCT257, and the 74ALS/AS/LS257 quad 2:1 multiplexers. The low ON-resistance of the QS33X257 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS33X257 operates at -40 °C to +85 °C.

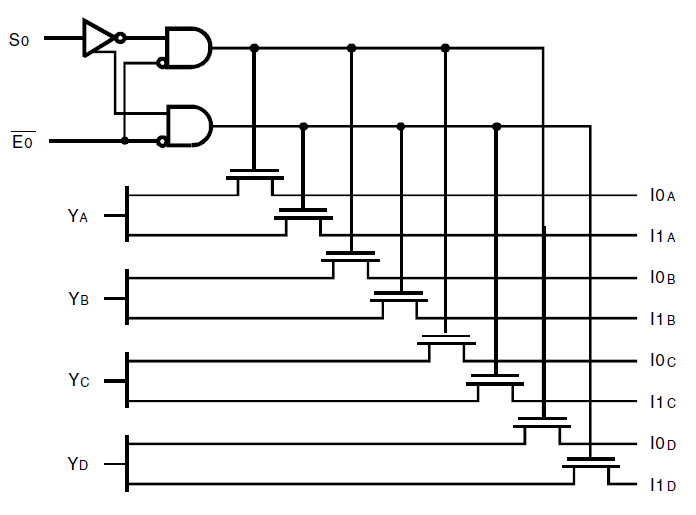

QS33X257 - Block Diagram
QS33X257 - Block Diagram
  • Enhanced N-channel FET with no inherent diode to VCC
  • Bidirectional signal flow
  • 24:12 Mux/Demux switches connect inputs to outputs
  • Individual controls for each bank
  • Zero propagation delay, zero ground bounce
  • Undershoot clamp diodes on all switch and control inputs
  • TTL-compatible control inputs
  • Available in a 48-pin QVSOP package

文档

设计和开发

ECAD 模块

点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。

扩展 ECAD 模块
Diagram of ECAD Models

模型
类型 文档标题 日期
模型 - SPICE
QS33X257 Hspice Model
登录后下载 ZIP 6 KB
模型 - IBIS
QS33X257 IBIS Model
ZIP 4 KB
