概览
描述
R2A20134SP is a LED lighting controller IC. Control method is selectable for each system demand, fixed frequency or zero current detection mode. High accuracy LED current feed-back system makes more efficient LED performance. Critical Conduction Mode PFC control realizes high power factor and zero current switching. And Peak Current Mode makes it possible to reduce external parts and realize low system cost.
特性
- Absolute Maximum Ratings Supply voltage Vcc: 24 V Junction temperature Tj: –40 to +150°C
- Electrical characteristics UVLO operation start voltage VH: 12 V ± 0.8 V UVLO operation shutdown voltage VL: 9.2 V ± 0.7 V UVLO hysteresis voltage Hysuvl: 2.8 V ± 0.7 V

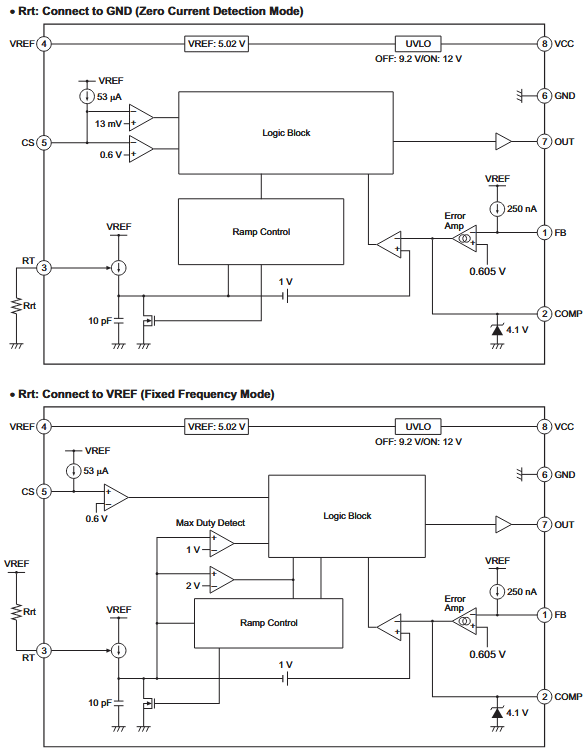

- Functions Selectable for each targeted system, 1. Zero current detection mode (When Rrt is connected by GND) 2. Fixed frequency mode (When Rrt is connected by Vref) Adjustable for Switching frequency (When Rrt is connected by Vref) Overcurrent protection Package lineup: Pb-free SOP-8 (JEDEC)
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 269 KB 日本語 | |
| 应用说明 | PDF 520 KB 日本語 | |
| 应用说明 | PDF 538 KB 日本語 | |
| 应用说明 | PDF 500 KB 日本語 | |
| 应用说明 | PDF 79 KB 日本語 | |
| 传单 | PDF 2.22 MB | |
6 项目
|
||
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
