封装信息
| CAD 模型: | View CAD Model |

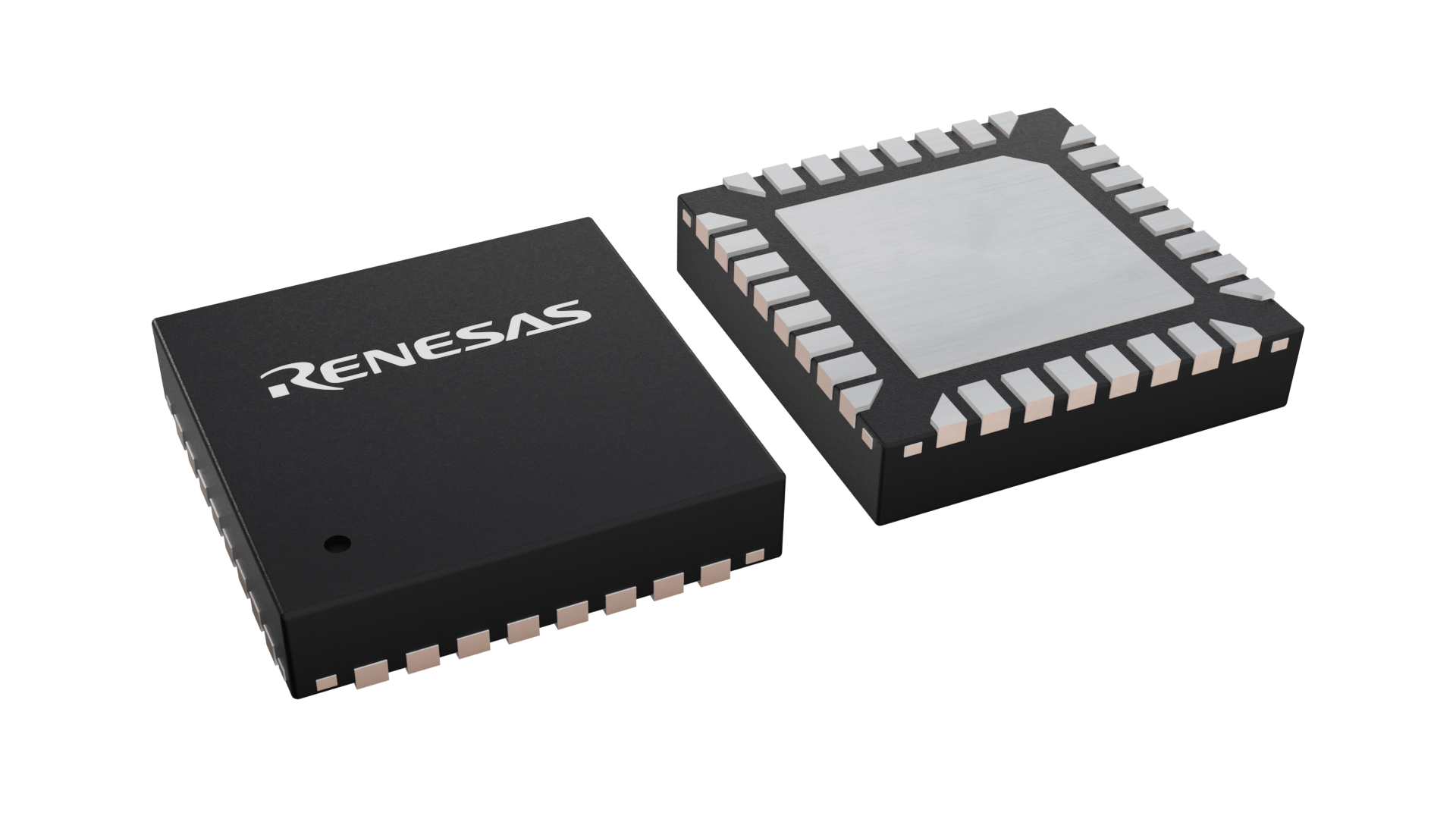

| Pkg. Type: | HVQFN |
| Pkg. Code: | pkg_20160 |
| Lead Count (#): | 32 |
| Pkg. Dimensions (mm): | 4 x 4 x 0.9 |
| Pitch (mm): | 0.4 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
产品属性
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Country of Assembly | TAIWAN |
| Country of Wafer Fabrication | JAPAN |
| Audible Noise | No |
| Bi-direction | No |
| Clock Out | No |
| Dither | No |
| Input Voltage Range (V) | 2.7 - 5.5 |
| Lead Compliant | No |
| Lead Count (#) | 32 |
| Length (mm) | 4 |
| MOQ | 1 |
| Parallelable | No |
| Parametric Category | USB-C & Power Delivery |
| Pitch (mm) | 4 |
| Pkg. Dimensions (mm) | 4 x 4 x 0.9 |
| Pkg. Type | HVQFN |
| Price (USD) | $1.36 |
| Product Type | USB Type-C Port Manager |
| Qualification Level | Standard |
| Tape & Reel | No |
| Temp. Range (°C) | -40 to +85 |
| Thickness (mm) | 0.9 |
| Width (mm) | 4 |
有关 R9A02G015 的资源
描述
R9A02G015 是一款基于 MCU 的 Type-C 端口管理器 (TCPM)，它是通用串行总线 (USB) 供电 (PD) 系统的重要组成部分。 R9A02G015 实现了 TCPM – USB PD 策略引擎功能，符合 USB PD 3.1 规范。 配合USB PD系统中的Type-C端口控制器（TCPC）。
R9A02G015，TCPM可以与任何符合Type-C端口控制器接口（TCPCi）规范的TCPC配合。
