特性

  • Compliant with USB Power Delivery Specification Revision 3.1 and USB Type-C® Cable and Connector Specification Revision 2.1.
    • USB-IF Silicon Certified: TID = 8183
    • USB certified TCPM firmware, supports USB PD 3.1 SPR and EPR
  • In addition to TCPM, the firmware supports:
    • Varies Renesas DC/DC VRs and Battery charger products
    • Muti-USB ports (up to 3)
    • Customization for USB data, DP Alt-mode, MUX, Retimer, CPU/APU/EC control

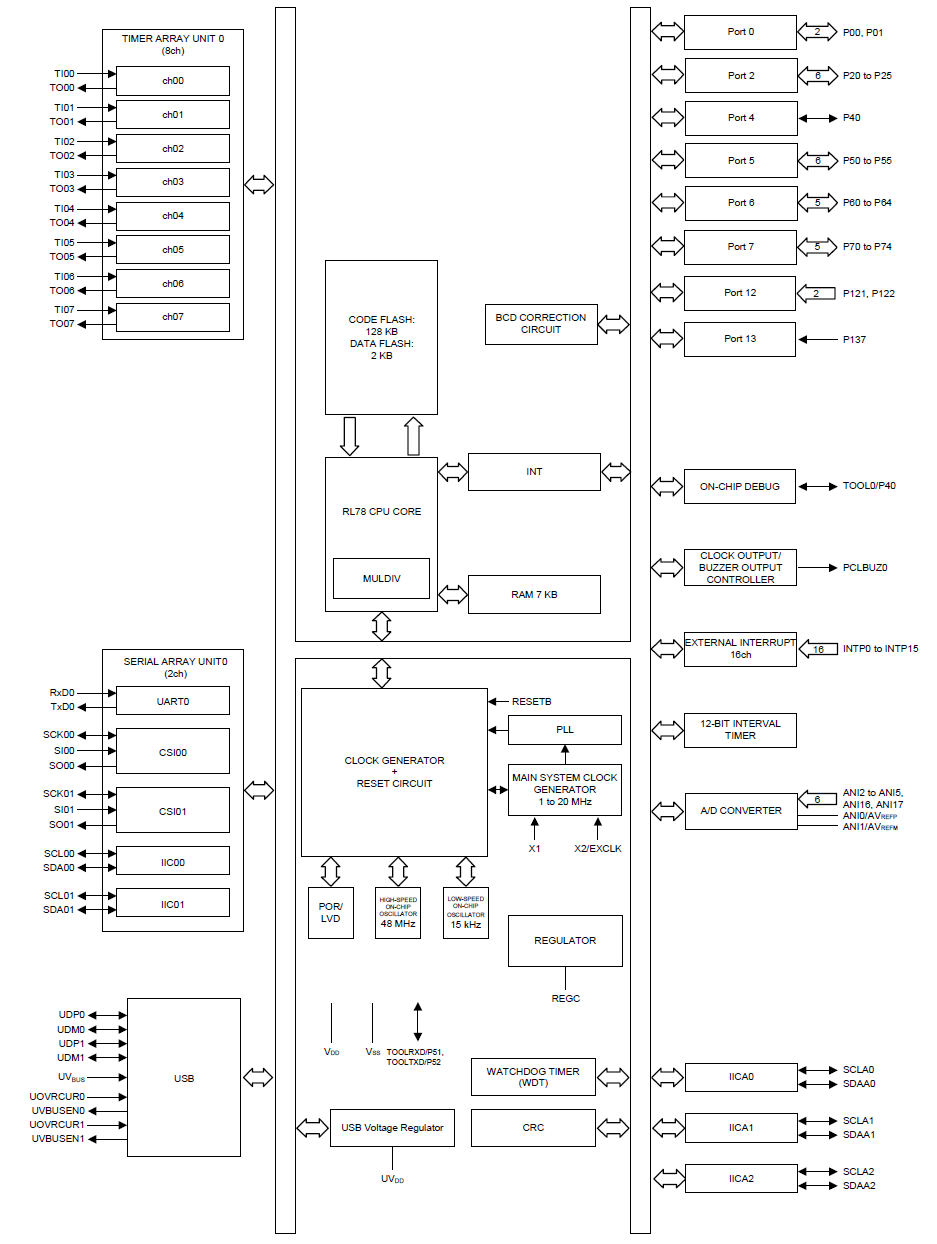

  • Industry’s leading lowest level of power consumption RL78 core MCU
    • Max 24MHz operating frequency
    • 12KB Flash / 7KB RAM / 2KB Data Flash
    • USB 2.0 Host/Function with BC1.2 (R9A02G0150)
    • Up to 2/3-ch I2C (R9A02G0150/R9A02G0151)
    • Timer array unit support 2-ch CSI / 1-ch UART / 2-ch Simplified I2C
    • ADC support –ch analog input
    • 8-ch 16-bit timer, 1-ch 12-bit timer, 1-ch Watchdog timer
    • Operating voltage 2.7V to 5.5V
    • 32-Lt 4x4 QFN
  • Product option:
    • R9A02G0150 – w/ USB 2.0 Host/Function
    • R9A02G0151 – w/o USB

描述

R9A02G015 是一款基于 MCU 的 Type-C 端口管理器 (TCPM),它是通用串行总线 (USB) 供电 (PD) 系统的重要组成部分。 R9A02G015 实现了 TCPM – USB PD 策略引擎功能,符合 USB PD 3.1 规范。 配合USB PD系统中的Type-C端口控制器(TCPC)。

R9A02G015,TCPM可以与任何符合Type-C端口控制器接口(TCPCi)规范的TCPC配合。

产品参数

属性
Product Type USB Type-C Port Manager
Input Voltage Range (V) 2.7 - 5.5
Temp. Range (°C) -40 to +85
Qualification Level Standard

封装选项

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
HVQFN 4 x 4 x 0.9 32 4

应用方框图

Interactive block diagram of the flexible battery system supports 2-7 Li-ion cells and enables direct charging from USB-C ports and power bank functionality.
240W USB Type-C 电池系统
这款灵活电池系统支持 2-7 节锂离子电池,具有 USB-C 充电接口和移动电源功能。
Interactive block diagram of the USB charger system delivers up to 240W and features integrated USB-C port controllers.
140W-240W 双端口 USB Type-C 和 USB PD 充电器
这款 USB 充电器系统可提供高达 240W 的功率,实现快速灵活的双 USB-C 充电,并具有强大的安全防护机制。
140W charger battery management block diagram features a 30V buck-boost design for 3- to 4-cell battery packs and supports USB PD EPR.
USB PD 充电器电池管理
高效 USB PD 充电器电池管理系统支持高达 240W 功率输出、多电池组管理及电量计量。

其他应用

  • USB 插座,便携式充电器/移动电源
  • 交流适配器、USB PD 集线器、PC
  • 移动设备(智能手机、平板电脑)、扩展坞
  • PC 外围设备(显示器、打印机、路由器、外置硬盘)
  • 家用电子产品(数字电视、机顶盒、家庭网关)
  • POS、测量仪器
  • USB Type-C® Cablet 等
