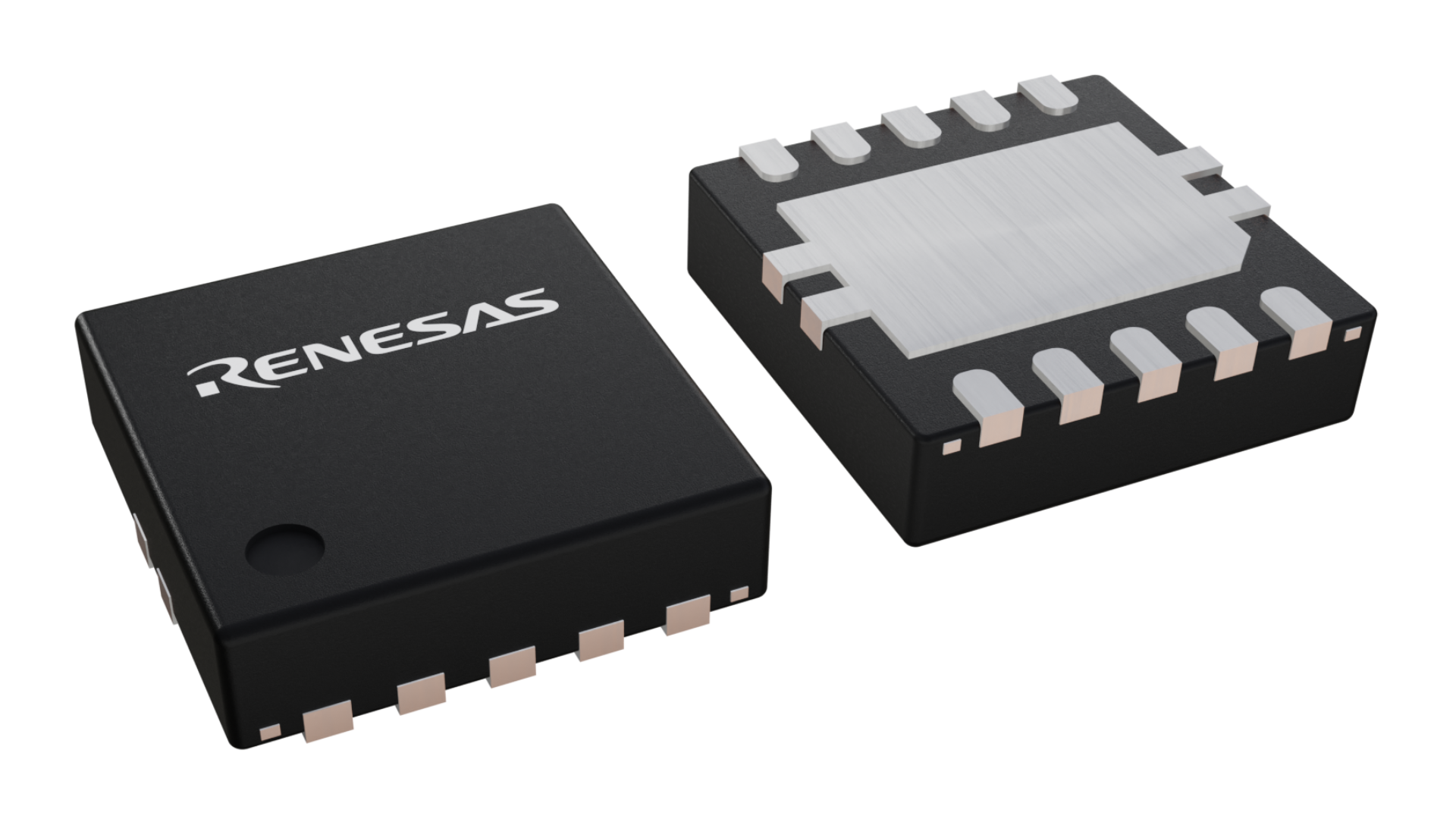

封装信息
| CAD 模型: | View CAD Model |
| Pkg. Type: | DFN |
| Pkg. Code: | LCN |
| Lead Count (#): | 10 |
| Pkg. Dimensions (mm): | 3.00 x 3.00 x 0.90 |
| Pitch (mm): | 0.5 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| RoHS (RAA214020GNP#MD0) | 下载 |
| ECCN (US) | |
| HTS (US) |
产品属性
| Lead Count (#) | 10 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Nickel/Palladium/Gold-e4 |
| Drop Out Voltage (Typical) | 500mV |
| Enable/Shutdown | Yes |
| External Bias | No |
| Fixed Output Voltage Option | No |
| Input Voltage (Max) (V) | 5.5 |
| Input Voltage (Min) (V) | 2.7 |
| Length (mm) | 3 |
| Longevity | 2033 12月 |
| MOQ | 250 |
| Noise (10Hz to 100kHz) (μVrms) | 5.7 |
| O/P Voltage Accuracy (±%) | 1.25 |
| Output Current 1 (Max) (A) | 2 |
| Output Voltage (Max) (V) | 5 |
| Output Voltage (Min) (V) | 0.9 |
| PGOOD Output | Yes |
| PSRR (db) | 81 |
| Parametric Category | Linear Regulators (LDO) |
| Pitch (mm) | 0.5 |
| Pkg. Dimensions (mm) | 3.0 x 3.0 x 0.90 |
| Pkg. Type | DFN |
| Qualification Level | Standard |
| Quiescent Current | 195 |
| Thickness (mm) | 0.9 |
| Width (mm) | 3 |
有关 RAA214020 的资源
描述
RAA214020 是一款超低噪声、高 PSRR 的低压差稳压器。 该 LDO 可在 2.7V 至 5.5V 的输入电压范围内工作，并可提供最大 2A 的负载。 输出可通过高于 0.9V 的外部反馈电阻器进行调节。
