封装信息
| CAD 模型: | View CAD Model |

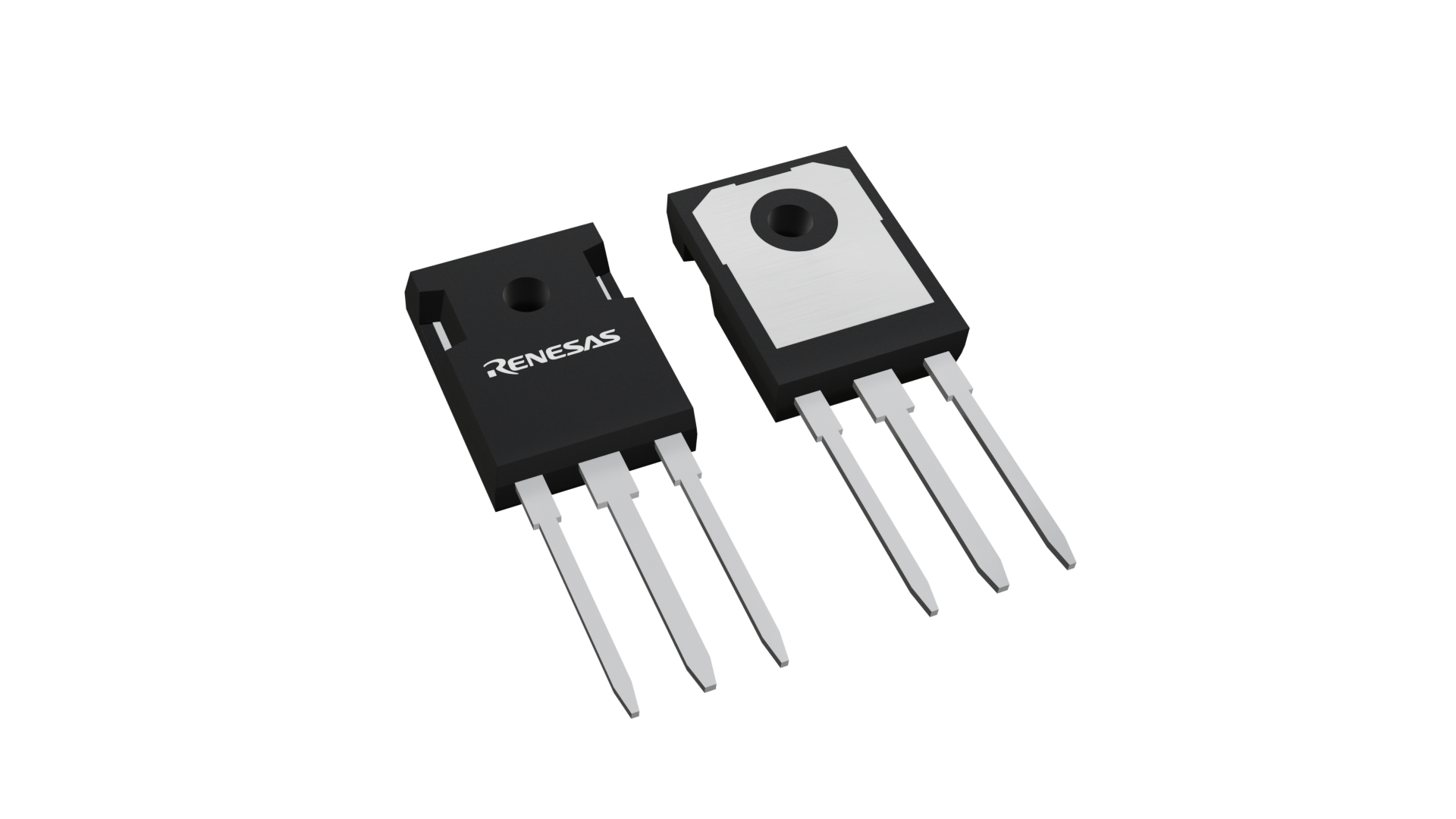

| Pkg. Type: | TO-247plus |
| Pkg. Code: | pkg_11884 |
| Lead Count (#): | 3 |
| Pkg. Dimensions (mm): | |
| Pitch (mm): |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| RoHS (RBN75H125S1FP4-A0#CB0) | 英语日文 |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | TO-247plus |
| Lead Count (#) | 3 |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| Application | Inverter |
| Channels (#) | 1 |
| Configuration | Built-In FRD |
| FRD Vf (V) | 2.4 |
| FRD trr (ns) | 245 |
| IC @100 °C (A) | 75 |
| IC @25 °C (A) | 150 |
| Ic (Peak) (A) | 300 |
| Lead Compliant | No |
| Length (mm) | 21 |
| MOQ | 1 |
| Mounting Type | Through Hole |
| Pc (W) | 517 |
| Pch (W) | 517 |
| Price (USD) | $20.7 |
| Qualification Level | Industrial |
| Series Name | RBNxxH125S1 Series |
| Simulation Model Available | Yes |
| Tape & Reel | No |
| VCE (sat) (V) | 1.8 |
| VCES (V) | 1250 |
| VDSS (Max) (V) | 1250 |
| Width (mm) | 16 |
| tf (Typical) (µs) | 0.096 |
| tsc (μs) | 10 |
有关 RBN75H125S1FP4-A0 的资源
描述
RBN75H125S1FP4-A0 1250V、75A 沟槽绝缘栅双极晶体管（IGBT）提供低集电极至发射极饱和电压、内置快速恢复二极管（FRD），可用于电源开关应用。 该器件采用 TO-247A 封装。
