封装信息
| CAD 模型: | View CAD Model |

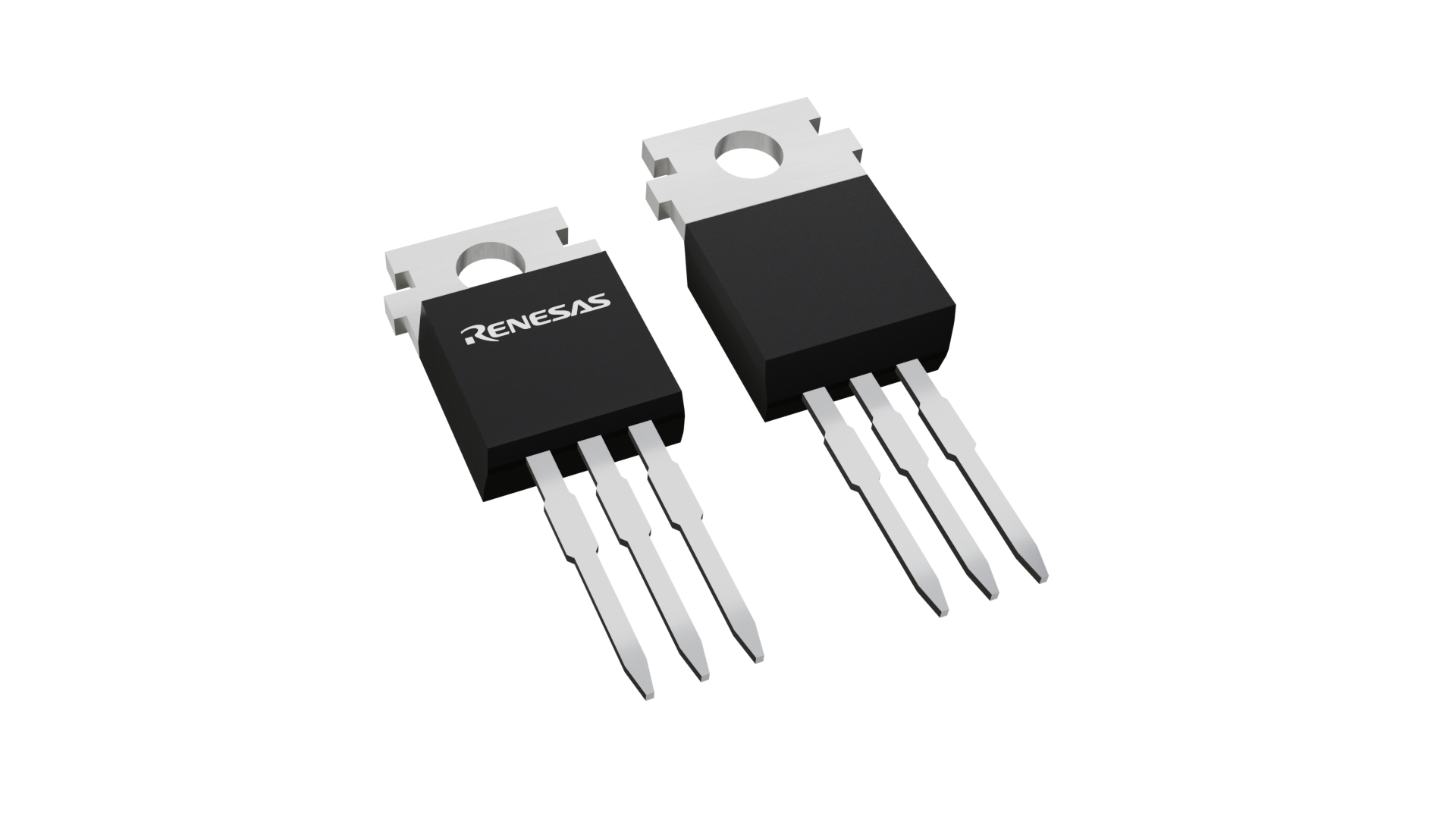

| Pkg. Type: | TO-220AB |
| Pkg. Code: | pkg_6891 |
| Lead Count (#): | 4 |
| Pkg. Dimensions (mm): | |
| Pitch (mm): |
环境和出口类别
| Pb (Lead) Free | Yes |
| RoHS (RJP6085DPN-00#T2) | 英语日文 |
| Moisture Sensitivity Level (MSL) | |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | TO-220AB |
| Lead Count (#) | 4 |
| Carrier Type | Tube |
| Pb (Lead) Free | Yes |
| Channels (#) | 1 |
| IC @25 °C (A) | 40 |
| Ic (Peak) (A) | 80 |
| Lead Compliant | No |
| MOQ | 1 |
| Pch (W) | 178.5 |
| Tape & Reel | No |
| VCE (sat) (V) | 2.65 |
| VCES (V) | 600 |
| VDSS (Max) (V) | 600 |
| tf (Typical) (µs) | 0.04 |
有关 RJP6085DPN-00 的资源
描述
Support is limited to customers who have already adopted these products.
IGBT 600V 40A TO-220AB
