RL78/G16 Block Diagram

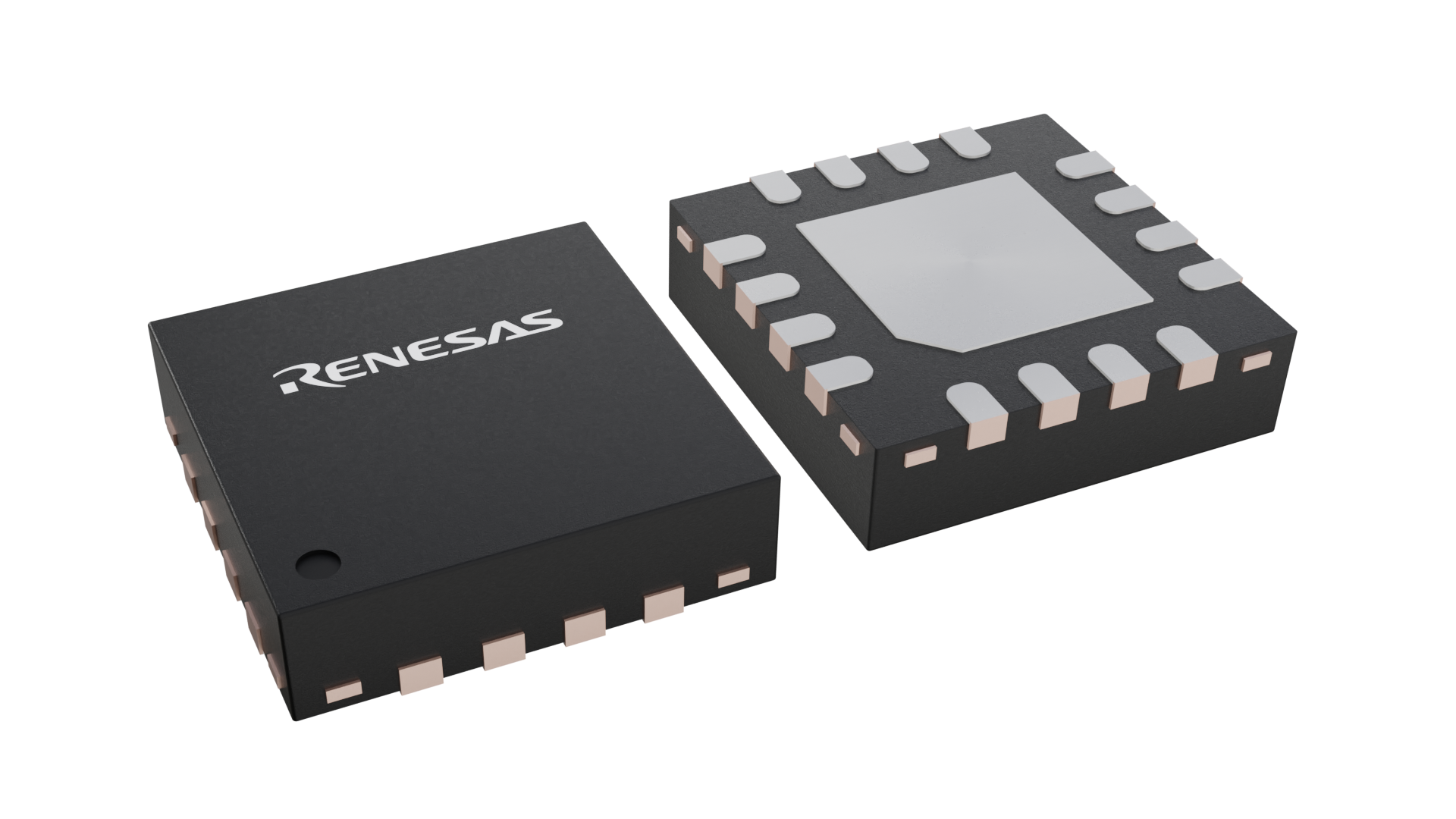

3D illustration featuring top and bottom views of HWQFN IC chip package with 16 lead count.
RL78/G16 Block Diagram
3D illustration featuring top and bottom views of HWQFN IC chip package with 16 lead count.

R5F1214AANA#00

有效
这款微型小引脚通用微控制器配备电容式传感器单元，特别适合家用电器和高温环境操作要求
RL78/G16 Data SheetRL78/G16 User's Manual: HardwareRL78/G16 Guide for Engineer有关 RL78/G16 的所有信息

封装信息

CAD 模型: View CAD Model
Pkg. Type: HWQFN
Pkg. Code: pkg_20099
Lead Count (#): 16
Pkg. Dimensions (mm): 3 x 3 x 0.8
Pitch (mm): 0.5

环境和出口类别

Moisture Sensitivity Level (MSL) 3
ECCN (US) EAR99
HTS (US) 8542.31.0020
RoHS (R5F1214AANA#00) 英语日文
Pb (Lead) Free Yes

产品属性

Longevity 2035 12月
Carrier Type Full Carton (Tray)
Family Name RL78
Series Name RL78/G1x
Group Name G16
CPU Architecture RL78
Main CPU RL78-S2
Sub CPU No
Floating Point Unit No
Bit Length 16
Program Memory (KB) 16
Data Flash (KB) 1
RAM (KB) 2
ECC SRAM No
Lead Count (#) 16
Pkg. Type HWQFN
Pitch (mm) 0.5
Pkg. Dimensions (mm) 3 x 3 x 0.8
Number of Supply Voltage(s) (#) 1
Supply Voltage (V) 2.4 - 5.5
I/O Ports 14
DMAC or DTC No
DMA (ch) 0
Temperature Sensor (ch) (#) 1
Power-On Reset Yes
Watchdog Timer (ch) 1
External Memory Bus (bit) No
DRAM I/F No
3D GPU No
Accelerator No
MOQ 3920
Temp. Range (°C) Ta = -40 to +85
External Interrupt Pins (#) 8
LVD or PVD Yes
Operating Freq (Max) (MHz) 16
Sub-clock (32.768 kHz) Yes
On-chip Oscillator Yes
Ethernet speed No
Ethernet (ch) 0
EtherCat (ch) (#) 0
USB Ports (#) 0
USB FS (host ch/device ch) ( 0 / 0 )
USB HS (host ch/device ch) ( 0 / 0 )
USB SS (host ch/device ch) ( 0 / 0 )
PCI Express (generation and ch) No
SCI or UART (ch) 2
SPI (ch) 2
QSPI (ch) 0
OSPI (ch) 0
I2C (#) 3
I3C (ch) 0
CAN (ch) 0
CAN-FD (ch) 0
Wireless No
IrDA No
LIN (#) 0
SDHI (ch) 0
High Resolution Output Timer No
PWM Output (pin#) 7
32-Bit Timer (ch) 0
16-Bit Timer (ch) (#) 8
8-Bit Timer (ch) 0
Standby operable timer No
Asynchronous General Purpose Timer / Interval Timer (ch) 1
RTC Yes
16-Bit A/D Converter (ch) 0
14-Bit A/D Converter (ch) 0
12-Bit A/D Converter (ch) 0
10-Bit A/D Converter (ch) 7
24-Bit Sigma-Delta A/D Converter (ch) 0
16-Bit D/A Converter (ch) 0
12-Bit D/A Converter (ch) 0
10-Bit D/A Converter (ch) (#) 0
8-Bit D/A Converter (ch) 0
Analog Comparator (ch) 2
OPAMP (ch) (#) 0
PGA (ch) 0
Capacitive Touch Sensing Unit (ch) 7
Graphics LCD Controller No
MIPI Interfaces (DSI) (ch) 0
MIPI Interfaces (CSI) (ch) 0
Camera I/F (Parallel) No
Image Codec No
2D Drawing Engine No
Segment LCD Controller No
SSI (ch) 0
Security & Encryption No
Debug Interface Single wire serial
Moisture Sensitivity Level (MSL) 3
Country of Assembly TAIWAN
Country of Wafer Fabrication JAPAN
12-Bit Timer (ch) 1
32-Bit High Res Timer (ch) 0
ADC 10-bit/8-bit x 7-ch
Asynchronous General Purpose Timer (ch) 0
Bit Size 16
CPU RL78
DAC No
DMA No
DTC (ch) 0
Ethernet No
Family Name RL78
Group Name G16
High-Speed Analog Comparator (ch) 0
Human Machine Interface Capacitive Sensing Unit 7ch
Lead Compliant Yes
Length (mm) 3
Low-Power Analog Comparator (ch) 0
PLL No
Pb (Lead) Free Yes
SPI (#) 2
Tape & Reel No
Thickness (mm) 0.8
Timer 12-bit x 1-ch, 16-bit x 8-ch
UART (#) 2
USB No
USBFS (ch) 0
USBHS (ch) 0
Width (mm) 3

描述

RL78/G16微控制器是一款通用微控制器，搭载工作频率为16MHz的电容式触摸通道。我们提供丰富的产品线，包括10引脚产品在内，在触摸微控制器中，这是瑞萨电子最小的引脚封装。此外，它还配备了功能安全的硬件，有助于用户通过家用电器安全标准IEC/UL60730认证。此外，由于它内置高精度（±1.0%）的高速片上振荡器、数据闪存、丰富的串行接口和比较器，适合要求节省空间的应用场合。评估板（Fast Prototyping Board）只需连接USB线即可编写和调试程序、智能配置器（Smart Configurator）可通过GUI简化设计、电容式触摸评估系统可缩短触摸界面开发周期（评估板、电容式触摸传感器开发支持工具QE for Capacitive Touch） 、以及Arduino库等，这些为RL78/G16提供了丰富的开发环境。它与现有的RL78系列兼容，可无缝切换，适用于从家电、消费类电子产品到工业设备的广泛用途。
