封装信息
| CAD 模型: | View CAD Model |

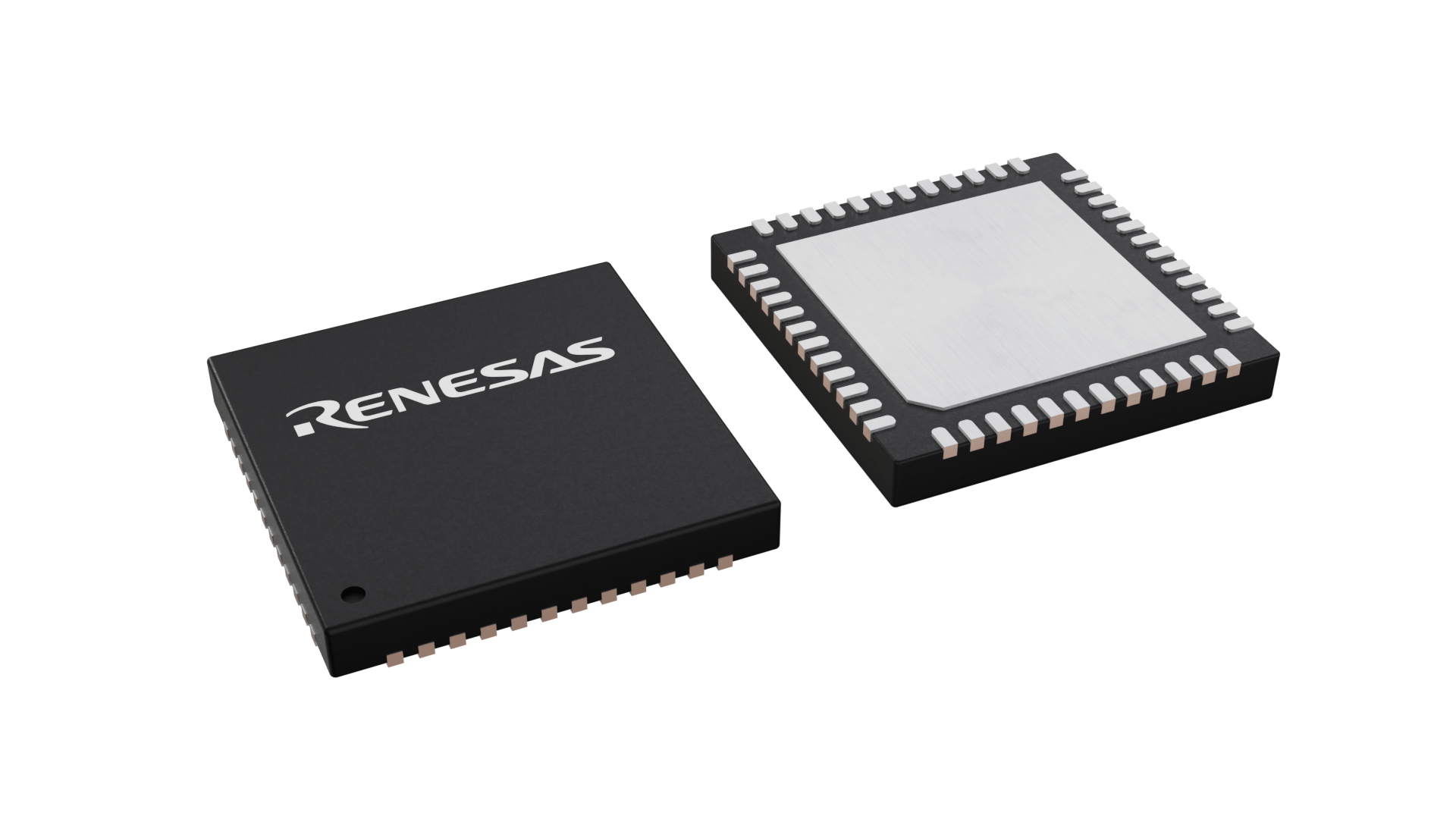

| Pkg. Type: | LQFN |
| Pkg. Code: | QV0048AD |
| Lead Count (#): | 48 |
| Pkg. Dimensions (mm): | 6.0 x 6.0 0.4 pitch |
| Pitch (mm): | 0.4 |
环境和出口类别
| Pb (Lead) Free | |
| Moisture Sensitivity Level (MSL) | |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | LQFN |
| Lead Count (#) | 48 |
| Temp. Range (°C) | -40 to +85°C |
| BRAM (kbit) | 32 |
| Configuration Modes | SPI Controller, SPI Target, OTP |
| D Flip-flops (DFFs) (#) | 1120 |
| Distributed Memory (kbit) | 5 |
| GPIOs (#) | 40 |
| LVDS Channels (#) | 3 |
| Look-up Table (LUTs) | 1120 |
| Memory Type | OTP |
| On-chip Oscillator | Yes |
| On-chip Oscillator Freq. | 50MHz / 3MHz |
| PLLs | 1 |
| Pkg. Dimensions (mm) | 6.0 x 6.0 0.4 pitch |
| Sleep/Reset Mode Current (µA) | 77 |
| Special Features | Sleep Mode,Fast Route,Bitstream AES Decryption,Boot Control |
| Static State Iddc (µA) | 118 |
| Vddc | 1.05 - 1.15 |
| Vddio | 1.71 - 3.465 |
| Vddio Domains (#) | 2 |
有关 SLG47912 的资源
描述
SLG47912是一款可广泛使用的小体积、低功耗的FPGA器件。 用户通过烧录芯片内部的一次性可编程（OTP）非易失性内存（NVM）或通过SPI接口提供比特流来配置FPGA内核、IO引脚和宏单元从而创建电路设计。 这种高度通用的器件能够支持广泛的FPGA应用。
