特性
- 5V/3A and 12V/1.25A load switches with common output
- Wide operating input voltage range: VIN1: 4V to 5.5V, VIN2: 4V to 13.2V
- Low typical RDSON: 40 mΩ for Channel 1 and 67mΩ for Channel 2
- Ideal diode behavior during switchover
- True reverse-current blocking
- Individual channel enable control
- Input undervoltage lockout
- Input overvoltage protection
- Over-temperature protection
- Resistor-adjustable active current limit protection for each channel
- Internal short-circuit current limit
- Open-drain Fault FLAG output
- Output discharge when OFF and during switchover
- Robust ESD capability
- 2kV HBM and 1kV CDM
- 8kV air discharge and 4kV contact discharge under IEC 61000-4-2
- 2.0mm x 2.5mm, 0.5mm pitch, 12L FC-QFN
- Pb-free/Halogen-free/RoHS-compliant
描述

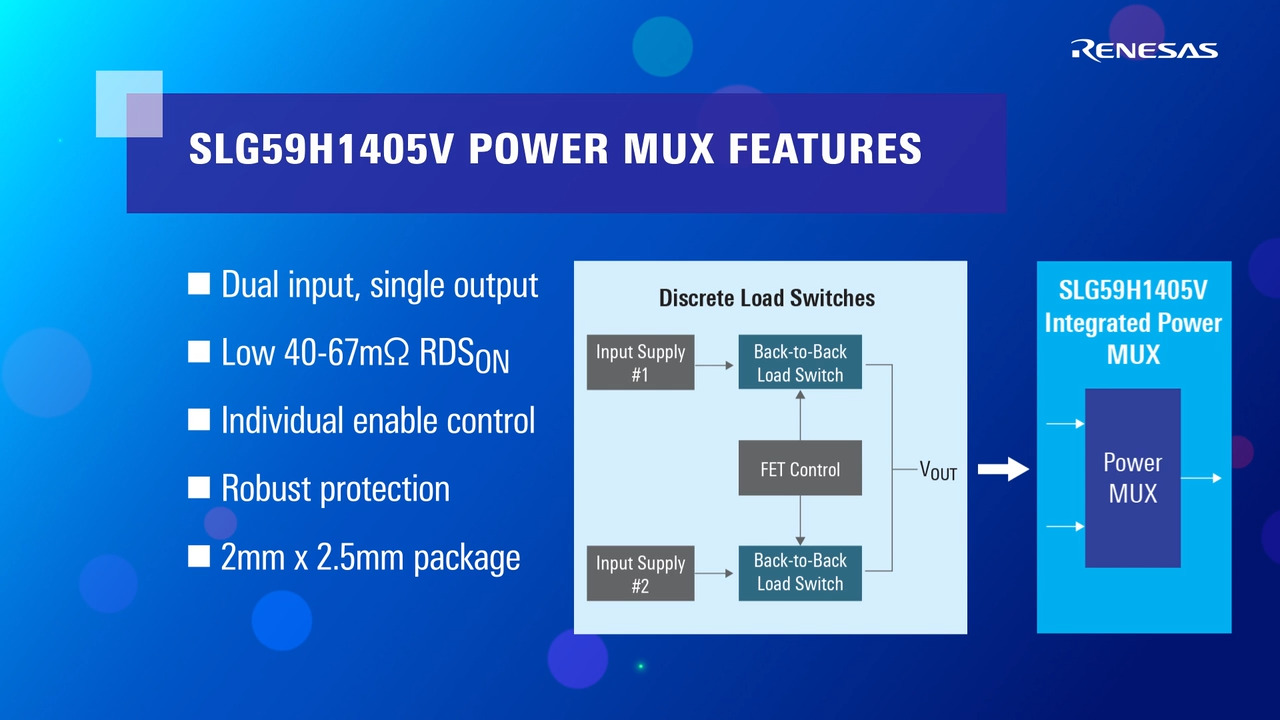

The SLG59H1405V is designed for 5V/12V manual switchover power multiplexer (MUX) applications. It includes one 3A-rated and one 1.25A-rated load switch, making it ideal for various systems with multiple power sources. The device offers manual selection, seamless transitions between power inputs, and multiple protection features.
产品参数
| 属性 | 值 |
|---|---|
| FET Pass Device Type | Power MUX |
| VIN Channel 1 min. (V) | 4 |
| VIN Channel 1 max. (V) | 5.5 |
| Input Quiescent Current Channel 1, typ (µA) | 290 |
| Input Quiescent Current Channel 1, max (µA) | 400 |
| Input Quiescent Current when OFF Channel 1, typ (µA) | 4 |
| Input Quiescent Current when OFF Channel 1, max (µA) | 10 |
| Input Quiescent Current Channel 2, typ (µA) | 160 |
| Input Quiescent Current Channel 2, max (µA) | 400 |
| Input Quiescent Current when OFF Channel 2, typ (µA) | 0.5 |
| Input Quiescent Current when OFF Channel 2, max (µA) | 1 |
| RDSON (Typ) Channel 1 (mΩ) | 40 |
| IDS Channel 1 (A) | 3 |
| Enable | Active High |
| Output Voltage Slew Rate set by | Internally Fixed |
| Discharge Circuit | Yes |
| Undervoltage Protection | Yes |
| Over Voltage Protection | Yes |
| Power Good (PG), FAULT indicator | FAULT |
| Reverse current blocking | Yes |
| Reverse voltage detection | Yes |
| Over Current Protection (OCP) | Adjustable |
| Over Current Protection Setting Range Channel 1 | 0.65 - 4.08 |
| Short Circuit Protection | Yes |
| Over Temperature Protection (OTP) | Yes |
| Current Monitor Output | No |
| Internal TVS Surge Protection | No |
| Temp. Range (°C) | -20 to +85°C |
封装选项
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) |
|---|---|---|
| FC-QFN-12 | 2.0 x 2.5 mm | 12 |
应用
- Power-rail switchover
- Consumer electronics
- Smart home appliances
- Computing and networking
- Portable devices
