特性
- Optimized for all high-side 3V to 5V power-rail control applications in single Li-ion powered devices, set-top boxes, tablet PCs, hard-disk/solid-state drives, and PCI/PCIe cards
- 19mΩ RDSON
- Maximum continuous FET current: 2A
- Supply voltage: 2.5V ≤ VDD ≤ 5.5V
- Wide input voltage range: 0.85V ≤ VD ≤ Up to VDD
- Capacitor-adjustable VS slew-rate control
- Thermal shutdown protection
- Other options available:
- Fast VS discharge
- Fixed VS slew rate
- Package: STDFN-6 (1.0mm x 1.4mm x 0.55mm)
描述

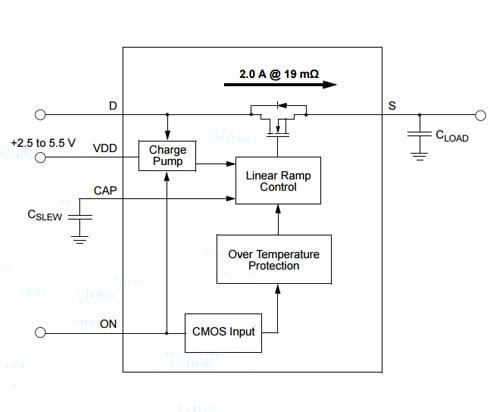

The SLG59M1618V is a 1.4mm², 19mΩ integrated power switch with VS slew-rate control and thermal protection. This 19mΩ 2.0A single-channel load switch is able to switch 0.85V to 5V power rails and is packaged in an ultra-small 1.0mm x 1.4mm package.
应用
- Notebook power rail switching
- Tablet power rail switching
- Smartphone power rail switching
