描述

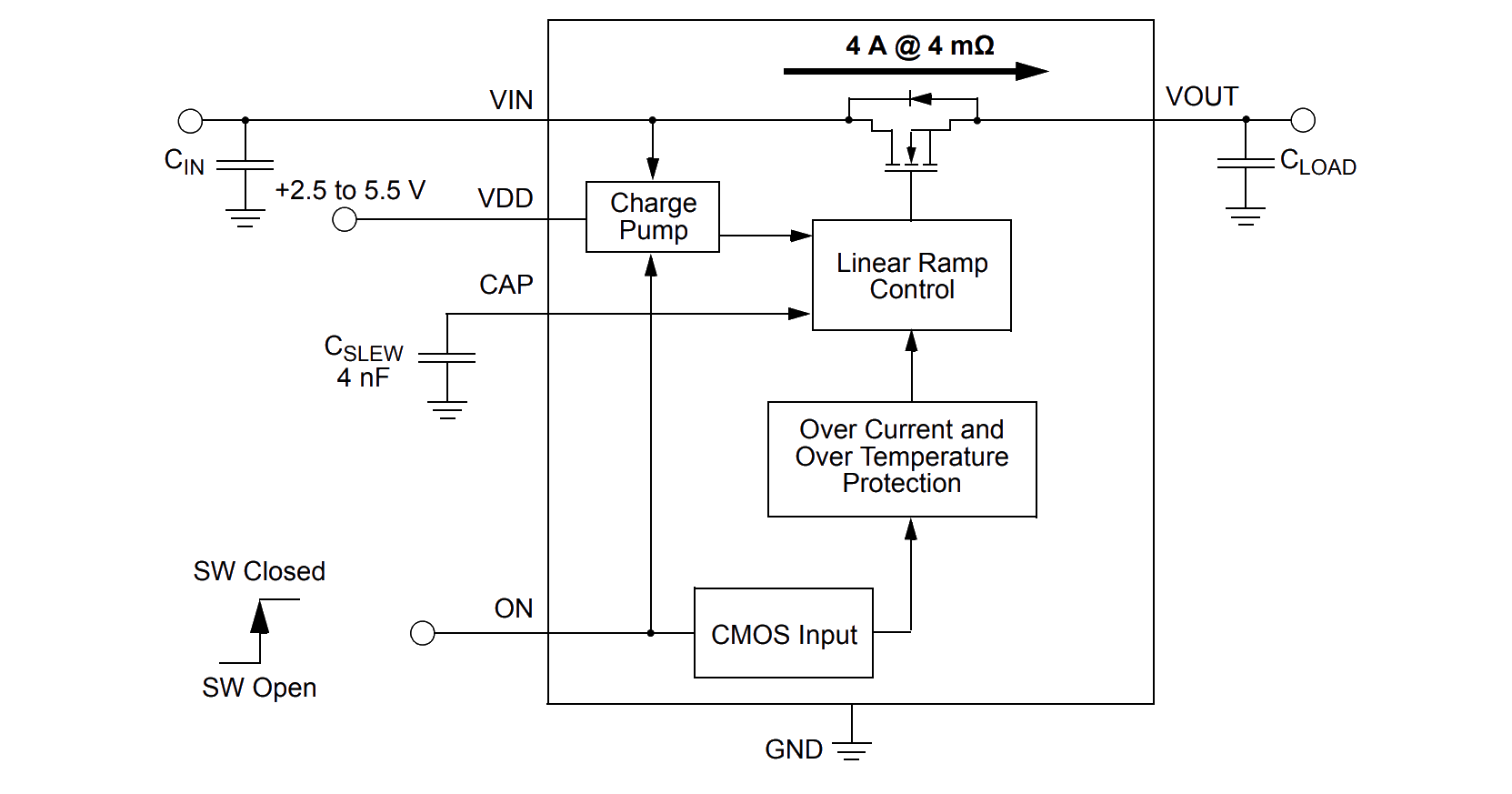

Operating from a 2.5V to 5.5V power supply and fully specified over the -40 °C to 85 °C temperature range, the SLG59M1709V is a high-performance 4mΩ, 4A single-channel nFET load switch with adjustable inrush current control which is achieved by adjusting the VOUT slew rate with an external capacitor. Using a proprietary MOSFET design, the SLG59M1709V achieves a stable 4mΩ RDSON across a wide input/supply voltage range. Incorporating two-stage current protection as well as thermal protection, the SLG59M1709V is designed for all 0.8V to 5.5V power rail applications. Using Renesas' proprietary CuFET™ technology for high-current operation, the SLG59M1709V is packaged in a space-efficient, low thermal resistance, RoHS-compliant 1.6mm x 2.5mm STQFN package.
特性
- Optimized for all high-side power-rail control applications in adapter-powered devices, set-top boxes, tablet PCs, hard-disk and solid-state drives, and PCI/PCIe cards
- 4mΩ RDSON
- Maximum continuous FET current: 4A
- Supply voltage: 2.5V ≤ VDD ≤ 5.5V
- Wide input voltage range: 0.8V ≤ VIN ≤ VDD
- Capacitor-adjustable VOUT slew-rate control
- Two-stage overcurrent protection:
- Fixed-threshold, 8A active current limit
- Fixed 0.5A short-circuit current limit
- Thermal shutdown protection
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 602 KB | |
| 宣传手册 | PDF 5.05 MB 日本語 | |
| 指南 | PDF 2.77 MB 日本語 | |
| 应用说明 | PDF 364 KB | |
| 其他 | PDF 380 KB | |
| 应用说明 | PDF 847 KB | |
6 项目
|
||
设计和开发
软件与工具
开发板与套件
评估
SLG59M1709V Evaluation Board
The SLG59M1709V-EVB board evaluates the SLG59M1709V GreenFET, Single N-Channel, Load Switch.
For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
