封装信息
| CAD 模型: | View CAD Model |

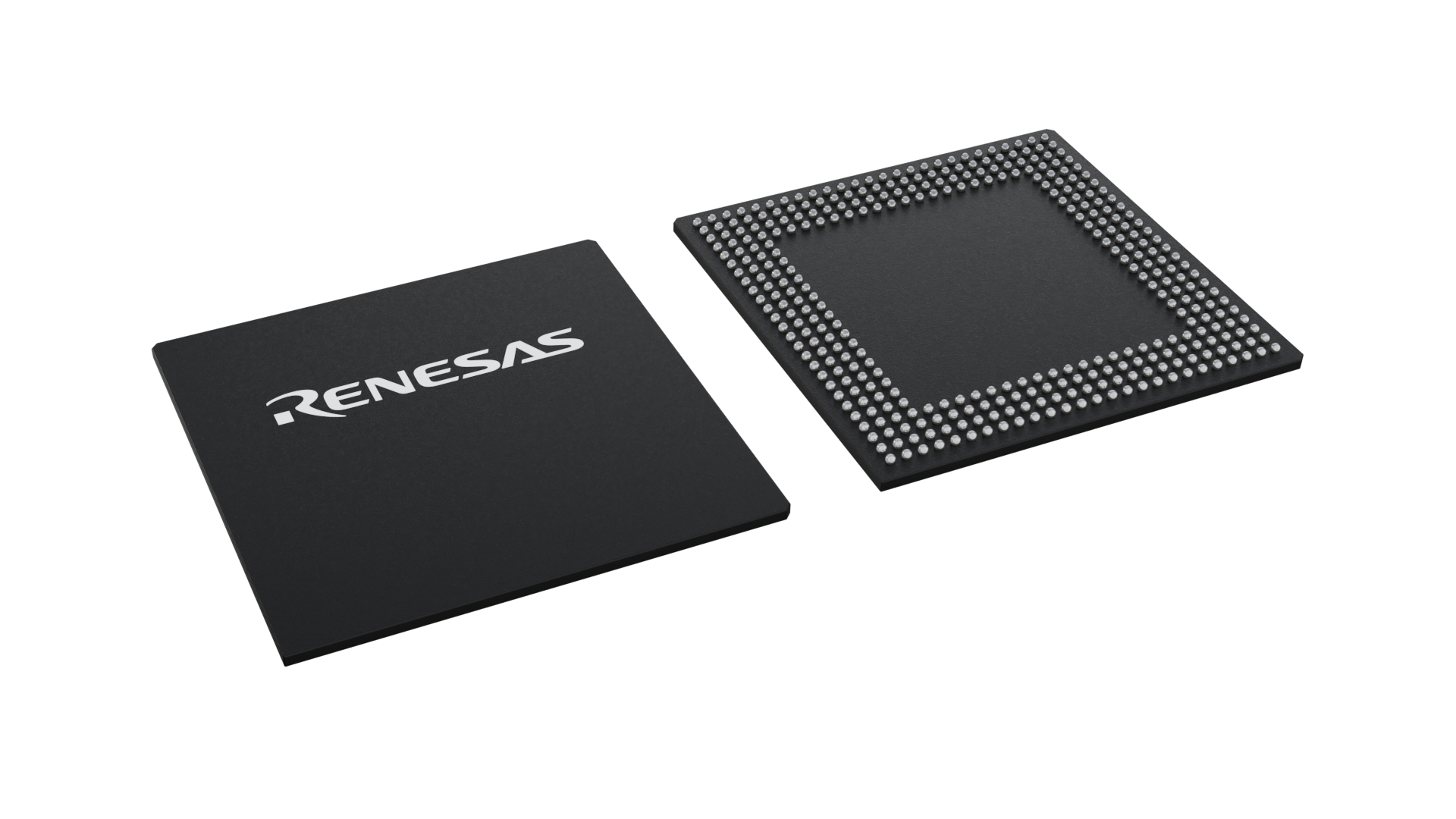

| Pkg. Type: | SBGA |
| Pkg. Code: | BS352 |
| Lead Count (#): | 352 |
| Pkg. Dimensions (mm): | 35.0 x 35.0 x 1.7 |
| Pitch (mm): | 1.27 |
环境和出口类别
| Pb (Lead) Free | No |
| Moisture Sensitivity Level (MSL) | 3 |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | SBGA |
| Lead Count (#) | 352 |
| Pb (Lead) Free | No |
| Carrier Type | Tray |
| Length (mm) | 35 |
| MOQ | 24 |
| Moisture Sensitivity Level (MSL) | 3 |
| Package Area (mm²) | 1225 |
| Pb Free Category | e0 |
| Pitch (mm) | 1.27 |
| Pkg. Dimensions (mm) | 35.0 x 35.0 x 1.7 |
| Price (USD) | $117.2 |
| Primary PCI Bus | 64-bit PCI 33/66MHz |
| Qty. per Carrier (#) | 24 |
| Qty. per Reel (#) | 0 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Secondary Bus | 8-bit HyperTransport 400MHz |
| Tape & Reel | No |
| Temp. Range (°C) | 0 to 70°C |
| Thickness (mm) | 1.7 |
| Width (mm) | 35 |
| 已发布 | No |
有关 TSI301 的资源
描述
Provides protocol bridging between HyperTransport (400 MHz, 8-bit) to PCI operating up to 66 MHz.
