描述

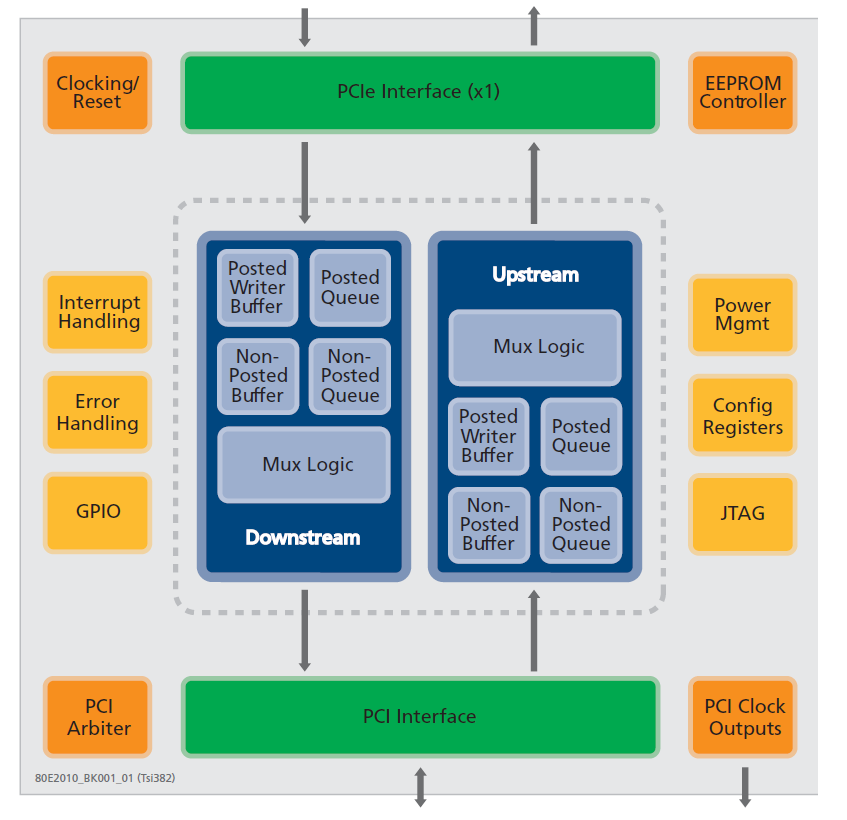

The Tsi382 provides a high performance, small footprint bridge from single lane PCI Express to 32 bit PCI. The device's PCI interface can operate up to 66 MHz. Three types of addressing modes are supported; transparent, opaque and non-transparent, giving designers flexibility.
特性
- PCI Express (x1) to PCI forward bridge
- Superior performance, low latency
- Clock and arbitration pins for up to 4 PCI devices
- Non-transparent bridging support
- Smallest form factor 10x10mm BGA package
- 20x20mm LQFP package option
产品对比
应用
设计和开发
软件与工具
开发板与套件
评估
Tsi382-RDK1
过时
Evaluation Board SDK for the Tsi382
The IDT Tsi382 evaluation board is ideal for evaluating and prototyping the Tsi382 PCIe-to-PCI bridge. The Tsi382 evaluation board is an extended height x1 PCIe card that is designed to fit into a standard PCIe slot on a PC motherboard, or interconnect with other cards equipped with a standard...
