封装信息
| CAD 模型: | View CAD Model |
| Pkg. Type: | LBGA |
| Pkg. Code: | VFF |
| Lead Count (#): | 409 |
| Pkg. Dimensions (mm): | 17.98 x 17.98 x 0.00 |
| Pitch (mm): | 0.8 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | LBGA |
| Carrier Type | Tray |
| MOQ | 84 |
| Function | Display MUX |
| Lead Count (#) | 409 |
| Length (mm) | 18 |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free Ball Terminal (SAC105)-e8 |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 18.0 x 18.0 x 0.00 |
| Qualification Level | Standard |
| Temp. Range (°C) | 0 to +70°C |
| Width (mm) | 18 |
有关 TW2828 的资源
描述

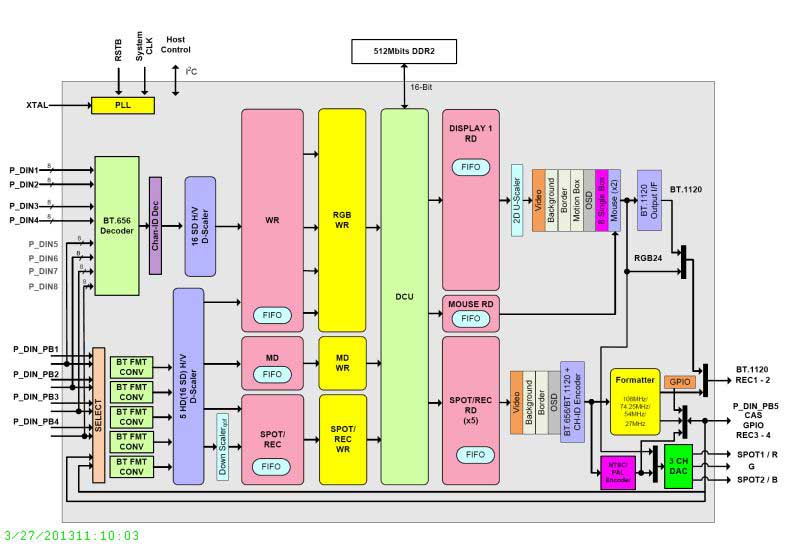

TW2828 is a display and recording MUX chip with HD SPOT capability designed to work with popular H. 264 CODEC on the market today. TW2828 provides a clean and cost effective MUX solution to the multi-channel PC HD DVR marketplace. On the embedded DVR market, using TW2828 in conjunction with a host SOC can deliver the most cost effective solution on the market.
